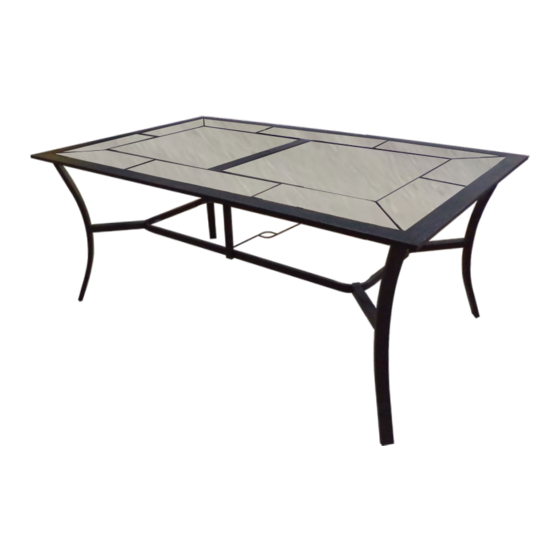

Backyard Creations 17S7678C Assembly Instructions

ASSEMBLY INSTRUCTIONS
ATTENTION: THIS PRODUCT IS NOT FOR COMMERCIAL USE INTENDED FOR RESIDENTIAL USE ONLY.

PARTS LIST

PART
MATERIAL CODE
NO.
1
TCS67SE-CS05-1
2
TCS65SE-CS04-1
3
TCS67SE-CS04-2
4
TCS67SE-CS06-1
5
13C??7G1200A001
6
13C??7G1200A002
7
13C??7G1300A001

Tools

Ⅱ
Ⅰ
Note:
The tiles are easy to be broken, be careful when you remove
them.
Attention:
Make sure that each bolt needed for all steps matches the
corresponding figure to ensure proper assembly.
! Use the correct bolts as indicated. Do not tighten any of the bolts until the table is completely assembled.
! Do not sit or stand on this table.
A weighted umbrella base must be used when using an umbrella with this table.
!
!
Do not discard of any of the packaging until you have checked that you have all of the parts and
fittings required.
Keep children away during assembly. This item contains small parts that can be swallowed by
!
children. Children should always be under direct adult supervision while using this product.
! Retain these assembly instructions for future reference.
!
Quote the following FQC NO. when contacting the service center.
E-319
SKU#2724626 /
PART
TABLE TOP
LEG
SUPPORT
CENTER CONNECTOR WITH RING
TILE A 299*448*148.5*10
TILE B 299*448*148.5*10
TILE C 324*473*148.5*10
SERVICE CENTER TOLL FREE NO.
TEL: 1-877-539-7436
FAX: 1-877-539-7439
MODEL#17S7678C（TCS67SE）
PART
Q'TY MATERIAL CODE
NO.
8
1
13C??7G1300A002
9
4
13C??1B0200A001
10
2
13C??2CF100A001
11
1
17C33A0706001YX
2
12
17C33A0709001YX
13
2
17C33A0710001YX
14
2
17FA05040301-YX
0 mm
10 20 30
FIGURE 1
PARTS REQUIRED: 1, 2, 3, 11, 12, & 14
Keep the bolts loose.
2
12
14
PAGE 1 OF 2
TILE D 324*473*148.5*10
TILE E 600*600*10
TILE F 600*148.5*10
BOLT M6*15
BOLT M6*25
BOLT M6*30
WASHER d6.5*D13*1.0
50
40 60 70
2
2
3
3
1
COURTYARD CREATIONS INC.
PART Q'TY
2
2
2
16
2
2
20
100
80 90
2
11
11
14
14
