Summary of Contents for Foamit SP-5N

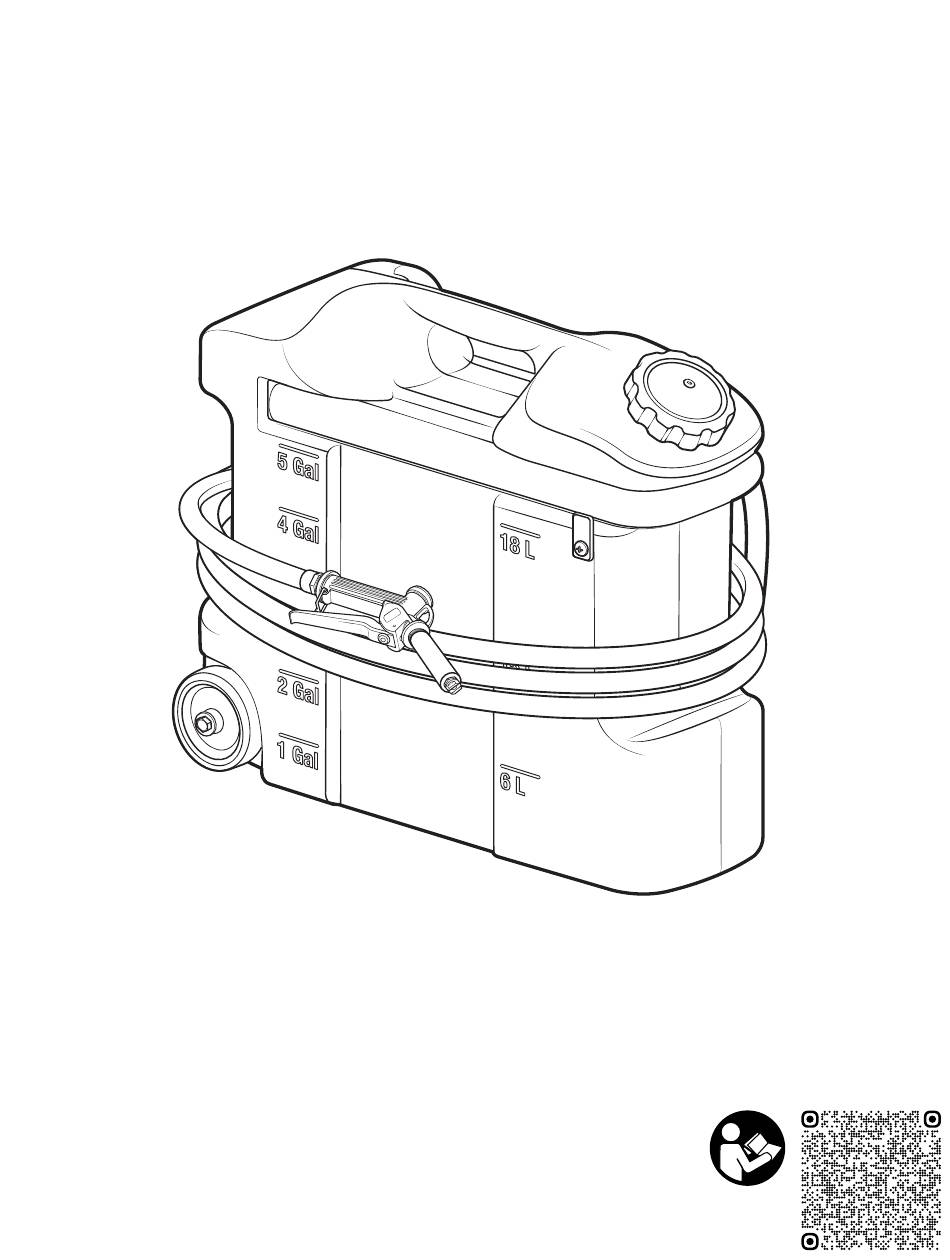

- Page 1 5 Gallon Spray Unit Service Manual SP-5N READ ALL INSTRUCTIONS BEFORE USING OR SERVICING THIS UNIT. KEEP THIS MANUAL IN A LOCATION THAT IS READILY AVAILABLE TO USERS AND SERVICE TECHNICIANS. Scan this code for English (Original Instructions) service manual...
- Page 2 Always flush the unit with fresh water thoroughly when switching from an alkaline to an acid or an acid to an alkaline. Model: SP-5N V20240503 • Page 2 of 11...
-
Page 3: Protect The Environment
• Crescent wrench (2x) • #2 Phillips head screwdriver • ⁷/16 in. (11 mm) open-ended wrench • #3 Phillips head screwdriver • Flat head screwdriver • Hose cutters • Thread seal tape • Knife Model: SP-5N V20240503 • Page 3 of 11... - Page 4 50 psi (3.4 bar). If the air gauge reads more or less than 50 psi (3.4 bar), adjust the pressure by turning the knob on the top of the air regulator. Model: SP-5N V20240503 • Page 4 of 11...
-
Page 5: Tank Assembly
Wheel - polypro - for CST5SS and 9 CST5-WHL CST5SS-L Flat washer for 3/8-16 bolt - 10 FW3816 stainless - 0.41 in. id x 0.88 in. od x 0.05 in. thk CSTA-5WHL Model: SP-5N V20240503 • Page 5 of 11... -
Page 6: Back Plate Assembly
7 STR38-IL gasket - 20 mesh SS - black bowl Stainless screw band clamp for 8 SSC38 ⅜ in. hose ⅜ in. blue hose - hybrid TPE - 9 H38BL-F available per ft. Model: SP-5N V20240503 • Page 6 of 11... - Page 7 Stainless steel union - ¼ in. FPT Water separator - 20 CFM - ¼ in. FPT 8 WS-20CFM ports Air fitting ¼ MPT x plug - nickel-plated 9 AP14 brass WSA-20CFM* *Optional assembly sold separately Model: SP-5N V20240503 • Page 7 of 11...
- Page 8 Bulkhead adapter - stainless - ¼ NPT 8 SSA14BKH x ¼ NPSM 9 SSSFN12 Serrated flange nut - stainless - ½ in. Air fitting ¼ MPT x plug - nickel- 10 AP14 plated brass RGA-R25-PSP Model: SP-5N V20240503 • Page 8 of 11...
- Page 9 Stainless screw band clamp for ⅜ in. 3 SSC38 hose ⅜ in. blue hose - hybrid TPE - available 4 H38BL-F per ft. 5 HBSS1238 Stainless hose barb ½ MPT x ⅜ barb SCTNA-PF-TNK5 Model: SP-5N V20240503 • Page 9 of 11...
-
Page 10: Hose Assembly
Screw band clamp for 3/8 in. hose - 2 SSC38 stainless 3/8 in. blue* hose - hybrid TPE - available 3 H38BL-F per ft. * Additional colors available, see datasheet for options. HA38BL-20 Model: SP-5N V20240503 • Page 10 of 11... -
Page 11: Wand Assembly
- gray handle with red clip - 3 PSG12 316SS internal spring - includes 2x o-ring 4 HBSS1238 Stainless hose barb ½ MPT x 3/8 barb Stainless screw band clamp for 3/8 in. 5 SSC38 hose PSGA384-ST Model: SP-5N V20240503 • Page 11 of 11...
