Foamit SP-BP-5N Service Manual

5 gallon battery powered spray unit
Hide thumbs Also See for SP-BP-5N:

Advertisement

Table of Contents

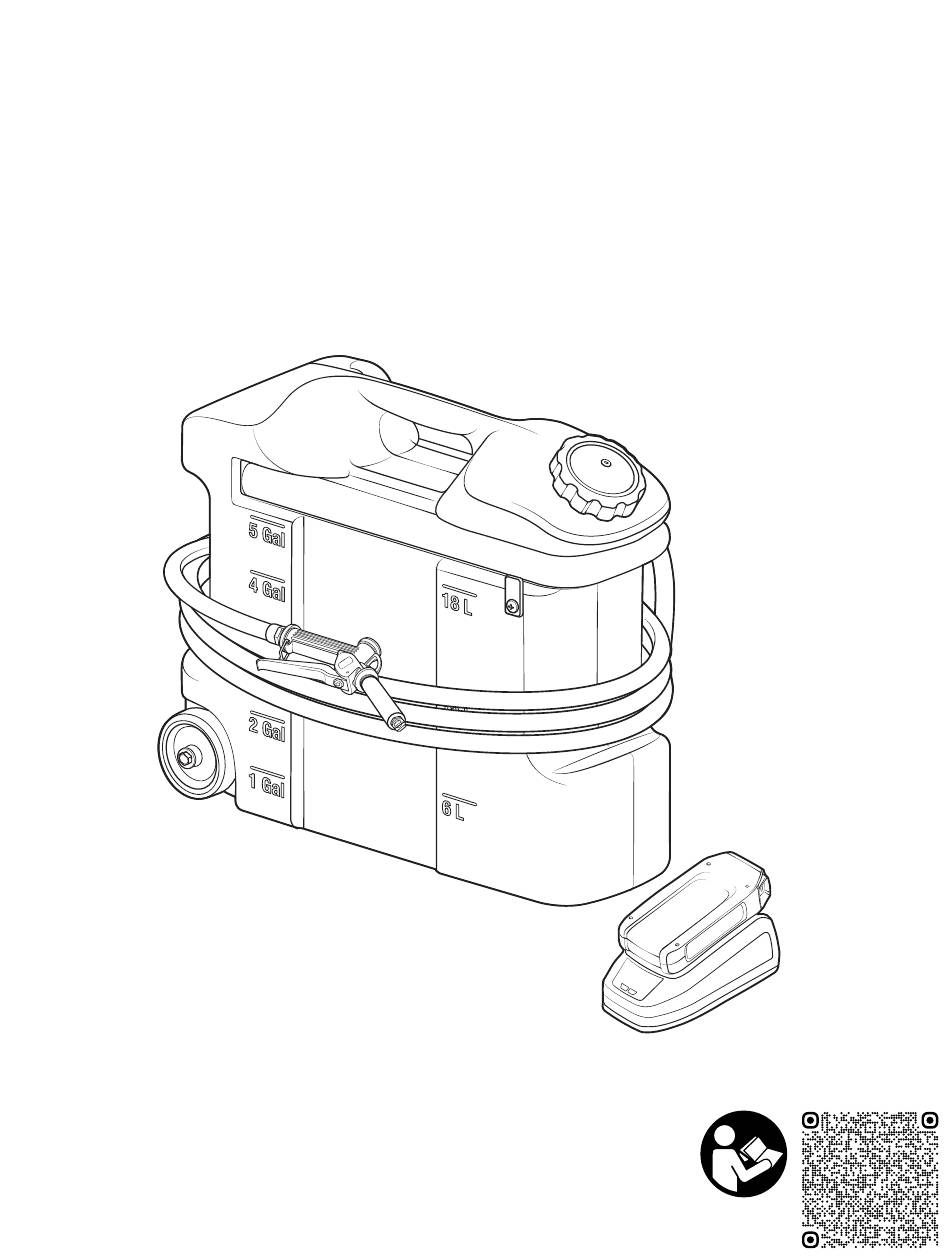

5 Gallon Battery Powered
Spray Unit
Service Manual
SP-BP-5N
READ ALL INSTRUCTIONS BEFORE USING OR
SERVICING THIS UNIT. KEEP THIS MANUAL IN A
LOCATION THAT IS READILY AVAILABLE TO USERS
AND SERVICE TECHNICIANS.
English (Original Instructions)
Scan this code for
service manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SP-BP-5N and is the answer not in the manual?

Questions and answers

Related Manuals for Foamit SP-BP-5N

Summary of Contents for Foamit SP-BP-5N

  • Page 1 5 Gallon Battery Powered Spray Unit Service Manual SP-BP-5N READ ALL INSTRUCTIONS BEFORE USING OR SERVICING THIS UNIT. KEEP THIS MANUAL IN A LOCATION THAT IS READILY AVAILABLE TO USERS AND SERVICE TECHNICIANS. Scan this code for English (Original Instructions)
  • Page 2 When not in use, store unit indoors in a cool, dry location. Keep unit away from unauthorized users. To prevent premature battery failure, do not store battery in a depleted state for long periods of time. Model: SP-BP-5N V20240604 • Page 2 of 12...
  • Page 3 Protect the Environment Please dispose of packaging materials, old machine components, and hazardous fluids in an environmentally safe way according to local waste disposal regulations Model: SP-BP-5N V20240604 • Page 3 of 12...
  • Page 4 • Crescent wrench (2x) • #2 Phillips head screwdriver • 1/ 4 in. (7 mm) hex bit • #3 Phillips head screwdriver • Flat head screwdriver • Hose cutters • Thread seal tape • Knife Model: SP-BP-5N V20240604 • Page 4 of 12...
  • Page 5 • A faulty pump or compressor may need to be replaced. Battery/charger fault light is • Refer to the separate manuals supplied with the battery and charger for more flashing information regarding indicator and fault lights. Model: SP-BP-5N V20240604 • Page 5 of 12...

  • Page 6: Tank Assembly

    Wheel - polypro - for CST5SS and 9 CST5-WHL CST5SS-L Flat washer for 3/8-16 bolt - 10 FW3816 stainless - 0.41 in. id x 0.88 in. od x 0.05 in. thk CSTA-5WHL Model: SP-BP-5N V20240604 • Page 6 of 12...

  • Page 7: Back Plate Assembly

    Molex connector In-line strainer - ⅜ barb - EPDM 9 STR38-IL gasket - 20 mesh SS - black bowl ⅜ in. blue hose - hybrid TPE - 10 H38BL-F available per ft. Model: SP-BP-5N V20240604 • Page 7 of 12...
  • Page 8 Lithium ion battery - 24V 4Ah Lithium ion battery charger - 8 BLI-24V-CHRGR 24V - includes NA power cord Note: Refer to battery and charger user manuals for more information. *not included with backplate assembly Model: SP-BP-5N V20240604 • Page 8 of 12...
  • Page 9 Pressure switch - 1/ 4 quick fit - 2 PS14QFV-55 55 psi - Viton membrane Quick fit - 1/ 4 MPT x 1/ 4 od tube - 3 QF14P polypropylene PSHA-BP Model: SP-BP-5N V20240604 • Page 9 of 12...
  • Page 10 In-line strainer - ⅜ barb - EPDM 2 STR38-IL gasket - 20 mesh SS - black bowl Stainless screw band clamp for 3 SSC38 ⅜ in. hose 4 HBSS1238 Stainless hose barb ½ MPT x ⅜ barb SCTNA-PF-BP-TNK5 Model: SP-BP-5N V20240604 • Page 10 of 12...

  • Page 11: Hose Assembly

    2 SSC38 Stainless screw band clamp for 3/8 in. hose 3/8 in. blue* hose - hybrid TPE - available 3 H38BL-F per ft. * Additional colors available, see datasheet for options. HA38BL-12 Model: SP-BP-5N V20240604 • Page 11 of 12...

  • Page 12: Wand Assembly

    - gray handle with red clip - 3 PSG12 316SS internal spring - includes 2x o-ring 4 HBSS1238 Stainless hose barb ½ MPT x 3/8 barb Screw band clamp for 3/8 in. hose - 5 SSC38 stainless PSGA384-ST2510 Model: SP-BP-5N V20240604 • Page 12 of 12...
