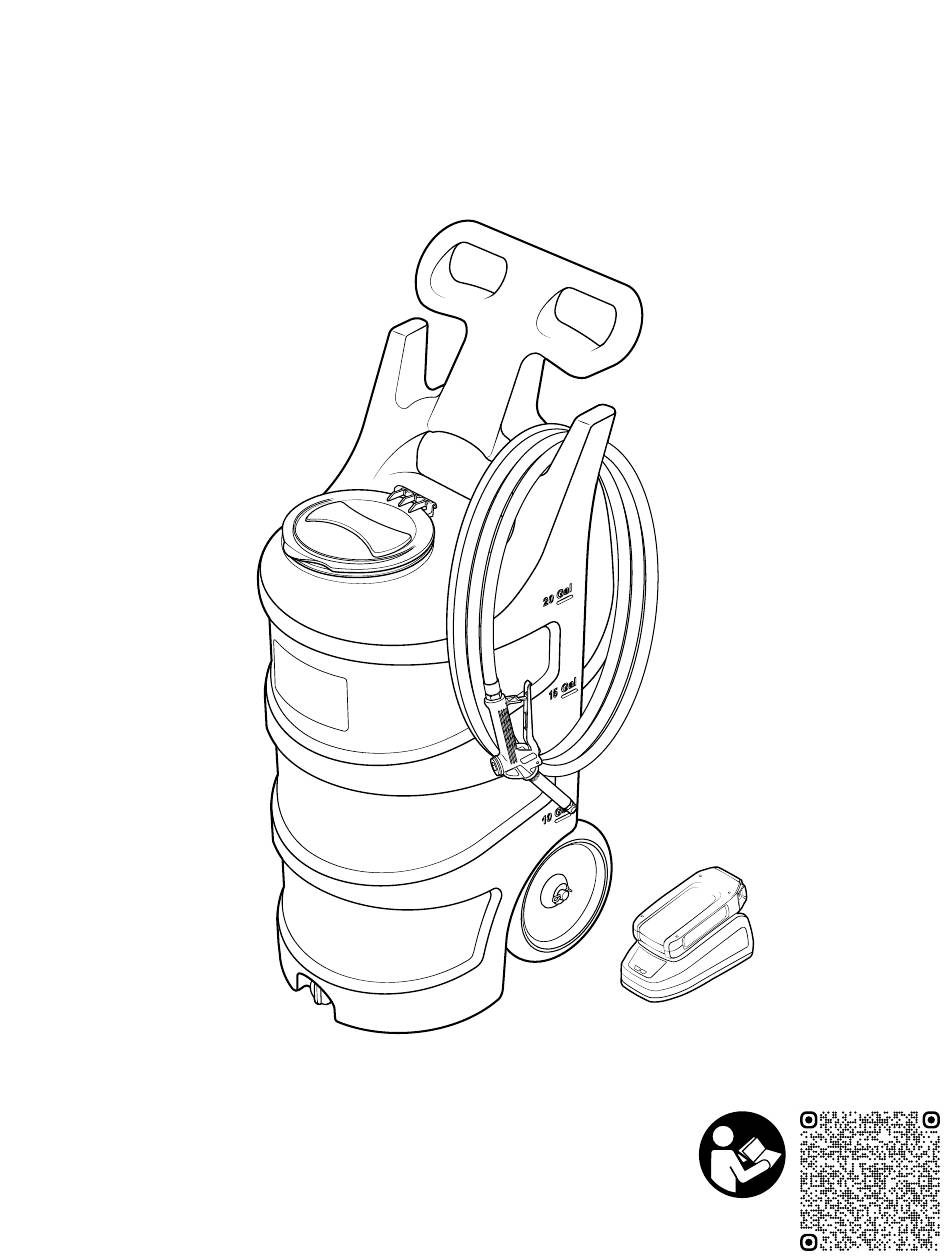

- Page 1 20 Gallon Battery Powered Spray Unit Service Manual SP-BP-20N READ ALL INSTRUCTIONS BEFORE USING OR SERVICING THIS UNIT. KEEP THIS MANUAL IN A LOCATION THAT IS READILY AVAILABLE TO USERS AND SERVICE TECHNICIANS. Scan this code for English (Original Instructions)
- Page 2 Store unit and battery indoors in a cool, dry location between 32°-77°F (0°-25°C) and < 75% relative humidity. Do not store below 32°F (0°C) or above 122°F (50°C). To prevent premature battery failure, do not store battery in depleted state for long periods of time. Model: SP-BP-20N V20240808 • Page 2 of 13...
- Page 3 Protect the Environment Please dispose of packaging materials, old machine components, and hazardous fluids in an environmentally safe way according to local waste disposal regulations. Manufactured by: FOAMit 3833 Soundtech Ct. SE Grand Rapids, MI 49512 US Model: SP-BP-20N V20240808 • Page 3 of 13...
- Page 4 • Crescent wrench (2x) • #2 Phillips head screwdriver • 1/ 4 in. (7 mm) hex bit • #3 Phillips head screwdriver • Flat head screwdriver • Hose cutters • Thread seal tape • Knife Model: SP-BP-20N V20240808 • Page 4 of 13...
- Page 5 • A faulty pump or compressor may need to be replaced. Battery/charger fault light is • Refer to the separate manuals supplied with the battery and charger for more flashing information regarding indicator and fault lights. Model: SP-BP-20N V20240808 • Page 5 of 13...
-
Page 6: Tank Assembly
* Additional colors available, see datasheet for options. Item number Description 5 TNK-20N Tank - 20 gallon natural - portable Drain plug assembly for portable 6 DPA units - includes gasket Model: SP-BP-20N V20240808 • Page 6 of 13... - Page 7 Wheel - 10 in. - non-marking Flat washer for 5/8 in. od pipe or axle - 12 FW58 stainless steel - 0.64 in. id x 1.2 in. od x 0.05 in. thk WHLA-AXL15 Model: SP-BP-20N V20240808 • Page 7 of 13...
-
Page 8: Back Plate Assembly
Molex connector In-line strainer - ⅜ barb - EPDM 9 STR38-IL gasket - 20 mesh SS - black bowl ⅜ in. blue hose - hybrid TPE - 10 H38BL-F available per ft. Model: SP-BP-20N V20240808 • Page 8 of 13... - Page 9 Lithium ion battery - 24V 4Ah Lithium ion battery charger - 8 BLI-24V-CHRGR 24V - includes NA power cord Note: Refer to battery and charger user manuals for more information. *not included with backplate assembly Model: SP-BP-20N V20240808 • Page 9 of 13...
- Page 10 Pressure switch - 1/ 4 quick fit - 2 PS14QFV-55 55 psi - Viton membrane Quick fit - 1/ 4 MPT x 1/ 4 od tube - 3 QF14P polypropylene PSHA-BP Model: SP-BP-20N V20240808 • Page 10 of 13...
- Page 11 4 HBSSEL1438 barb elbow Hex head poly bushing ¾ MPT 5 HHPB3414 x ¼ FPT Ball valve - PVC - 3/ 4 NPT to 3/ 4 FNPT 6 BVPVC34MF EPDM seal SCTNA-PF-BP Model: SP-BP-20N V20240808 • Page 11 of 13...
-
Page 12: Hose Assembly
2 SSC38 Stainless screw band clamp for 3/8 in. hose 3/8 in. blue* hose - hybrid TPE - available 3 H38BL-F per ft. * Additional colors available, see datasheet for options. HA38BL-12 Model: SP-BP-20N V20240808 • Page 12 of 13... -
Page 13: Wand Assembly
- gray handle with red clip - 3 PSG12 316SS internal spring - includes 2x o-ring 4 HBSS1238 Stainless hose barb ½ MPT x 3/8 barb Screw band clamp for 3/8 in. hose - 5 SSC38 stainless PSGA384-ST2510 Model: SP-BP-20N V20240808 • Page 13 of 13...
