Table of Contents

E.L. - 9/11/2015
Thank you for purchasing from DHP!
DO NOT RETURN TO THE STORE !
If parts are missing or damaged, we will gladly ship your
replacement parts free of charge.
Visit www.dhpfurniture.com/eng/support-home
or call Toll-Free 1-800-267-1739
Date of Purchase
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY
INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.
4066039W
Kelsey

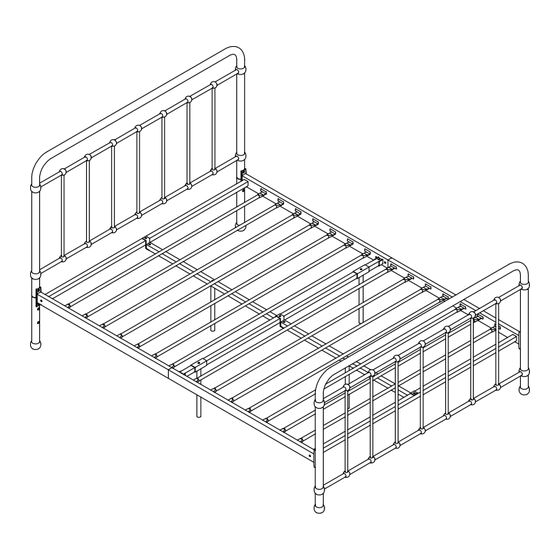

Full Metal Bed
Lot Number
B344066039W00-10125-M
Black
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Kelsey 4066039W and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Better Homes and Gardens Kelsey 4066039W

Summary of Contents for Better Homes and Gardens Kelsey 4066039W

  • Page 1 4066039W Kelsey Full Metal Bed Black Thank you for purchasing from DHP! DO NOT RETURN TO THE STORE ! If parts are missing or damaged, we will gladly ship your replacement parts free of charge. Visit www.dhpfurniture.com/eng/support-home or call Toll-Free 1-800-267-1739 Date of Purchase Lot Number THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY...

  • Page 2: Warranty Information

    Warranty Information Read Before Beginning Assembly DHP warrants this product to be free from defects in material and workmanship and agrees to remedy any such defect. This warranty covers one year from the date of original purchase. This is solely limited to the repair or replacement of defective 2 (however it is always better parts and assembly labor is not included.
  • Page 3 B344066039W00...
  • Page 4 Parts Replacement Parts, visit www.dhpfurniture.com/eng/support-home All in 1 big box! There are inner box(es) that include components required to complete this assembly. Before you throw the package, please use the Post Headboard Footboard Side Rail 01 Side Rail 02 Check Box to identify the parts and ensure that T923890 T924240 T924250...

  • Page 5: Hardware Pack

    Hardware Pack Hardware Pack #: T4066039W-00 1/4" X 3/4" 5/16"X 3/4" X 12 X 16 1/4" X 1 3/8" 1/4" X 1 3/4" Hardware Note: Please do not completely tighten all the hardware, until the entire assembly is completed, unless otherwise indicated in the step-by-step instructions.
  • Page 6 Step 1 Insert (A) into (C) with BOLTS 2. B344066039W00...
  • Page 7 Step 2 Slide (F) into (E), secure with BOLTS 2. B344066039W00...
  • Page 8 Step 3 This bed offers you 2 options for the height Wide side of the slot should of the bed foundation. From Step 3 to Step be facing up ! 7 will show you how to assemble the bed foundation in the higher position. Attach sub-assembly (E &...
  • Page 9 Step 4 4.1 Attach (H x 2) to (E) & (F) with BOLT 4; 4.2 Attach (M X 2) to (G) with BOLT 2; 4.3 Attach (G) to (E) with BOLT 3 and NUT B344066039W00...
  • Page 10 Step 5 5.1 Attach (K) to (G) with BOLT 3 and NUT 5.2 Attach (J) x 2 to (H) with BOLT 3 and NUT 5. B344066039W00...
  • Page 11 Step 6 6.1 Attach (L X 2) to (I X 2) with BOLT 2; 6.2 Attach one end of both (I) to (K) with BOLTS 3 and NUT 5. 6.3 Attach the other end of (I) to (J) with BOLTS 3 and NUT 5. B344066039W00...
  • Page 12 Step 7 Insert (P) into (E & F) as illustrated, then lock (P) into place with (Y). B344066039W00...
  • Page 13 Step 8 Please Note: Wide side of the slot should be facing up ! From Step 8 to Step 12 will show you how to assemble the bed foundation in the lower position. Attach sub-assembly (E & F) x 2 from STEP TWO to (A,D)with BOLTS 1.
  • Page 14 Step 9 9.1 Attach (H x 2) to (E) & (F) with BOLT 4; 9.2 Attach (N X 2) to (G) with BOLT 2; 9.3 Attach (G) to (E) with BOLT 3 and NUT B344066039W00...
  • Page 15 Step 10 10.1 Attach (K) to (G) with BOLT 3 and NUT 10.1 10.2 Attach (J) x 2 to (H) X 2 with BOLT 3 and NUT 5. 10.2 B344066039W00...
  • Page 16 Step 11 11.1 Attach (Z X 2) to (I X 2) with BOLT 2; 11.2 Attach one end of both (I) to (K) with BOLTS 3 and NUT 5. 11.3 Attach the other end of (I) to (J) with BOLTS 3 and NUT 5. 11.1 11.2 11.3...
  • Page 17 Step 12 Insert (P) into (E & F) as illustrated, lock (P) into place with (Y). B344066039W00...

  • Page 18: Helpful Hints

    Helpful Hints Helpful Hints Weight Limit: 450 Lb / 204 Kg people lifting and carrying the unit to its new location. reassembled to move. item. They are illustred on this page and available for replacement. WARNINGS: For safety reasons and to prevent injuries: years and older.
  • Page 19 NO LO REGRESE A LA TIENDA ! 4066039W Kelsey mucho gusto le enviaremos sus piezas de reemplazo sin cargo extra. Full Metal Bed Visite www.dhpfurniture.com /spa/support-home o Llame gratis al 1-800-267-1739 Negro Fecha de compra ESTE INSTRUCTIVO CONTIENE INFORMACION IMPORTANTE DE SEGURIDAD.
  • Page 20 Lea antes de comenzar a ensamblar Partes Piezas de reemplazo, visite www.dhpfurniture.com/spa/support-home Todo se incluye en 1 caja grande! (sin embargo es recomendable contar con ayuda adicional). Tiempo estimado de Hay 1 caja(s) interna(s) que incluyen los componentes necesarios para ensamble es 2 horas.
  • Page 21 Instrucciones Paso 1 Paso 9 Insertar (A) dentro de (C) usando los TORNILLOS 2. 9.1 Una la parte (H x 2) con (E, F) con Tornillos 4. 9.2 Una la parte (N x 2) con (G) Tornillos 2. Paso 2 9.3 Una la parte (G) con (E) con Tornillos 3 y Tuerca 5.

  • Page 22: Garantie

    NE RETOURNEZ PAS AU MAGASIN ! 4066039W Kelsey gratuitement. Full Metal Bed Visitez www.dhpfurniture.com/fre/support-home ou appelez au 1-800-267-1739 Noir Date d'achat Numero de lot IMPORTANTES. Garantie Enregistrez votre produit et participez pour gagner! notre concours trimestriel avec la chance de gagner des prix incroyables. Avantages: pour enregistrer votre produit et vous obtiendrez: Des informations exclusives sur les nouveaux produits...

  • Page 23: Avant De Commencer L'assemblage

    Avant de commencer l'assemblage www.dhpfurniture/fre/support-home plancher et le produit. 2 (cependant il vaut l'assemblage. est de 2 heures. Jambes-T923890 lors de l'assemblage. Pied de Lit-T924250 Entretoise 1-T933430 commercial. Entretoise 2-T924270 Entretoise 3-T923940 Lamelles-T919610 enfants. Support 1-T923990 Support 2-T924000 Pied 2-T931110 Pied 4-T933400 Pied 1-T931630 Pied 3-T933440...

  • Page 24: Conseils Utiles

    Instructions Glisser (F) dans (E), fixez avec les BOULONS 2. Ce lit vous offre deux options pour la hauteur du sommier de lit. Les instructions suivantes vous montreront comment assembler le sommier de lit dans la position sommier de lit dans la position plus basse. BOULONS 1.
