Electrical Connector - PCB Piezotronics IMI SENSORS EX621C40 Assembly Instructions Manual

PCB Piezotronics Inc. claims proprietary rights in
the information disclosed hereon. Neither it nor any
reproduction thereof will be disclosed to others
without the written consent of PCB Piezotronics Inc.
B
A
1 M3x.5-6g FOR SENSOR WITH METRIC OPTION
UNLESS OTHERWISE SPECIFIED TOLERANCES ARE:
DIMENSIONS IN INCHES
DECIMALS XX ±.03
XXX ±.010
ANGLES  2 DEGREES
CABLE TOLERANCES IN ENGLISH
1"≤ LENGTH < 1' = +1"/ - 0
1'≤ LENGTH < 5' = +2"/ - 0
5'≤ LENGTH < 100' = +6"/ - 0
100'≤ LENGTH = +1'/ - 0
FILLETS AND RADII
.003 - .005
2
.438 [11.11] HEX
.847 [21.51]
.10 [2.5]
DIMENSIONS IN MILLIMETERS
[ IN BRACKETS ]
DECIMALS X ± 0.8
XX ± 0.25
TITLE
ANGLES  2 DEGREES
CABLE TOLERANCES IN METRIC
2.54cm ≤ LENGTH < 30.5cm = +2.54cm/ - 0
30.5cm ≤ LENGTH < 1.5m = +5.1cm/ - 0
1.5m ≤ LENGTH < 30.5m = +15.2cm/ - 0
30.5m ≤ LENGTH = +30.5cm/ - 0
FILLETS AND RADII
0.07 - 0.13
2
REV
A

ELECTRICAL CONNECTOR

5-44 UNS - 2A
5-40 UNC - 2A
DRAWN CHECKED
08/12/22 08/12/22
NJF JDM

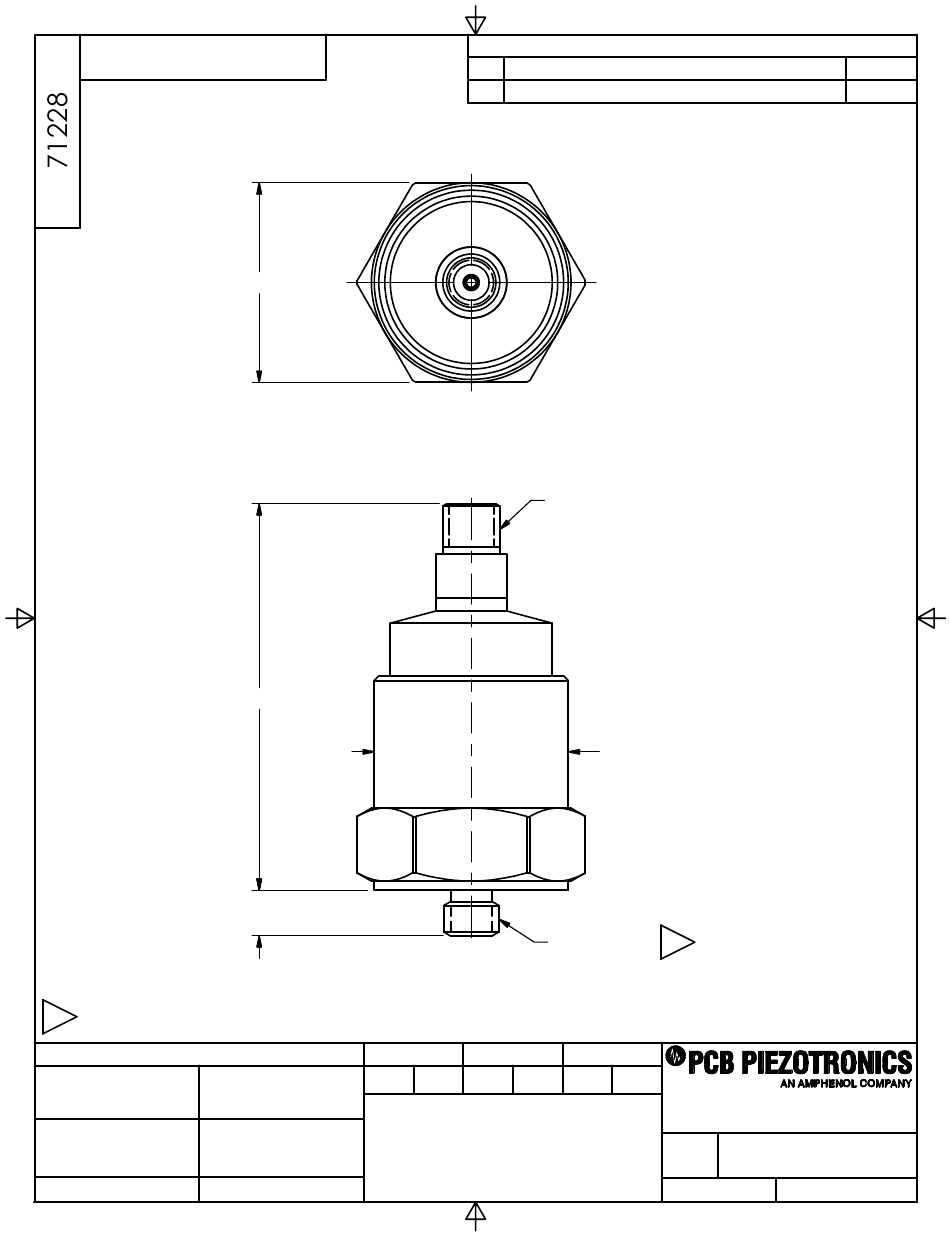

OUTLINE DRAWING
EX621C40 SERIES
ACCELEROMETER
1
REVISIONS
DESCRIPTION
UPDATED TITLE BLOCK, ADDED NOTE

2X .425 [10.80]
1
ENGINEER
08/12/22
GGS
3425 WALDEN AVE. DEPEW, NY 14043
(716) 684-0001 E-MAIL: sales@pcb.com
DWG. NO.
CODE
IDENT. NO.
52681
SCALE: 4X
1
DIN
53107
B
A
71228
SHEET 1 OF 1
