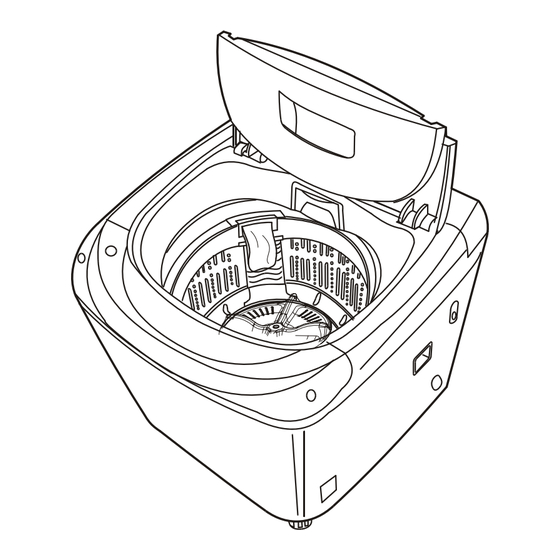

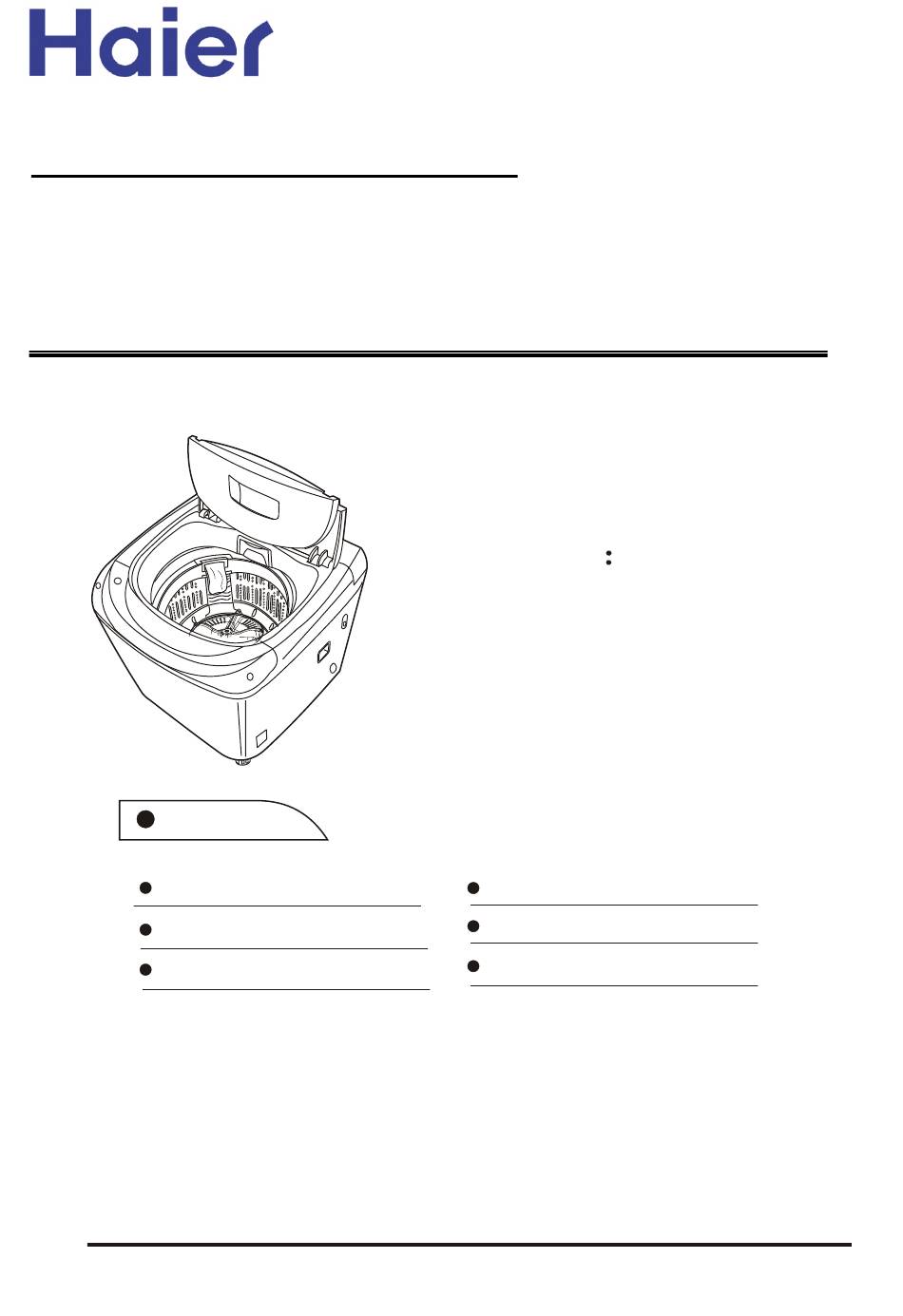

- Page 1 Automatic Washing Machine SERVICE MANUAL Models TEL6TL Features Transparent view window Night wash Reserve wash Frequency converting spinning 10-step water level selection Ten minutes speedy wash Edition: 2005.10.09 Special No.: TEL6TL-01...
-
Page 2: Table Of Contents
CONTENTS 1.Contents Features 4. Specifications Safety precautions Warning and cautions 7. Net dimension Installation and accessory parts 9. Parts and functions 10. Maintenance service and trouble shooting 11. Wiring diagram 12. Exploded view 13. List of parts... -
Page 3: Features
FEATURES Folding Transparent view window: The top lid adopts folding design to reduce the height of the whole unit. And it is capable of observing the complete washing procedures. Synthetic wash process: low noise synthetic wash process is specially added so that night silence will not be broken as much as possible. -
Page 4: Specifications
SPECIFICATIONS Model TEL6TL Features for use Wash capacity Spin capacity 1/23L 2/30L 3/34L 4/40L 5/44L 6/49L 7/53L 8/57L Level/Volume 9/61L 10/66L Preset 2--24 Residual dampness Contral model contraller × Normal computerized × Fuzzy computerized × Frequency conversion × Service features... -
Page 5: Safety Precautions
SAFETY PRECAUTIONS In norma l usage of the washing machine, the power plug shall be ready to be pulled or plugged with hand. Be sure to pull the plug off and close the water faucet in following cases: power failure, Please plug the power plug on special Safety precautions delivering the machine, setting the machine idle... -
Page 6: Warning And Cautions
WARNING AND CAUTIONS Do not put hand into the rotating tub. It is Do not decompose, repair or alter the machine by yourself. dangerous even if the rotation speed is slow. Take special care of the children. Keep children away from the washing machine to avoid them climbing on it. -
Page 7: Net Dimension
NET DIMENSION Unit: mm INSTALLATION AND ACCESSORY PARTS Please install and adjust the machine according to the requirement of the manual. It is very important to your security and correct operating the machine. nstall the bottom plate After open the package, please lean the washing machine gently down to soft items Back (towel cloth, blanket, etc.). - Page 8 INSTALLATION AND ACCESSORY PARTS Adjust the Installation position The largest allowed slope of the shank base of the machine is 2 . The slanting or rough ground will result in unstable running or stoppage of the machine. Please adjust it with following methods: Confirm it's horizontal Hang the plumb to confirm it's horizontal.
- Page 9 INSTALLATION AND ACCESSORY PARTS Install the water inlet hose 1. Insert a new flat washer into each end of the inlet hoses. Firmly put the washers in the coupling. Note: Use the new hose sets supplied with the washer. Any other old hose sets should not be used. You may have to use pliers to tighten the coupling.
- Page 10 INSTALLATION AND ACCESSORY PARTS...
- Page 11 INSTALLATION AND ACCESSORY PARTS...
- Page 12 INSTALLATION AND ACCESSORY PARTS roduct briefs 1) Computer sequencer It adopts pouring seal with polyurethane on the surface. The light-emitting diode is sealed with insulation bushing to avoid humidity. To avoid splashing, the surface of computer plate and box and the operation components of the control panel seat are coated with control panel film. 2) Structure of the top lid the transparent top lid adapts folding structure .if the lid is opened, the necessary height is reduced .
- Page 13 INSTALLATION AND ACCESSORY PARTS Operating principle of Hand-wash style washer XQB60-91AF is a hand-wash type washing machine. The most obvious feature is that during washing, the pulsator and inner tub rotate to opposite direction, and thus make double washing effect. It is realized as following three points: Retarder The retarder of this washing machine is different from other retarders.
- Page 14 INSTALLATION AND ACCESSORY PARTS Key points in disassembly Points of attention in maintenance General attention Be sure to pull off the power plug in disassembly or maintenance Use stipulated crimp terminals in connecting the wires between the conducting wires as far as possible, and fix with suitable tools, and insulate with insulation tape completely.
- Page 15 INSTALLATION AND ACCESSORY PARTS Points of attention in assembly when removing the back control panel, pry the notch at two sides using a screw driver with cushion under it, so that the connection block can get uncouple, then tap the bottom. Connection wire inside the control panel should be fixed to their original positions without touching acute and movable part.
-
Page 16: Parts And Functions
PARTS AND FUNTIONS Detergent box Top panel Level sight glass Lint filter Inner tub Filter cover Control panel Pulsator djustable leg abinet Hot water valve Cold water valve Hole cover Power cord Cabinet handle ack cover Front leg rain outlet cover Rear leg... -
Page 17: Maintenance Service And Trouble Shooting
MAINTENANCE SERVICE AND TROUBLE SHOOTING Trouble-shooting table Test program (test without water) Push and hold the "Procedure Selection" and "start/pause" buttons, then push down the power switch to enter Test A program. Push the "Procedure Selection",The program will switch as follow: Buzzing test process Washing test process... - Page 18 MAINTENANCE SERVICE AND TROUBLE SHOOTING Trouble alarm and solve method Phenomenan The reason How to settle The top lid is not closed. Close the top lid. In pre-wash , the washer stops running,the numeral tube shows E0 The draining does not work, or Open and close the top lid once.
- Page 19 MAINTENANCE SERVICE AND TROUBLE SHOOTING Trouble-shooting charts If you replace the computer sequencer without checking the other components carefully, the computer sequencer may be damaged again. Therefore, please first check if the other components working normally before replacing the sequencer in maintenance. No action (the indicator is off) Confirm that there's no power failure, and the power plug is inserted reliably...
- Page 20 MAINTENANCE SERVICE AND TROUBLE SHOOTING No water filling Switch on the power. Push the "Start/Pause" button. Exist Exist Remove the foreign materials of the water Confirm the action sound of the water inlet valve. inlet valve filter Screen or raise the water pressure to 0.03Mpa-0.78MPa before use.
- Page 21 MAINTENANCE SERVICE AND TROUBLE SHOOTING No draining Set rinse or spin. Start the machine. Exist Roll up normally Check the drain system like the drain valve ect. Check if the drain motor acts. If it is normal of the bearing part locking the clutch. Exist Measure the voltage of the two Replace the drain motor.
- Page 22 MAINTENANCE SERVICE AND TROUBLE SHOOTING Too much noise in washing Replace the motor. If the noise of the motor is too much. Fasten the motor. If the motor fastened tightly. Replace the retarder. If the inner gear of the retarder is engaged well. Adjust the belt.
- Page 23 MAINTENANCE SERVICE AND TROUBLE SHOOTING Poor cascade effect If the water level is low. It is normal. The low water level may have no cascade. Wait before use till the voltage recovers. If the power voltage is too low. If the belt is too loose. Adjust the tension of the belt.
-
Page 24: Wiring Diagram
WIRING DIAGRAM circuit diagram Fuse Brown/White Brown Brown Orange Water Blue Blue/White Blue Level Yellow/Green Sensor Orange Green/White Blue Softener Inlet Valve Pink Blue Yellow/Green Hot Water Inlet Valve Grey Blue Cold Water Inlet Valve Red/White Out of Balance Blue White Switch Red/White... -
Page 25: Exploded View
EXPLODED VIEW... - Page 26 EXPLODED VIEW...
- Page 27 EXPLODED VIEW...
- Page 28 EXPLODED VIEW...
- Page 29 EXPLODED VIEW 103 99...
-
Page 30: List Of Parts
TEL6TL PART DESCRIPTION 00330103014 WATER ABSORPTION CUSHION 0030600028 BOLT 0030501612 TABLET OF COLD WATER 0030503257 DRYING HOLE COVER 00330802008 TAPPING SCREW 0030201008 BACK PLATE 0030800556A COMPONENT OF TOP LID 00330901218A NOTICE TABLET 0030200634 TOP LID AXIS 0030501611 TABLET OF WARM WATER... - Page 31 TEL6TL PART DESCRIPTION 00330101736 LINT FILTER 0030600056 FASTEN SCREW 00330806003 DENTATE GASKET 0030203822 PULSATOR 00330810015 TAPPING SCREW 0030201372 FILTER COVER 00330211010 SEALING STRIP (LONG) 0030803639 INNER TUB COMPONENT A 00330810035 TAPPING SCREW 00330810001 SCREW UNIT 00330014035 DAMPING COMPONENT I 00330014036...
- Page 32 TEL6TL PART DESCRIPTION 0030100747 CABINET 00330111535 HANGER 0030200046 CABINET HANDLE 00330103012 DAMPING PROTECTIVE PAD OF CABINET 0030100007 BIG DRAIN HOSE CLAMP 00330302024 DRAIN PUMP SEAT 00330017008 ADJUSTABLE FOOT UNIT 0030200617 ADJUSTABLE NUT 0030100431 BACK COVER 00330804002 00330804003 FLAT GASKET 0030600028...
- Page 33 Sincere Forever Haier Group Haier Industrial Park, No. 1, Haier Road 266101,Qingdao,China http://www.haier.com...
