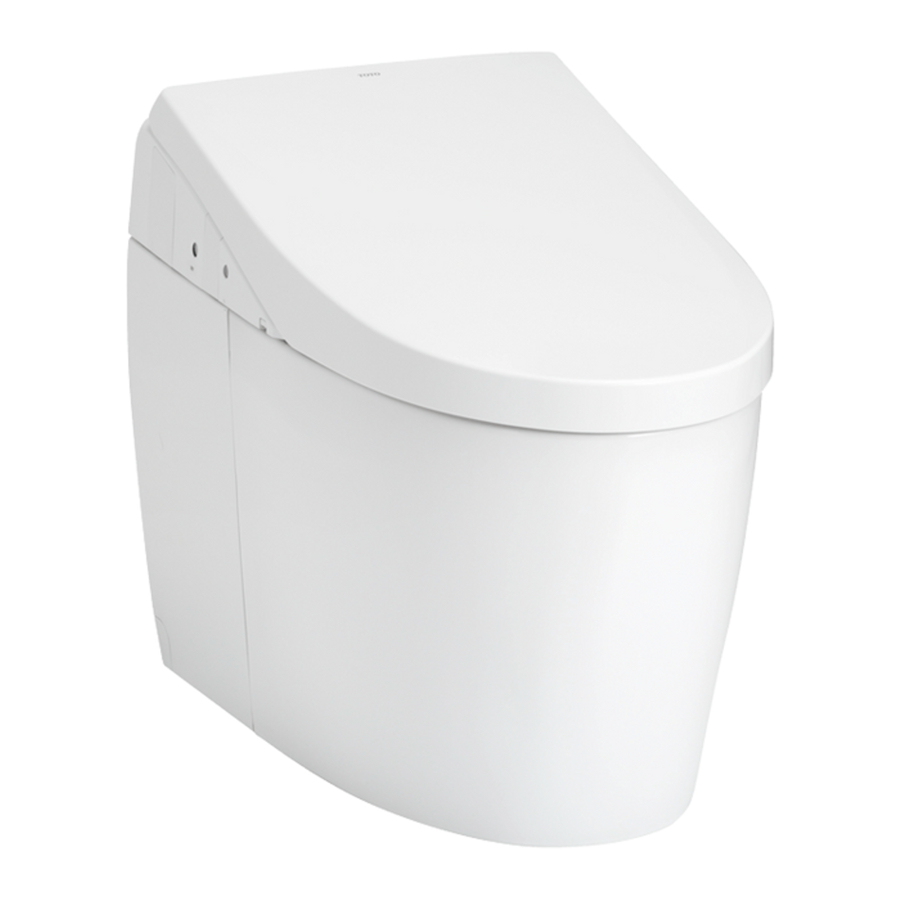

Toto NEOREST - Toilet Bowl Manual

Introduction

Install the product properly according to this installation manual for best performance. When the installation work is complete, give a detailed explanation of how to use this product to the customer.

Required
Install the manual lever to the floor flange prior to installing the toilet bowl.

Do not remove the battery box as it is used during power outages.

* If hole on bag was broken. place cord in other hole.

Product Diagrams

Product Diagram (Installation completed) AH type
(Unit: mm)

For water supply from the wall
*1 When the cleaning lift is up with the toilet lid open.

Product Diagram (Installation completed) RH type
(Unit: mm)

Product Diagram (Installation completed) DH type
(Unit: mm)

For water supply from the wall
* 1 When the cleaning lift is up with the toilet lid open.

For water supply from the wall
*1 When the cleaning lift is up with the toilet lid open.

* Product may vary by country. Please confirm which model you have for correct installation.

Precaution before installation

• Secure the space required for toilet installation and at the same time, check door opening/closing for possible interference.
• The remote control signal reception may be degraded and the NEOREST unit may not respond to the remote control if there are shelves or cabinets on the rear wall at a height of less than 1400 mm from the floor.
  (Shelves and storage cabinets should be more than 1400 mm from the floor.)
• Tum on electricity and water supply to the product after completing all installation work.
• Use care not to damage the end of the connection hose.
• The minimum required water pressure (flowing) is 0.05MPa at 10 L/min while the maximum water pressure (static) is 0.75MPa.
• Please wash away the dust or sand in the water supply pipe completely before installing the water supply valve.
• Make sure before installation that the water supply source and water drain pipe are in the specified positions according to the diagram. If it is not positioned properly, the product may not be able to be installed correctly.

Safety Cautions

(Observe these cautions for safety's sake.)

Read these "Safety Cautions" carefully before starting installation work. Install the product properly.
This manual uses various indications to ensure a proper, safe installation and to prevent injury to the customer, injury to other people and damage to property.
The symbols should be interpreted as follows.

Improper use or installation of this product may result in injury or property damage.

This symbol is used to indicate no tampering with this product.

This symbol is used to indicate a required step in the use of this product.

Prohibited

• DO not subject the toilet bowl to strong forces or impacts.
  Otherwise, the toilet bowl may break causing injury or leaks that may damage property.
• Do not excessively bend or twist the water supply hose.
  Otherwise, the flexible water supply hose may break causing leaks that may damage property.
• Do not remove the water supply filter with the water supply valve being open.
  If the water supply valve is not closed, water may gush out causing leaks that may damage property.

Required

• Be sure to use the included or specified parts for installation work.
  Otherwise, the product may not be installed properly.
• Carry out the installation work according to this installation manual.
  Otherwise, damage caused by water leaks may occur.
