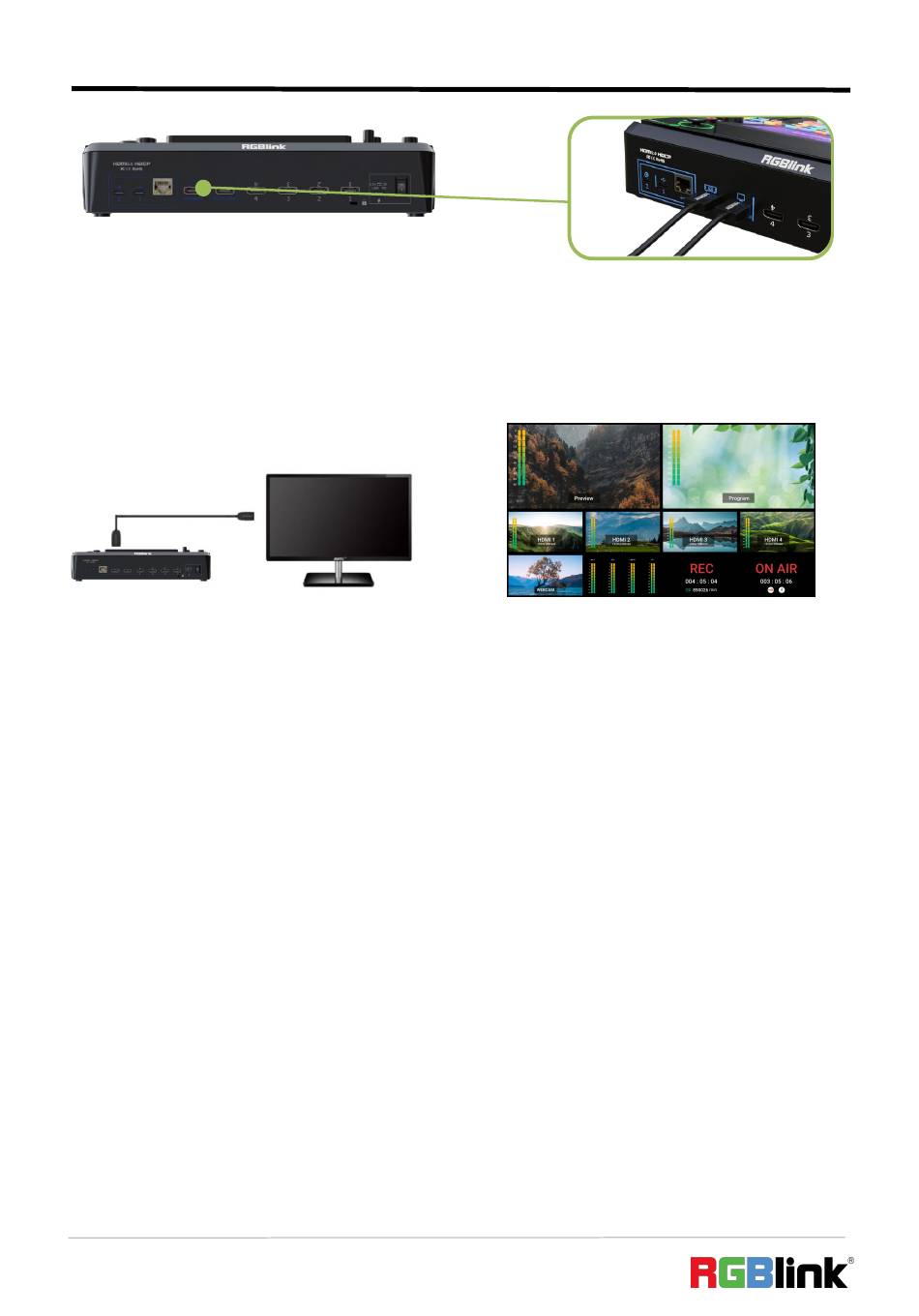

The default output of MULTI-VIEW port is multi-screen Preview view, so user can see the audio
and video conditions of all input signal sources, check current status of each function of
mini-edge and see the Preview view.
Users can switch screen mode and select HDMI output resolution on【OUTPUT】.
MULTI-VIEW supports output in multi-view, HDMI 1~4 signal source or program.
PROGRAM supports output in multi-view, program or test pattern.
2.3 Connecting Microphone and External
Monitoring Devices
On the right panel of mini-edge, there are four audio jacks in total.
mini-edge features TWO high-quality audio input jacks on the right panel. The microphone
input adopts Neutrik jack with 48V phantom power supported. The other one adopts Line-in
6.35mm TRS jack, which can be directly connect to the mobile phone, computer and console.
mini-edge comes with TWO audio output jacks on the right panel. One adopts 3.5mm mini-jack,
which can be directly connect to the headphone for audio monitoring. The other line PGM output
