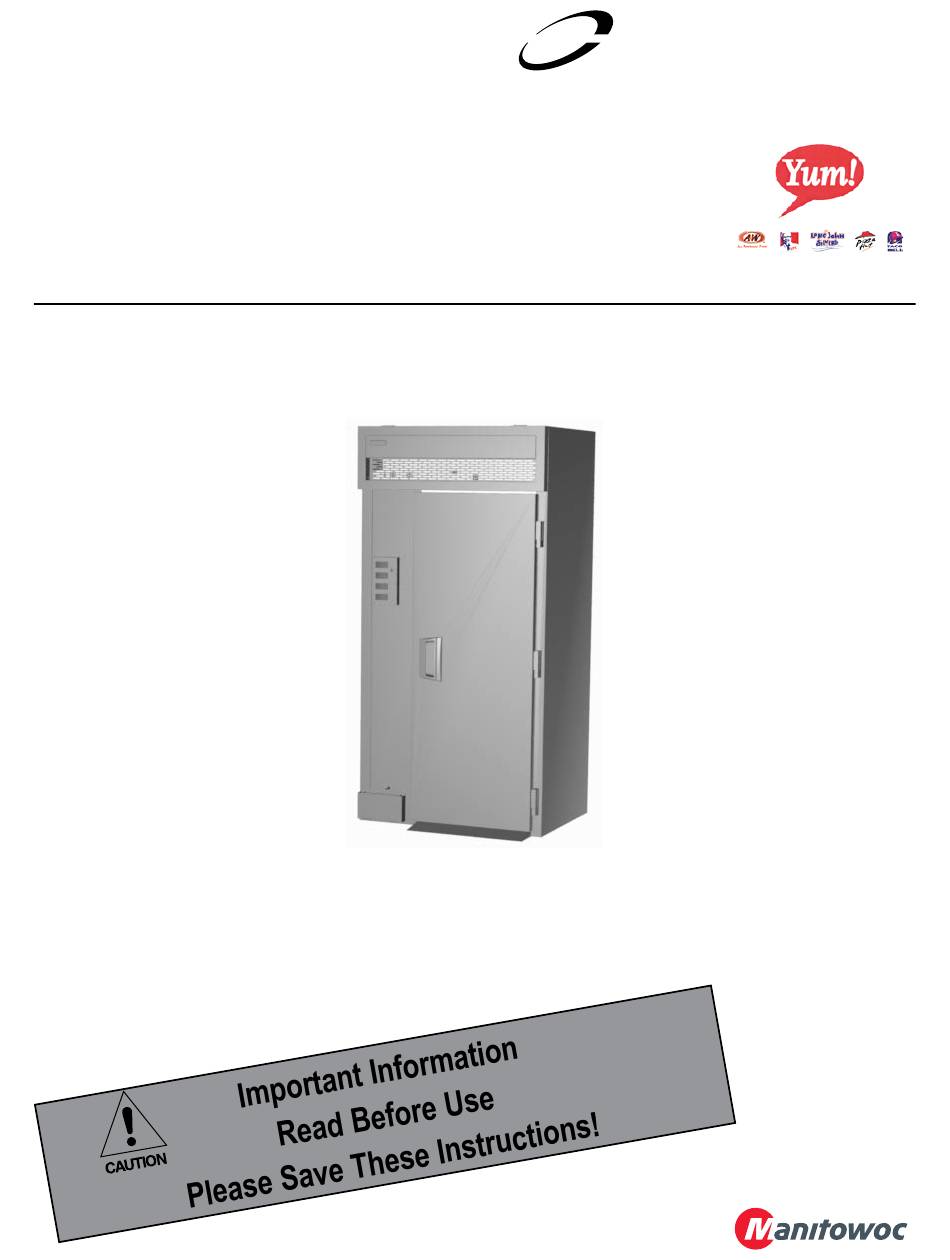

- Page 1 Delfield ™ ® ST20-S-KFC Service, Installation and Care Manual Please read this manual completely before attempting to install or operate this equipment! Notify carrier of damage! Inspect all components immediately. See page 3. KFC Pre-Breading Blast Chiller Effective January 2009...
-
Page 2: Table Of Contents
Pre-Breading Blast Chiller Installation and Operation Manual Serial Number Table of Contents Always have the serial number of your unit available when calling Serial Number..............2 for parts or service. The serial number is on the identification Receiving And Inspecting The Equipment ..... 2 plate that also includes the model number. -
Page 3: Warning And Safety Information
Pre-Breading Blast Chiller Installation and Operation Manual Important Warning And Safety Information Read this manual thoroughly before operating, Minimum clearances must be maintained. installing, or performing maintenance on the equipment. WARNING Keep the equipment area free and clear of combustible material. Failure to follow instructions in this manual can cause property damage, injury or death. -
Page 4: Line Drawing
Pre-Breading Blast Chiller Installation and Operation Manual KFC Pre-Breading Blast Chiller Line Drawing 44.00" HOLDING CHILLING 111.8cm MIN TIME MAX TIME 27.00" 68.6cm 88. 8 88. 8 HOLDING 28.00" 34.00" 71.1cm 86.4cm 28.00" CHILLING 28.00" 71.1cm 71.1cm 92.00" Plan View 133.7cm 73.00"... -
Page 5: Introduction
Pre-Breading Blast Chiller Installation and Operation Manual Introduction Instructions Install unit in pre-determined location. Unit is required to be General level, stationary and sealed to the floor with an NSF listed caulk. If necessary install trim pieces on the bottom and side ST20-S-KFC has a stainless steel interior and exterior. -
Page 6: Operation
Pre-Breading Blast Chiller Installation and Operation Manual Operation Daily Start-Up Press switch to chill mode 30 minutes prior to first use. Electronic Temperature Control In the hold mode the system, set at 6, will maintain the cabinet interior between 34°F and 39°F. In the chill mode Timer Operation the unit will maintain 15°F to 39°F, set at 9. -
Page 7: Maintenance
Pre-Breading Blast Chiller Installation and Operation Manual Maintenance Cleaning solutions need to be alkaline based or non-chloride cleaners. Any cleaner containing chlorides will damage the Door Gasket Maintenance protective film of the stainless steel. Chlorides are also commonly Door gaskets require regular cleaning to prevent mold and found in hard water, salts, and household and industrial cleaners. -
Page 8: Wiring Diagram
Pre-Breading Blast Chiller Installation and Operation Manual Wiring Diagram CART TIMER CHILL TIMER Delfield ™ ® For customer service, call (800) 733-8829, (800) 733-8821, Fax (989) 773-3210, www.delfield.com... -
Page 9: Troubleshooting
Pre-Breading Blast Chiller Installation and Operation Manual Troubleshooting Symptom Probable Cause Remedy No lights on display panel No power Check power supply ON/OFF Switch is off Turn ON/OFF switch to ON Display reads - - - - Control knobs have been turned to Reset Hold knob to 6 and Chill knob to the off position Display flashes E Code... -
Page 10: Replacement Parts
Pre-Breading Blast Chiller Installation and Operation Manual Replacement Parts 9 10 Key Part No. Description Key Part No. Description 3527046 Compressor, Danfoss, MPZ038-1 000-C9Z-0031 Assembly, panel, evaporator fan (does not include motors) 3527047 Compressor, Tecumseh, 208-230V, AW615FT-114-A4 3517365 Coil, Evaporator 3517345 Dryer, Filter, 3/8”, Danfoss 2194978... - Page 11 Pre-Breading Blast Chiller Installation and Operation Manual Replacement Parts Part # Description 2162726 Bracket, Fan Mount 000-AB9-028S Door, hinged left 000-AB9-028R Door, hinged right 1702826 Gasket, Door 2183791 Heater wire, door frame 3234617 Hinge, Chrome Plated 121-CAL-0031 Hinge, Evaporator Cover 3547743 Pin, Hinge, Evaporator Cover 117-AFJ-0042...
-
Page 12: Standard Labor Guidelines
Pre-Breading Blast Chiller Installation and Operation Manual Standard Labor Guidelines To Repair Or Replace Parts On Delfield Equipment Advice and recommendations given by Delfield Service Technicians do not constitute or guarantee any special coverage. • A maximum of 1-hour is allowed to diagnose a defective component. •... -
Page 13: Standard One Year Warranty
Pre-Breading Blast Chiller Installation and Operation Manual Standard One Year Warranty (One Year Parts And Labor.) The Delfield Company (“Delfield”) warrants to the Original Purchaser of plant and determined by Delfield to be within this warranty. the Delfield product (herein called the “Unit”) that such Unit, and all parts thereof, will be free from defects in material and workmanship Under no condition does this warranty give the Original Purchaser the under normal use and service for a period of one (1) year from the date... -
Page 14: Additional Four Year Protection Plan
Pre-Breading Blast Chiller Installation and Operation Manual Additional Four Year Protection Plan (for Motor-Compressor only) Installation Delfield Model# Serial # Date Replacement of a defective Motor-Compressor is limited to one (1) Motor-Compressor by us during the four () year period. Delfield shall replace the Motor-Compressor at no charge. This warranty does not give the Original Purchaser of the Motor- In addition to the Standard One Year Warranty on the Motor- Compressor the right to purchase a complete replacement Motor- Compressor contained in the above listed Delfield product (the... -
Page 15: Notes
Pre-Breading Blast Chiller Installation and Operation Manual Notes Delfield ™ ® For customer service, call (800) 733-8829, (800) 733-8821, Fax (989) 773-3210, www.delfield.com... - Page 16 Delfield ™ ® Mt. Pleasant, MI Covington, TN Thank you for choosing Delfield! Help is a phone call away. Help our team of professional, courteous customer service reps by having your model number and serial number available at the time of your call (00) -. Model: ____________________ S/N: ___________________ Installation Date: ____________ For a list of Delfield’s authorized parts depots, visit our website at www.delfield.com. Delfield ™ ® 0 S. Isabella Rd., Mt. Pleasant, MI , U.S.A. • () -1 or (00) - • Fax () -10 • www.delfield.com Delfield reserves the right to make changes in design or specifications without prior notice. ©00 The Delfield Company. All rights reserved. Printed in the U.S.A. DMKFC BlastChiller 01/09...
