Fire Bird V ATMEGA2560 Hexapod Robot User Guide
Fire Bird V ATMEGA2560 Hexapod robot comes with its own NR-BLIC-03 balance charger
form the NEX Robotics. To charge the battery, remove it from the robot and charge it in the open
space. Figure 3.4. shows the battery charging process. NR-BLIC-03 balance charger monitors
individual cell voltages of the battery pack and it adjusts the rate of charge to the individual
battery to do balance charging. Use only NR-BLIC-03 battery charger for battery charging.

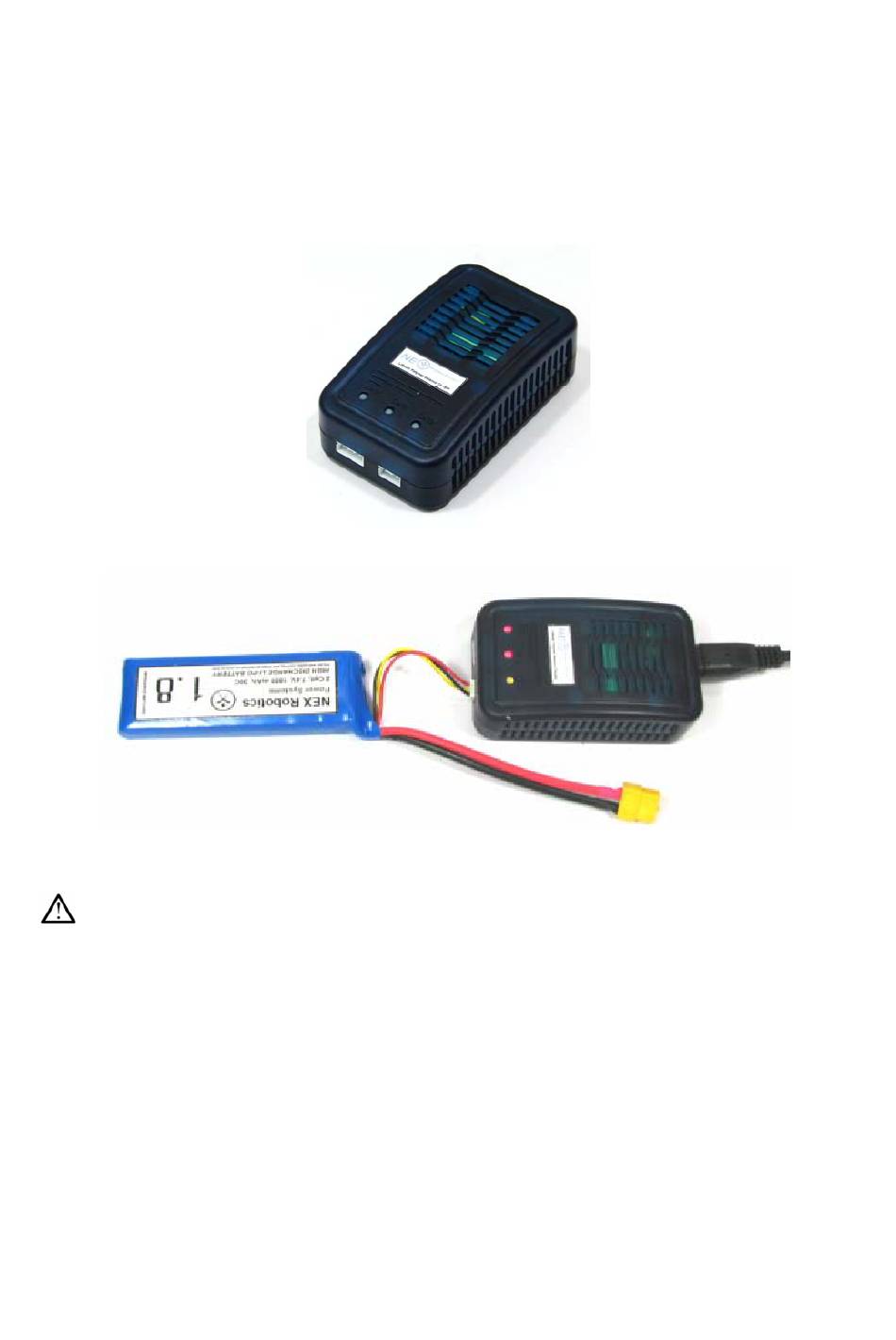

Figure 3.3: NR-BLIC-03 battery charger from NEX Robotics
Figure 3.4 Connecting battery with NR-BLIC-03 charger
Warning
Never ever charge the battery while the robot is ON. It will damage battery or charger or
both.
