BAG L
x1
7x12x1mm Washer
ワッシャー
x1
7x10x0.5mm Washer
ワッシャー
0.3 mm
x1
BB5104
Ball Bearing 5x10x4mm
ボールベアリング
x2
BB5825
Ball Bearing 5x8x2.5mm
ボールベアリング
x1
B03315
M3x15mm Cap Head Screw
キャップスクリュー
Clearance adjustment
クリアランスの調整
0.5-0.6 mm
Adjust numbers of φ5 shim to have 0.5-
0.6mm width.
0.5 ~ 0.6mm になるようにφ 5 シムの枚数を調整します。
Inner diameter is large.
内径が大きい。
BBT5
Thrust Ball Bearing 5mm
スラストボールベアリング
61
For OS12TG use 7x10x0.5mm
washer
OS12TG の場合は 7x10x0.5mm
ワッシャーを使用
G070B
7x10x0.5mm Washer
G068
フライホイール
R0149B
Fly Wheel Nut
フライホイールナット
G069
Clutch Spring
クラッチスプリング
R0154
Clutch Spring Nut
クラッチスプリングナット
G071-16
1st Pinion Gear 16t
1 速 ピニオンギヤ
Inner diameter is large.
内径が大きい。
BBT5
x1
R0157
Clutch Bell Guide (W/ Spacer 0.1 0.3)
クラッチベル ガイド(スペーサー付き 0.1 0.3)
B03315
M3x15mm Cap Head Screw
キャップスクリュー
ワッシャー
G070B
7x12x1mm Washer
ワッシャー
G070B
Fly Wheel
G064
G066
クラッチディスク
Clutch Shoe
R0153
クラッチシュー
Clutch Spring Holder
クラッチスプリングホルダー
G065
Clutch Bell
クラッチベル
G072-21
2nd Pinion Gear 21t
2 速ピニオンギヤ 21T
BB5825
SMJ1327
SMJ Ultra Joint Grease White
SMJ ウルトラジョイントグリス ホワイト
Not incld.
(別売)
29
G067
Clutch Weight
クラッチウエイト
Clutch Disc
CM-A004-05
5x7 Shim Set (0.1, 0.2, 0.3mm)
シムセット
BB5104

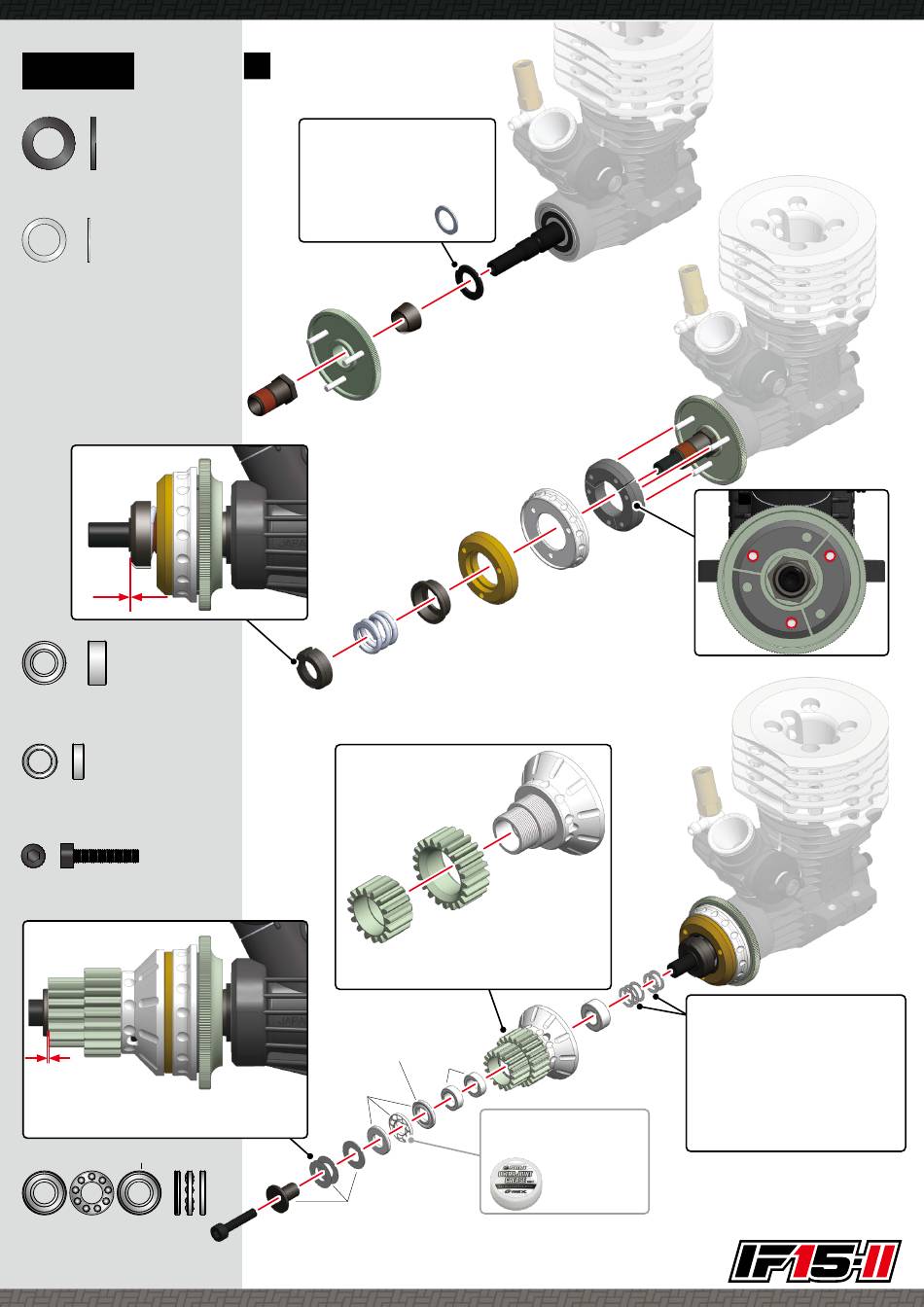

After adjusting the clearance,
insert the necessary amount of
shims to prevent the clutch bell
from moving back and forth.
クリアランス調整後、クラッチベルが前
後に動かないように必要な量のシムを挿
入します。
