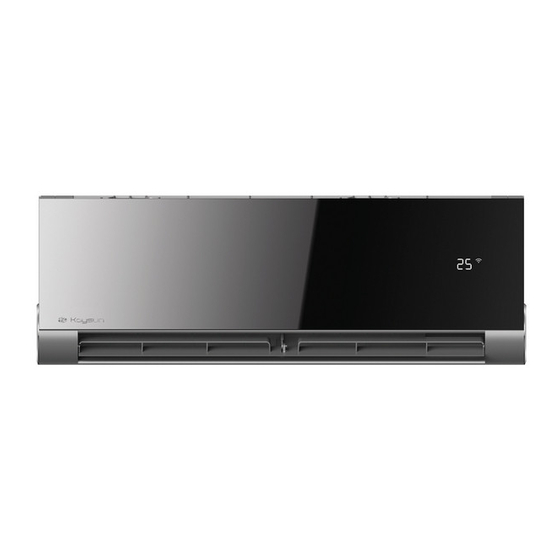

Frigicoll Kaysun ONNIX KAY-D 26 DN7 Owner's Manual

Hide thumbs

page of 20

/ 20
Bookmarks

Quick Links

Download this manual

OWNER'S MANUAL

ONNIX Series

KAY-D 26 DN7

KAY-D 35 DN7

KAY-D 52 DN7

IMPORTANT NOTE:

Read this manual carefully before installing or operating your new air conditioning unit.

Make sure to save this manual for future reference. The design and specifications are

subject to change without prior notice for product improvement. Consult with the sales

agency or manufacturer for details.

Need help?

Do you have a question about the Kaysun ONNIX KAY-D 26 DN7 and is the answer not in the manual?

Questions and answers

Summary of Contents for Frigicoll Kaysun ONNIX KAY-D 26 DN7

Page 1 OWNER’S MANUAL ONNIX Series KAY-D 26 DN7 KAY-D 35 DN7 KAY-D 52 DN7 IMPORTANT NOTE: Read this manual carefully before installing or operating your new air conditioning unit. Make sure to save this manual for future reference. The design and specifications are subject to change without prior notice for product improvement.
Page 2 Table of Contents Owner’s Manual 0 Safety Precautions ..........05 1 Unit Specifications and Features ..07 SAFETY FIRST Manual Operation (Without Remote)..12...
Page 3 Care and Maintenance ..............13 Troubleshooting ..................15 European Disposal Guidelines ........19...
Page 5 Safety Precautions Read Safety Precautions Before Installation Incorrect installation due to ignoring instructions can cause serious damage or injury. The seriousness of potential damage or injuries is classified as either a WARNING or CAUTION. This symbol indicates that ignoring instructions may cause serious injury. WARNING This symbol indicates that ignoring instructions may cause moderate injury to your person, or damage to your appliance or other property.
Page 6 ELECTRICAL WARNINGS Only use the specified power cord. If the power cord is damaged, it must be replaced • by the manufacturer or certified service agent. Keep power plug clean. Remove any dust or grime that accumulates on or around the plug. •...
Page 7 Unit Specifications and Features Unit Parts Front Panel Power Cable (Some Units) V-shape light area: Lights up in different colour according to the operation mode: In (AUTO) COOL and DRY mode, the light is blue Louver In (AUTO) HEAT mode, the light is orange. The light is off in FAN mode.
Page 8 Achieving Optimal Performance Optimal performance for the COOL, HEAT, and DRY modes can be achieved in the following temperature ranges. When your air conditioner is used outside of these ranges, certain safety protection features will activate and cause the unit to perform less than optimally. Inverter Split Type FOR UNITS WITH COOL mode...
Page 9 • Wi-Fi Control (some units) For a detailed explanation of each function, Wi-Fi control allows you to control refer to the Remote-Control Manual. your air conditioner using your mobile phone and a Wi-Fi connection. Other Features Louver Angle Memory (some units) •...
Page 10 • Setting Angle of Air Flow Setting vertical angle of air flow While the unit is on, use the SWING /DIRECT button to set the direction (vertical angle) of airflow. 1. Press the SWING /DIRECT button once to activate the louver. Each time you press the button, it will adjust the louver by 6°.
Page 11 • Sleep Operation The SLEEP function is used to decrease energy use while you sleep (and don’t need the same temperature settings to stay comfortable). This function can only be activated via remote control. Press the SLEEP button when you are ready to go to sleep.
Page 12 Manual Operation (Without Remote) How to operate your unit without CAUTION the remote control The manual button is intended for testing In the event that your remote control fails to purposes and emergency operation only. work, your unit can be operated manually with Please do not use this function unless the the MANUAL CONTROL button located on the remote is lost and it is absolutely necessary.
Page 13 Care and Maintenance Cleaning Your Indoor Unit 6. Rinse the filter with fresh water, then shake off excess water BEFORE CLEANING OR 7. Dry it in a cool, dry place, and refrain from MAINTENANCE exposing it to direct sunlight ALWAYS TURN OFF YOUR AIR CONDITIONER SYSTEM AND DISCONNECT ITS POWER SUPPLY BEFORE CLEANING OR MAINTENANCE.
Page 14 Maintenance – CAUTION Long Periods of Non-Use Before changing the filter or cleaning, • If you plan not to use your air conditioner for turn off the unit and disconnect its an extended period of time, do the following: power supply. When removing filter, do not touch metal •...
Page 15 Troubleshooting SAFETY PRECAUTIONS If ANY of the following conditions occurs, turn off your unit immediately! • The power cord is damaged or abnormally warm • You smell a burning odor • The unit emits loud or abnormal sounds • A power fuse blows or the circuit breaker frequently trips •...
Page 16 Issue Possible Causes A rushing air sound may occur when the louver resets its position. The indoor unit makes noises A squeaking sound may occur after running the unit in HEAT mode due to expansion and contraction of the unit’s plastic parts. Low hissing sound during operation: This is normal and is caused by refrigerant gas flowing through both indoor and outdoor units.
Page 17 Troubleshooting When troubles occur, please check the following points before contacting a repair company. Problem Possible Causes Solution Temperature setting may be higher than ambient Lower the temperature setting room temperature The heat exchanger on the indoor or outdoor unit is Clean the affected heat exchanger dirty Remove the filter and clean it...
Page 18 Problem Possible Causes Solution Power failure Wait for the power to be restored The power is turned off Turn on the power The fuse is burned out Replace the fuse The unit is not working Remote control batteries are dead Replace batteries The Unit’s 3-minute protection has Wait three minutes after...
Page 19 European Disposal Guidelines This appliance contains refrigerant and other potentially hazardous materials. When disposing of this appliance, the law requires special collection and treatment. Do not dispose of this product as household waste or unsorted municipal waste. When disposing of this appliance, you have the following options: •...
