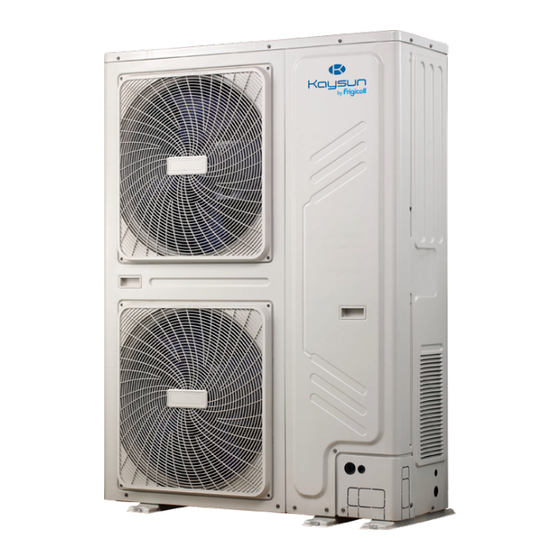

- Page 1 INSTALLATION MANUAL Amazon Unitario DN4 KMF-200 DN4 KMF-260 DN4 KMF-335 DN4 KMF-224 DN4 KMF-280 DN4 Thank you very much for purchasing our air conditioner. Before using your air conditioner, please read this manual carefully and keep it for future reference.
-
Page 2: Table Of Contents
CONTENTS PAGE CAUTION Do not connect the Appliance from Main Power Supply directly. PRECAUTIONS .................1 ATTACHED FITTINGS ..............2 OUTDOOR UNIT INSTALLATION ..........3 WARNING INSTALL THE CONNECTING PIPE ..........4 ELECTRICAL WIRING ..............9 Ask an authorized dealer or qualified installation professional to install/maintain the air conditioner. TEST RUNNING ..............12 Inappropriate installation may result in water leakage, electric shock CONFIGURATION ..............12... -
Page 3: Attached Fittings
The temperature of refrigerant circuit will be high, please keep the 3) Spanner 4) Pipe cutter interconnection cable away from the copper tube. 5) Knife The power cord type designation is H05RN-For above/H07RN-F. 6) Reamer An insufficient power supply capacity or inappropriate installation may 7) Gas leak detector cause fire. -
Page 4: Outdoor Unit Installation
The insulation of the metal parts of the building and the air conditioner should comply with the regulation of National Electric Standard. CAUTION ■ When installing the outdoor unit in a place that is constantly exposed Keep indoor unit, outdoor unit, power supply wiring and to a strong wind such as the upper stairs or rooftop of a building, transmission wiring at least 1 meter away from televisions apply the windproof measures referring to the following examples. -
Page 5: Install The Connecting Pipe
INSTALL THE CONNECTING PIPE 3.3 Moving and installation ● Since the gravity center of the unit is not at its physical center, Check whether the height drop between the indoor unit and outdoor so please be careful when lifting it with a sling. unit, the length of refrigerant pipe, and the number of the bends meet ●... - Page 6 ● The second connect method Check point of indoor unit Outdoor Unit(Take Model 280 for example) Check point of outdoor unit intdoor Units Fig.4-2 4.3 Heat Insulation The first Line Branch Pipe Do the heat insulation to the pipes of air side and liquid side separately.
- Page 7 Table 4-8 ● Branch header must be connected with indoor units directly, the further branch connection is not allowed. Capacity of Maximum Sum Capacity Outdoor Unit Outdoor unit Quantity of of Indoor unit (kW) (horsepower) Indoor unit (horsepower) ● Select branch joint Select the branch joint according to the total designed capacity of 22.4 indoor units which it connects to.
- Page 8 ● Indoor unit branch pipe ■ The indoor unit below to the main pipe L3 are N3~N6, and its total capacity is 45×3+56=191, the size of pipe L3 isΦ19.1/Φ9.5, and the Inner branch pipes are a~f, the size selection please refers to branch pipe C should be FQZHN-01D.
- Page 9 ● The second connect method Outdoor unit Pipe Length(from the nearest branch pipe equivalent length Maximum pipe equivalent length (from the first line branch pipe) Maximum pipe equivalent length The first line Branch Pipe Indoor unit 4.7 Remove Dirt or Water in the Piping 4.10 Refrigerant Amount to be Added Make sure there is no any dirt or water before connecting Calculate the added refrigerant according to the diameter and the...
-
Page 10: Electrical Wiring
ELECTRICAL WIRING CAUTION ● Design a dedicated power supply for the indoor unit and outdoor unit. ● If the power supply uses a branch loop, install an electricity leakage protector and a manual switch. ● The power supply, electric leakage protectors, and manual switches of the indoor units that connect to the same outdoor unit must be universal. - Page 11 Outdoor unit P Q E Note: The parts in the dotted line box are optional. Contact the local distributor to purchase them if required. Use a shield cable and ground the shielding layer. Indoor unit Indoor unit Indoor unit Indoor unit P Q E P Q E P Q E...
- Page 12 Wrong connection may cause malfunction . NOTE Wiring Connection Seal the wiring connection with the insulation material , or the The wire diameter and continuous length is under the condition that condensing dew will be caused. the voltage vibration is within 2%. If the continuous length is exceed showing value, choose the wire diameter follow relevant regulation.
-
Page 13: Test Running
TEST RUNNING Operate according to "gist for test running" on the electric control box Table 7-2 For 335 unit only, 335 unit adopt different PCB cover. Table 7-2 CAUTION The number of indoor units is in the range 0-15 0-9 on ENC1 indicate 0-9 indoor units; A-F on ENC1 indicate 10-15 indoor units ●... -
Page 14: Precautions On Refrigerant Leakage
PRECAUTIONS ON 8.1 Important information for the used refrigerant REFRIGERANT LEAKAGE This product has the fluorinated gas, it is forbidden to release to air. This air conditioner(A/C) adopts inncouous and nonflammable Refrigerant type: R410A; Volume of GWP: 2088; refrigerant. The locating room of the A/C should big engough that GWP=Global Warming Potential any refrigerant leakage is unable to reach critical thickness. -
Page 15: Error Codes
ERROR CODES Error Error description Remarks code Communication error between main board and compressor drive board Inverter-module protection 3 times of P2 protection in 30 minutes Irrecoverable Qty. of indoor units mismatching Irrecoverable High pressure sensor error M-HOME for the indoor and outdoor units does not match Irrecoverable Phase sequence error Communication error between indoor and master unit...
