Fulham FHCS-UNV3-20P-C-SD-40C Manual

FHCS-UNV3-20P-C-SD-40C
Emergency LED Driver
Emergency LED Driver
Universal Voltage: 120-347V~
Output Voltage Range: 12-56V
Output Current: 55-700mA
General Specifications
Input Voltage / Frequency
Input Current
Input Power
Standby Input Power
Input Power Pass-Through Rating (AC Driver Line)
Max Output Rating (LED+ LED- Terminal)
Output Type
Output Power
Output Voltage Range
Output Current Rated
Number of Output Channels
Input Surge Protection
Protections
RFI/EMI
Ambient Operating Temperature Rang
Sound Rating
Battery Type
Battery Voltage
Pack Capacity
Battery Rating
Battery Count
Battery Recharge Time
Battery Discharge Time

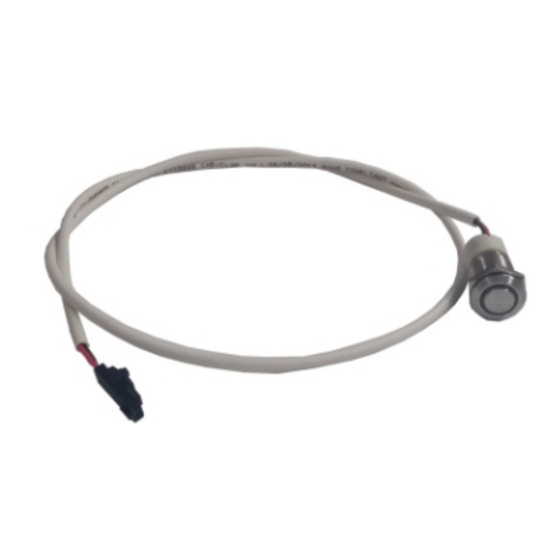

Test Switch Remote Mounting Distance
Service Life
Warranty
Safety Standard
Fulham Co. Inc.: 12705 South Van Ness Ave., Hawthorne, CA 90250 Tel.: 1-323-779-2980 Fax.: 1-323-754-9060.
Specifications subject to change without notice.
Output Wattage: 3-20W
Output Type: LED Class 2
Number of Output Channels: 1 Channel
 Dry and Damp
120-347V~, 50/60Hz
0.12A Max
5W Max
<0.85W
5A
3A, 55V Max
LED Class 2
3- 20W(programmable) ,8W Max @ -40
12-56V
55-700mA
1Channel
3KV/6KV Ring Wave
Output Open Protection
Output Overload Protection
Output Short Circuit Protection
Output Temperature Protection
FCC Part 15A
-20°C To 55°C (-4°F To 131F°) (20W)
A
Lithium
9.6V
4000mAh
38.4Wh
3 Cells
24 Hours
Min 1.5 Hours
20' (6m) Max.
50,000 hours
5 years
UL 924, UL 1310, CSA C22.2 No.141-10
Lithium
(programmable) , 8W Max @-40
, 12W Max @ -30
°C °C
;
-40°C To 55°C (-40°F To 131F°)
order@fulham.com www.fulham.com
°C , 20W Max @-20 °C
, 20W Max @ -20
°C
(7W)
Page 1 of 7
2024-XXX Rev A
