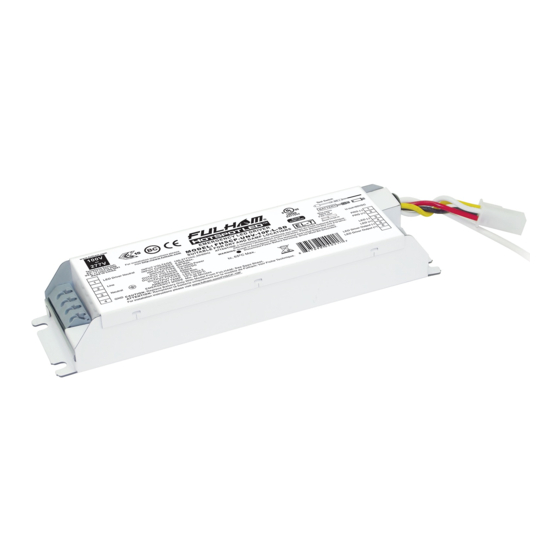

Emergency LED Driver
•
Universal Voltage: 100-277VAC, 50/60Hz
•
Output Power: 10W Max.
•
Output Current: 0.62A
This Driver Will Operate The Following LED Modules: Any LED module designed to accept input voltage range of 16-55VDC and can operate
up to current of 0.62A.
General Specifications
Input Voltage
Input Current
Input Power
AC LED Driver Input Current (LED Driver Neutral)
Standby Input Power
Driver Type
Output Current
Output Voltage Range
Output Power
AC LED Driver Output (LED Driver Output +)
Number of Output Channels
RFI/EMI
Output Type
Battery Type
Battery Capacity Available
Battery Recharge Time
Battery Discharge Time
Test Switch Remote Mounting Distance
Rated Ambient (ta)
Sound Rating
Input Surge Protection
Protections
Service Life
Approvals / Class
Mechanical Data
Fulham extends a limited warranty to the original purchaser or first user for a period of
and operated under normal conditions of use. The usage of appropriate series connected Surge Protection Device (SPD) is required in high risk
applications. For complete terms and conditions, please refer to the Warranty Center at www.fulham.com. Specifications subject to change without
notice.
FHSCP-UNV-10P-L-SD
INSTALLATION INSTRUCTIONS
•
Output Voltage Range of 16-55V
•
Long Case and Terminal
•
IP20
•
U-OUT: 60VDC
100-277V~, 50/60Hz
60mA
6W
3A~ Max.
<0.5W
Constant Power
0.62A
16-55V
10W Max. (1-10W @ 3000mAh Battery, 1-6W @ 1800mAh Battery, 1-5W @ 1500mAh Battery)
3A
Max., 55V
Max.
1 Channel
FCC Part 15A Non-Consumer
LED Class 2
NiCd 9.6VDC / LiFePO4 9.6VDC
3000mAh, 1800mAh, 1500mAh
24 Hours@NiCd / 12 Hours@LiFePO4(Refer To Battery chart)
90 Minutes Min.
20' (6m) Max.
NiCd 0°C to 55°C (32°F to 131°F) / LiFePo4 10°C to 55°C (50°F to 131°F)
A
Line-Neutral kV, Line & Neutral-Ground 2kV
2
Over / Under Voltage Protection
Output Open Circuit Protection
Overload Protection
50,000 hours
RoHS, IP20, CEC Title 20, cULus LISTED
NiCd/LiFePO4
EL-T
5 years
from the date of manufacture when properly installed
IP20
E477042

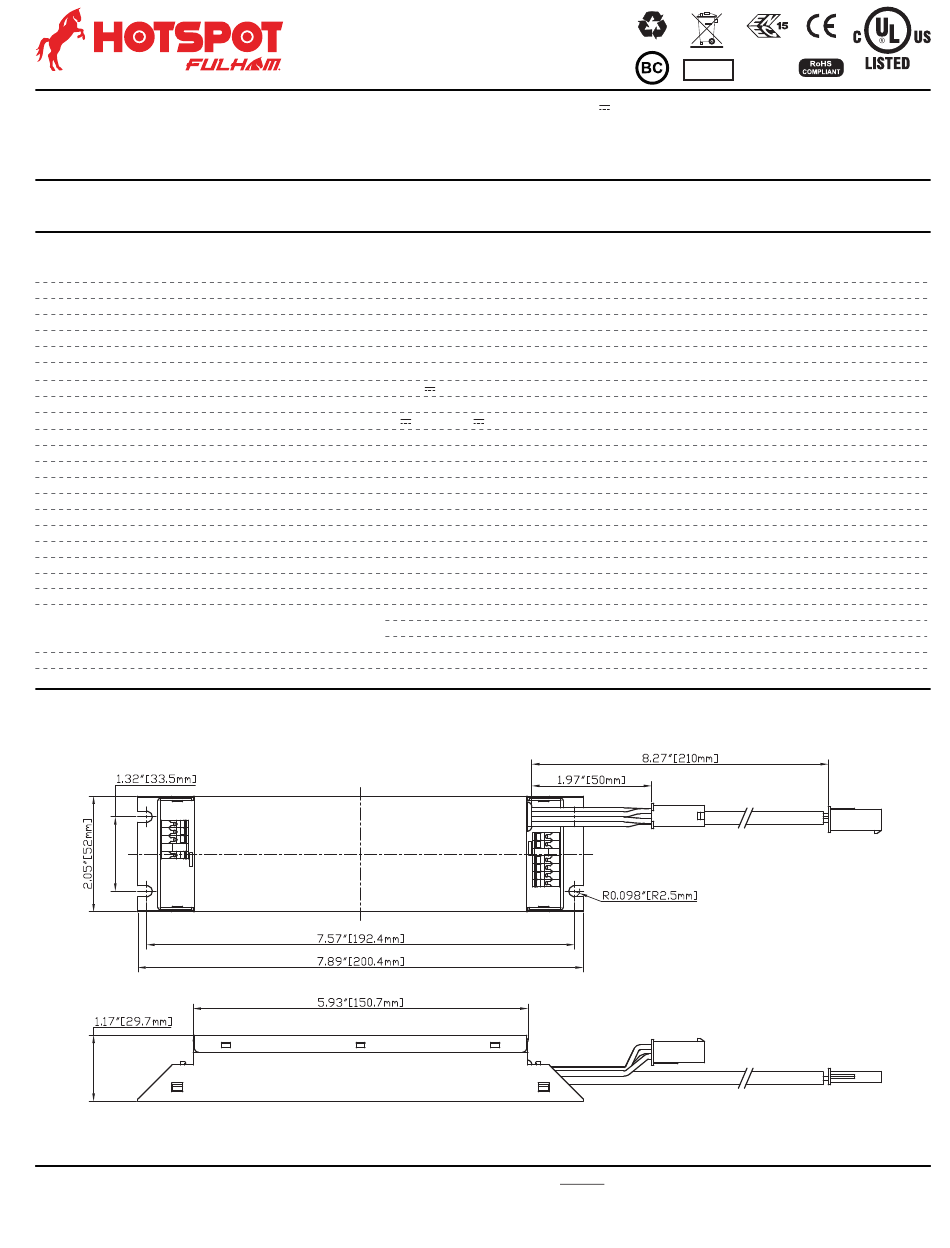

Tolerance=±0.02"
