OttLite CSG9708C Manual

F
G
A
M
K
L

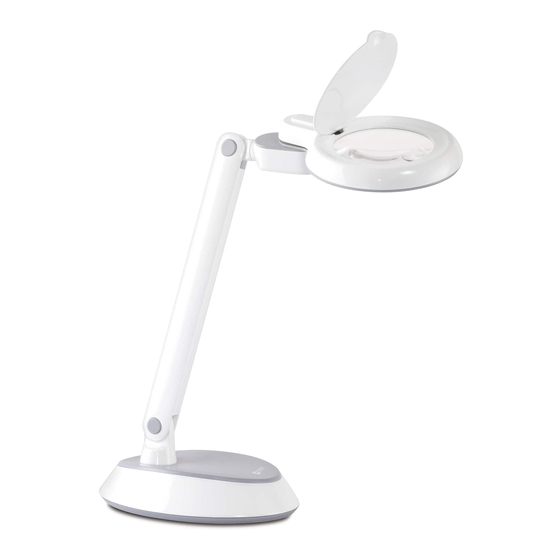

Space-Saving LED Magnifier
CSG9708C CSG9708C-SHPR
INS210627
B
C
E
D
H
ENGLISH
CONGRATULATIONS!
You've purchased the finest in natural lighting technology with
your new OttLite ® product.
PRODUCT REGISTRATION FORM
Please complete the enclosed Product Registration Form and
return it today by mail, or register online by going to:
OttLite.com/warranty
WARNING: To prevent electric shock, make sure the lamp is not
plugged in until all assembly steps are complete.
NOTE: THIS UNIT IS FULLY ASSEMBLED
1. Make sure the lamp is not plugged in to an electrical outlet.
2. Remove lamp from packing placing lamp body (A) base flat on
a steady surface.
3. Connect power adaptor input (K) into connector (L) in the rear-
bottom of arm (D).
4. Plug the AC adapter (M) into a standard household 120V AC
outlet. Note: Only use with the supplied AC adapter to
avoid damage or fire.
5. Turn the lamp ON or OFF by depressing switch (B) located on
the lighted magnifier assembly (C)
6. To reposition the body of lamp simply grasp arm (D) to lower or
raise as needed. A coin can be used to tighten or loosen hinge
nut (G) on lower-end side of arm (D). DO NOT OVERTIGHTEN
as lamp may be damaged.
7. To position the lighted magnifier assembly (C) simply grasp joint-
connection (E) to lower or raise as needed. A coin can be used
J
to tighten or loosen hinge nut (F) on top-end side of arm (D). DO
NOT OVERTIGHTEN as lamp may be damaged.
8. To use magnifier (J) located in lighted magnifier assembly (C),
open protective lid (H). When magnifier (J) is not in use, close
protective lid (H) for safe coverage.
9. Additional features included in this lamp is as follows:
• Lighted magnifier assembly (C) can swivel left-right at joint-
connection (E).
• Lighted magnifier assembly (C) can rotate left-right at joint-
connection (E).
P
SAFETY WARNING:
SHOCK, OR INJURY TO PERSONS
1. Turn lamp OFF and WAIT UNTIL lighted magnifier assembly
(C) and adaptor (M) are cool before handling.
2. The LED circular panel (P) might get hot after several hours of
continuous use, DO NOT place your hands directly on the
LED circular panel.
3. Never use with an extension cord unless the plug can be fully
inserted into the receptacles in the extension cord.
4. Do not alter the plug.
5. The lighted magnifier assembly (C) included with this unit
cannot be replaced by the consumer.
6. INDOOR USE ONLY.
NOTE: The important safety instructions appearing in this
instruction sheet are not meant to cover all possible conditions
and situations that may occur. It must be understood that
common sense, caution, and care must be used with any
electrical product.
PL-0108
Space-Saving LED Magnifier Desk Lamp
CAUTION!
UNATTENDED IN DIRECT SUNLIGHT OR WHERE LIGHT CAN SHINE THROUGH IT AS THIS
CAN POSE A RISK OF FIRE.
CAUTION!
IS DAMAGED, IT SHALL BE EXCLUSIVELY REPLACED BY THE MANUFACTURER OR ITS
SERVICE AGENT OR A SIMILAR QUALIFIED PERSON IN ORDER TO AVOID A HAZARD.
INDOOR USE ONLY.
CAUTION!
WHEN THE LIGHT SOURCE REACHES ITS END OF LIFE THE WHOLE LUMINAIRE SHALL BE
REPLACED.
FCC PART 15
Note: This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to Part
15 of the FCC rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that
the interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference
by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different
from that of the receiver.
• Consult the dealer or an experienced radio/TV technician
for help.
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions:
(1) this device may not cause harmful interference, and
TO REDUCE THE RISK OF FIRE, ELECTRIC (2) this device must accept any interference received, including
interference that may cause undesired operation
CAUTION: Any change or modification to product not expressly
recognized by OttLite Technologies voids OttLite's responsibility
for proper function of product.
CAN ICES-005 (B) / NMB-005 (B)
POWER ADAPTER SPECIFICATION
Input: AC 100-240V, 50/60 Hz, 0.2A
Output: 13.2V DC, 0.28A with a Male DC Plug
INDOOR USE ONLY. NEVER LEAVE THE MAGNIFIER LENS
IF THE EXTERNAL FLEXIBLE CABLE OR CORD OF THIS LUMINAIRE
THE LIGHT SOURCE OF THIS LUMINAIRE IS NOT REPLACEABLE;
REV042621
