OttLite CSDQA02W Manual

F
N
P
H J K L

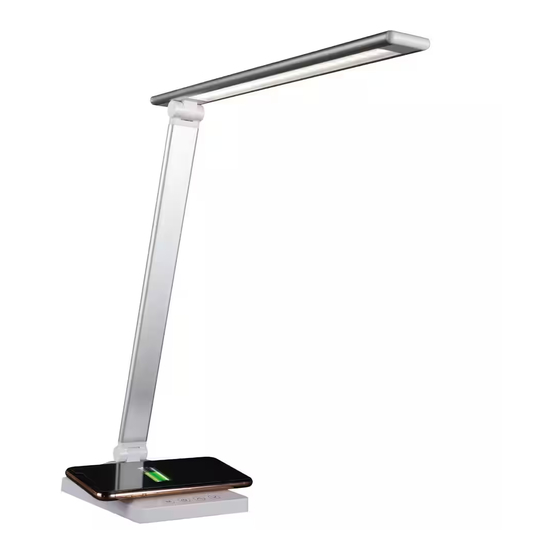

Entice LED Desk Lamp with Wireless Charging
CSDQA02W CSDQA02C CSDQA02W-SHPR CSDQA21W-SHPR
INS220699
E
Q
M
S C
B
A
CSDQA80W-SHPR
ENGLISH
CONGRATULATIONS! You've purchased the finest in natural lighting technology
with your new OttLite product.
®
PRODUCT REGISTRATION FORM
Please complete the enclosed Product Registration Form and return it today by mail, or
register online by going to: OttLite.com/warranty
WARNING: To prevent electric shock, make sure the lamp is not plugged in until
all steps are complete.
NOTE: THIS UNIT IS FULLY ASSEMBLED
1. Remove lamp from packing, placing lamp body base (A) flat on a steady surface.
2. Connect power adapter input (P) into connector (M) in the rear-bottom of the lamp.
3. Plug the power adapter (Q) into a standard household 120V AC outlet. Note:
Only use with the supplied power adapter to avoid damage or fire.
4. Turn the lamp ON/OFF by using power switch (J) located on top of base (A).
Touch panel (B) includes multiple "touch" keys that control the lamp's light
5.
color mode and dimmer functions within each color mode. See Touch Key Panel
Instructions section for operating instructions.
6. Wireless charger for Qi-certified devices (C) is located in the center of base (A).
See Wireless Charging Instructions section for details.
7. To reposition the light, hold base (A) steady and grasp either lamp body (D) or
D shade (E) depending on needed adjustment.
TOUCH KEY PANEL INSTRUCTIONS:
To power lamp and operate LED settings, slightly touch required "key" to achieve
the following:
• Turn lamp "ON/OFF": touch "POWER" key (J) as needed.
• To adjust brightness: touch "UP" key (K) or "DOWN" key (L) as needed.
• To adjust lighting color mode: touch "M" key (H) to switch light color mode; 2700K
(warm white), 3500K (bright white), 5000K (ClearSun LED
WIRELESS CHARGING INSTRUCTIONS:
Wireless charging requires a Qi-certified device. To determine if your device is
Qi-certified, please visit the Wireless Power Consortium website.
To wirelessly charge a device, perform the following:
• Check for a RED light (R) on top of base (A). This signifies a device can be charged.
• Place the device, which supports Qi wireless charging standard, face up on the
middle of the Qi wireless charging icon (C).
• A different light (S) on top of base (A) will turn BLUE noting charging mode is active.
• When the device is centered on the Qi wireless charging icon (C), a solid BLUE
light will indicate the device is charging properly. NOTE: If a solid RED light is
visible, this indicates the device is not charging and needs to be properly centered.
• Check the charge level on your device periodically to determine when device is
fully charged. NOTE: Lamp DOES NOT provide any indication of when device is
fully charged.
CAUTION!
DEVICE MAY BECOME WARM DURING CHARGING. THIS IS NORMAL
AND PART OF THE PROCESS. CHARGING TIMES VARY BY DEVICE.
SAFETY WARNING:
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK,
OR INJURY TO PERSONS
1. Turn lamp off and WAIT UNTIL LAMP HEAD (E) IS COOL before handling.
R
2. The LED panel (F) might get hot after several hours of continuous use DO NOT place
your hands directly on LED light panel.
3. Never use with an extension cord unless the plug can be fully inserted into the
receptacles in the extension cord.
4. Do not alter the plug.
5. The lamp head included with this unit cannot be replaced by the consumer.
6. INDOOR USE ONLY.
NOTE: The important safety instructions appearing in this instruction sheet are not meant
to cover all possible conditions and situations that may occur. It must be understood that
HZ-X16C
common sense, caution, and care must be used with any electrical product.
Entice LED Desk Lamp with Wireless Charging
CAUTION!
IF THE EXTERNAL FLEXIBLE CABLE OR CORD OF THIS LUMINAIRE IS
DAMAGED, IT SHALL BE EXCLUSIVELY REPLACED BY THE MANUFACTURER OR ITS SERVICE
AGENT OR A SIMILAR QUALIFIED PERSON IN ORDER TO AVOID A HAZARD. INDOOR USE ONLY.
CAUTION!
THE LIGHT SOURCE OF THIS LUMINAIRE IS NOT REPLACEABLE; WHEN
THE LIGHT SOURCE REACHES ITS END OF LIFE THE WHOLE LUMINAIRE SHALL BE REPLACED.
CAUTION: Any change or modification to product not expressly recognized by
OttLite Technologies voids OttLite's responsibility for proper function of product.
FCC PART 15
Note: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that the interference will not occur in a particular installation. If this equipment
does cause harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions:
® natural daylight).
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
FCC/IC RF RADIATION EXPOSURE STATEMENT CAUTION:
To maintain compliance with the FCC's RF exposure guidelines, place the product at least
20cm from nearby persons.
To maintain compliance with the IC RF exposure guidelines,place the product at least
10cm from nearby persons.
IC CANADA
This device contains licence-exempt transmitter(s)/receiver that comply with Innovation,
Science and Economic Development Canada's licence-exempt RSS(s). Operation is subject
to the following two conditions:
1. This device may not cause interference.
2. This device must accept any interference, including interference that may cause
undesired operation of the device.
CAN RSS-216/CNR-216
CAN ICES-005 (B)/NMB-005 (B)
POWER ADAPTER SPECIFICATION:
Input: AC 100-240V, 50/60 Hz, 1A
Output: 12V DC, 2A with a Male DC Plug
Qi CHARGER SPECIFICATION:
Output: 5V, 1A or 5 watts
THIS LAMP CONTAINS a 5V, 2,1A USB output port (N) located on the bottom rear of
lamp. USB port can charge items such as tablets, cellular phones, etc.
The "Qi" symbol is a trademark of the Wireless Power Consortium
REV040522
