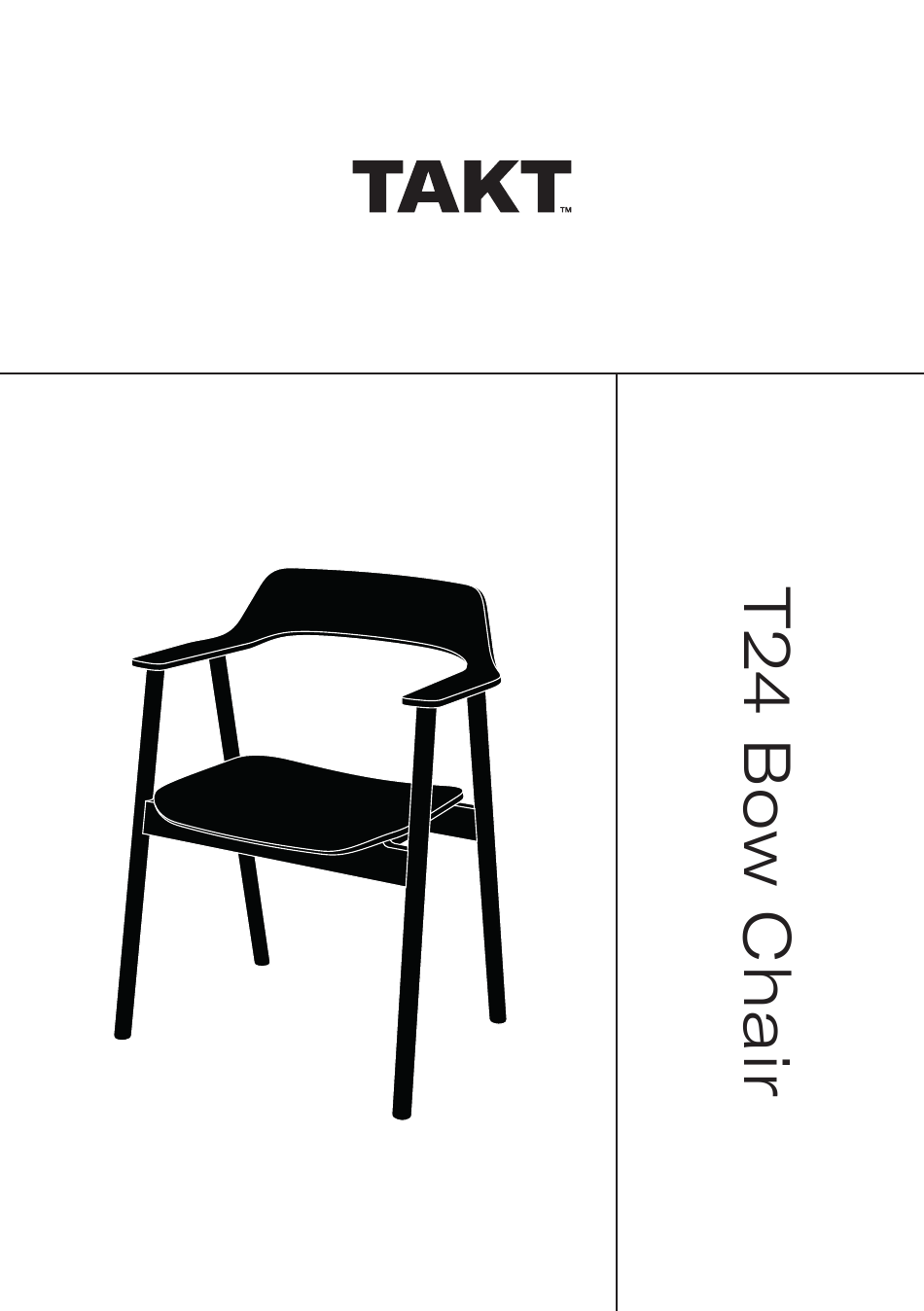

- Page 1 Building Instructions...
- Page 2 Important Notice Only use the listed tools. Do not use power tools. Tighten in accordance with the building instructions. Avoid over-tightening. There is no need for strong force. 1x front leg frame 1x back leg frame...
- Page 3 1x backrest 8x wood dowels 4x screws (60mm) 4x metal collars 4x metal cross dowels 1x seat 4x felt gliders 4x plastic gliders 4x screws (50mm) 1x right apron 4x connecting fi tting house 1x left apron 4x pinol screws 1x Allen key (SW4) 1x Allen key (SW3)
- Page 4 Product Information ‘T24 Bow Chair ’ is a chair designed for indoor use. The chair is tested according to EN 16139 - L1. Weight Materials Backrest: Molded plywood 6,1 kg Seat: Molded plywood 6,4 kg with upholstery Leg frame: Solid wood...
- Page 5 Dimensions 593 mm 471 mm...
- Page 7 Important! Mount the fi ttings in the sequence 1 - 3. Make sure the groove in the metal cross dowel align with the direction of the screw. Make sure the screws easily grip the thread. Do not fully tighten the screws.
- Page 8 Mount the fi ttings in the sequence 1 - 3. Make sure the groove in the metal cross dowel align with the direction of the screw. Make sure the screws easily grip the thread. Do not fully tighten the screws.
- Page 9 The chair must be fi tted with either felt gliders for hard surfaces or plast glides for soft surfaces such as carpets, etc. If you at a later time need to change the gliders these can be clicked off and changed.
- Page 10 Place the seat on the leg frame and mount the screws. Make sure the screws easily grip the thread. Do not fully tighten the screws.
- Page 11 Lightly mount the pinol screws in the connecting fi tting house Make sure the screws easily grip the thread. Place the connecting fi tting house so that the hole in the fi tting align with the hole at the top of the leg.
- Page 12 Place the metal dowels in the holes at the top of the legs.
- Page 13 Push down on seat and make sure all legs are touching the fl oor. Then tighten screws below seat using Allen key (SW4). Push down on backrest to get a tight fi t with the legs. Then tighten screws below armrest using Allen key (SW3).
- Page 14 TAKT offers spare parts We hope that your TAKT ed warranty of 5 years for ‘T24 Bow Chair’. product will serve you on ‘T24 Bow Chair’. The Spare parts are avail- well for many, many warranty covers breakage able from TAKT without years.
- Page 15 4x screws 60mm (metal) 4x metal collars (metal) 1x wooden seat (wood) or upholstered seat (mixed material) 4x connecting fi tting house (metal) 4x metal dowels (metal) 1x backrest (wood) 4x screws (metal) 2x leg frames (wood) 4x glider bases (plastic) 2x aprons (wood) 4x metal cross dowels (metal) 4x screws 50mm (metal)
