Homelegance 5890S Assembly Instruction

PARTS LIST/LISTE DE PIECES
SKETCH /
NO.
ESQUISSER
A
B
C
Step 1/
É t ape 1
A
DO NOT TIGHTEN BOLTS UNTIL COMPLETELY ASSEMBLED.
NE PAS SERRER LES BOULONS JUSQU'À CE QUE LE MONTAGE SOIT
COMPLETMENT TERMINE
MADE IN VIETNAM / FABRIQUÉ AU VIETNAM
INSTRUCTION D'ASSEMBLAGE
Thank you for purchasing this product. Please take time to read and follow
instructions below. Check that you have all parts and hardware before assembly. Parts
apparently missing are often found in packing matterials. If you do not have all parts
listed, call us and they be sent to you immediately
It is recommended to install protective pads under all legs and supports to avoid
damage or scratches when placing furniture on a wood floor or other hard surface,
and to limit indentation and prevent discoloration if placing on carpet.
quand les meubles reposent sur la moquette.
DESCRIPTION/
LA DESCRIPTION
CHAIR BACK /
DOSSIER DE CHAISE
SEAT FRAME WITH CUSHION /
SI È GE
LEG / PIED
B
ASSEMBLY INSTRUCTION
ITEM NO: 5890S

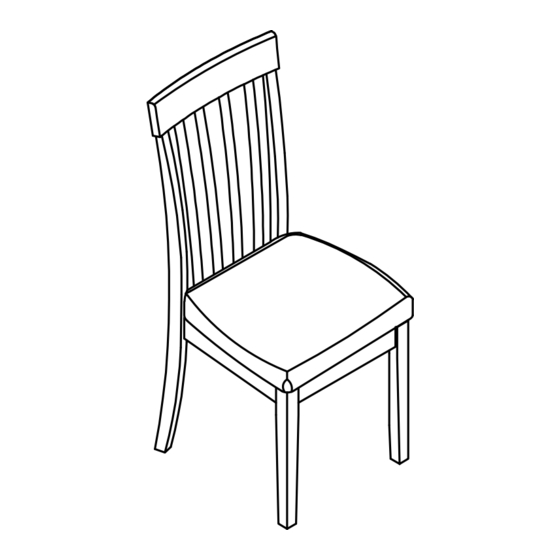

SIDE CHAIR / CHAISE DROITE
HARDWARE LIST/LISTE DE QUINCAILLERIE
Q'TY/
DESCRIPTION /
NO.
LA DESCRIPTION
1 BOLT / BOULON
1PC
2 BOLT / BOULON
1PC
3 BOLT / BOULON
2PCS
LOCK WASHER /
4
RONDELLE D'ARR T
FLAT WASHER /
5
RONDELLE PLATE
6
ALLEN KEY / CL ALLEN
WOODEN DOWEL /
7
CHEVILLE EN BOIS
**ABOVE HARDWARE ARE PACKED IN #5890S FOR ASSEMBLY.
6
3
4
5
1
4
5
à
SIZE / SKETCH /
TAILLE ESQUISSER
3/8"
3/8"
1/16"
1/6'' x 2-1/4''
890S
7
6
X2
Q'TY/
2PCS
4PCS
4PCS
10PCS
10PCS
1PC
1PC
Page 1 of 2/ Pade 1 sur 2
