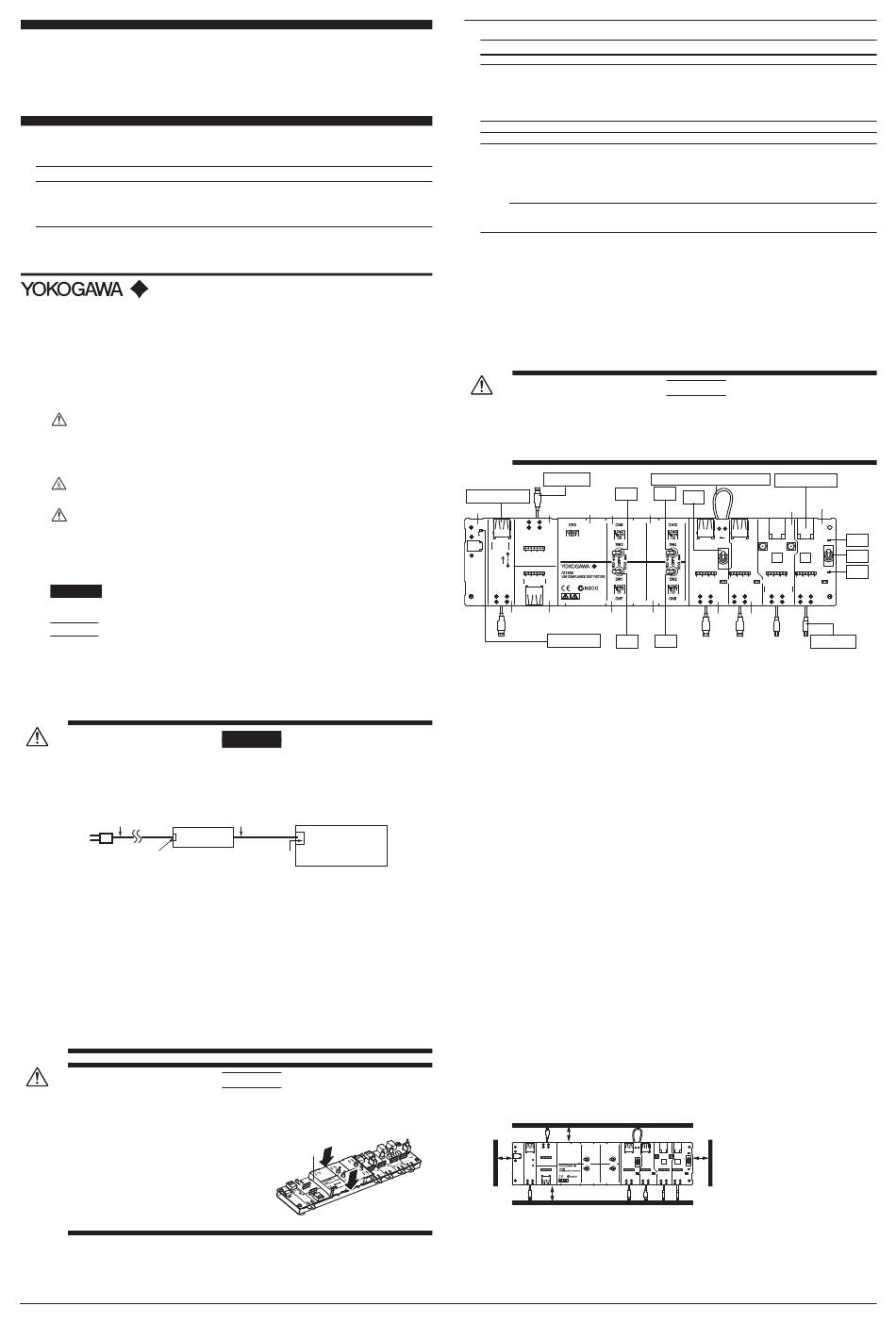

YOKOGAWA 701985 User Manual

User's
USB Compliance
Manual
Test Fixture
This user's manual describes handling of the test fixture used for USB compliance
tests. For USB compliance test procedures, software operating instructions, and other
information, please refer to the following manuals.
Manual Name
USB Compliance Test Software (busXplorer-USB) User's Manual
Universal Serial Bus 2.0 Device Compliance Test Procedure (CD-ROM)
Universal Serial Bus 2.0 Host Compliance Test Procedure (CD-ROM)
Universal Serial Bus 2.0 Hub Compliance Test Procedure (CD-ROM)
2nd Edition : November 2006 (YK)
All Rights Reserved, Copyright © 2006, Yokogawa Electric Corporation
Safety Precautions
To ensure safe and correct operation of the fixture, you must take the safety precautions
given below. The fixture's protective functions may not work if used in a manner not
described in this manual. The test fixture is a dedicated instrument for the DL9240/
DL9240L. Yokogawa bears no responsibility for, nor implies any warranty against damages
occurring as a result of failure to take these precautions.
● The following safety symbols and wording are used on the test fixture.
Warning: Handle with care. Refer to the user's manual or service
manual. This symbol appears on dangerous locations on the instrument
which require special instructions for proper handling or use. The same
symbol appears in the corresponding place in the manual to identify
those instructions.
Hot surface
● Conventions Used in This Manual
Improper handling or use can lead to injury to the user or damage to
the instrument. This symbol appears on the instrument to indicate that
the user must refer to the user's manual for special instructions. The
same symbol appears in the corresponding place in the user's manual
to identify those instructions. In the manual, the symbol is used in
conjunction with the word "WARNING" or "CAUTION."
WARNING
Calls attention to actions or conditions that could cause serious or fatal
injury to the user, and precautions that can be taken to prevent such
occurrences.
CAUTION Calls attention to actions or conditions that could cause light injury to
the user or damage to the instrument or user's data, and precautions
that can be taken to prevent such occurrences.
Note Calls attention to information that is important for proper operation of
the instrument.
The following precautions must be taken to prevent electric shock and other
potentially fatal accidents and damage to instruments.
● To prevent shock or fires, only use the AC adapter and power cable
supplied by Yokogawa specifically for the test fixture. Also, connect a
power supply that meets the specifications of the AC adapter.
Insert the power cable securely into the plug inlet on the AC adapter, and
connect the output cable securely to the test fixture's power connector.
Power cable
AC adapter
Input terminal
Never use an AC adapter or power cable other than the dedicated ones
supplied by Yokogawa. Using the wrong adapter or cable can result in
damage or injury.
Also, never use the AC adapter that came with the test fixture for any
other device.
● Do not allow any electrically conductive objects to come into contact with
the bottom surface of the test fixture.
● Beware of exposed circuits
Due to the structure of the test fixture, certain components may be
exposed. To prevent injury, remove all jewelry such as rings and
wristwatches. Also, make sure not to touch any exposed connectors or
components.
● Never insert your fingers between the metal plates in the center of the
test fixture and the solder-side of the PCB.
● Do not inadvertently twist or pull the USB cable.
The wires inside the cable can break, causing malfunction.
● When shipping or handling, support the test fixture by the center metal
plates and avoid vibration and shock.
Take extra care not to drop the test
fixture. Also, never carry the test fixture
by the USB cable.
● Due to the structure of the test fixture,
certain components may be exposed.
Take precautions against static electricity
when handling.
1. Checking the Product
A name plate with the model name is located on the bottom surface (back side) of the
test fixture. Confirm that the model on the name plate matches that of your order.
Manual No.
IM701985-61E
IM701985-62E
IM701985-63E
IM701985-64E
IM 701985-01E
2nd Edition
WARNING
Output cable
Test fixture
Power connector
CAUTION
Metal plate
Hold at the locations
of the arrows.
MODEL
Model Suffix Code
701985
Power cord -D
-F
-Q
-R
-H
Options /F30
*
/MN1
* When the /MN1 option is selected, cable CN25 of the DEVICE RECEIVER SENSITIVITY TEST block and
cable CN31 of the DEVICE SQ TEST BLOCK will have mini b type connectors.
NO. (Instrument Number)
Please have this number ready when contacting your Yokogawa representative.
Note
For PC system requirements and other specifications, see "USB Compliance Test Software
User's Manual" (IM701985-61E).
2. Product Overview
The test fixture is used together with the USB compliance test software to perform tests
conforming to the USB 2.0 compliance test procedures. The fixture consists of separate
test blocks for the following nine tests: DEVICE SQ TEST, HOST SQ TEST, DEVICE
RECEIVER SENSITIVITY TEST, TRIGGER, INRUSH TEST, LOAD TEST, DROOP
TEST, BACKDRIVE VOLTAGE TEST, AVERAGE CURRENT DRAW TEST. The test
block used differs depending on the test.
Waveforms can be observed by probing the measurement pins and waveform
measurement connectors on the test fixture.
3. Names of Parts
● Take care when handling USB cables and the current measurement loop
attached to the test fixture. Pulling strongly on cables can cause them to
become detached from the test fixture.
● Do not forcefully press the measurement pins and waveform
measurement connectors on the test fixture.
Cable A
CN2
SW3
Receptacle A
HOST SQ DROOP
LOAD
POWER
TEST TEST
TEST(3)
CN2
LED1
F1
[ HOST SQ TEST ]
[ POWER ]
CN1
AVERAGE
CURRENT
DRAW TEST
VBUS
CN100 G D- D+ G
TP4
TP3
VBUS
VBUS D- D+ G
BACKDRIVE
VOLTAGE TEST
CN13
CN4
AVERAGE BACKDRIVE LOAD
CURRENT VOLTAGE TEST
TEST(1)
DRAW TEST
CN4
Power LED
SW1
4. Usage Precautions
Safety Precautions
• Do not remove the case
Do not remove the cover from the top of the test fixture or the case on the bottom.
Load resistors inside the cover and adjacent components become dangerously hot.
• In case of abnormalities
If there are any symptoms of trouble such as strange smells or smoke coming from
the test fixture or AC adapter, remove the power cord from the outlet immediately.
If abnormalities occur, please contact your nearest Yokogawa dealer or
representative.
• AC adapter and power cord
Nothing should be placed on top of the AC adapter or power cord. The AC adapter
and power cord should also be kept away from heat sources. When removing the
power cord plug from the outlet, always pull by the plug, never pull by the cord. When
removing the AC adapter output cable from the test fixture, hold by the plug and pull
straight out. Do not pull by the cord. If the cord is damaged, contact your dealer for
replacement.
General Handling Precautions
• Do not place anything on top of the test fixture
Never place other instruments or objects containing water on top of the test fixture.
Doing so can lead to malfunction.
• Do not apply shock to the test fixture
Never apply physical shocks to the connectors, switches, or other components.
• Take proper care when carrying
Do not hold by the USB cable. Also, hold the test fixture firmly by the center metal
plates, and do not drop the fixture.
• Extended periods of non-use
Remove the power cord from the outlet.
• Cleaning
When cleaning, remove the power cord from the outlet, then wipe gently with a soft,
dry cloth. Also, never immerse the test fixture in liquid, nor use any detergents or
abrasives. Do not use any volatile solvents such as benzine.
Installation Conditions
Install the fixture so that the following conditions are met.
• Flat horizontal location
• Well ventilated location
• Place the test fixture on a stable, horizontal surface. Also, always orient the fixture
with the component side up.
• Maintain a gap of 10 cm or more on all sides of the test fixture.
10 cm or more
VBUS
10 cm
or
VBUS
more
10 cm or more
Do Not Install the Fixture in the Following Places
• In direct sunlight or near heat sources
• Where an excessive amount of soot, steam, dust, or corrosive gas is present
• Near strong magnetic field sources
• Near high voltages or power lines
• Location where mechanical vibration is high
• In an unstable place
• On an unleveled surface
Specification
USB Compliance test fixture
UL/CSA Standard power cord (Part No.:A1068WD)
VDE Standard power cord (Part No.:A1071WD)
BS Standard power cord (Part No.:A1069WD)
AS Standard power cord (Part No.:A1070WD)
GB Standard power cord (Part No.:A1076WD)
USB compliance software
Mini B connector type test fixture
CAUTION
Current measurement loop
Receptacle B
SW4 DEVICE
SW5
RECEIVER
LOAD
SENSITIVITY
TEST(4)
TEST
TP2 TP1
CN20 CN15
CN30 CN34
D- D+
SW5
RL1 RL2
CN28 CN29
[DISCHARGE]
1
[OFF]
1
[TEST ON]
CN26
CN17
CN12
CN19
G D+ D- G G D+ D- G CN14 G D- D+ G G D- D+
GND VBUS GND VBUS
DEVICE RECEIVER
[INRUSH TEST] [TRIGGER]
SENSITIVITY TEST [DEVICE SQ TEST]
GN16 CN11 CN25
LOAD INRUSH TRIGGER
TEST(2) TEST
CN16 CN11 CN31
CN25
SW2
10 cm
or
more
IM 701985-01E 1/2
2nd Edition
DEVICE SQ TEST
LED3 LED3
[TEST]
SW8
SW8
1 1
LED2
[ I N I T ]
CN32 LED2
G
GND VBUS
CN35
CN31
Cable B
