User's
Manual
This manual explains how to use additional option licenses to add options to a DL350 ScopeCorder. To ensure
correct use, please read this manual thoroughly before beginning operation.

Contents of the Package

The following items are included in the package. If the wrong items have been delivered or if items are missing,
contact your nearest YOKOGAWA dealer.
Item Description
Product Information Contains the model and suffix code of the option license, the license key, and the instrument
number of the DL350 that the option is to be added to. To add the option to the relevant
product, the license key written on this sheet is necessary. Keep this sheet in a safe place.
Suffix Code Label A label that proves that the option has been added to the relevant product.
After adding the option, be sure to affix this label on the relevant product.
User's Manual This manual.

Firmware Version That Options Can Be Added To

The options that you purchase can be added to DL350 firmware version below.
Model
Firmware version

Installing an Option

Checking the Product That the Option Will Be Added To

1.
Check that the instrument number of the DL350 that you want to add the option to matches the
instrument number written on the Product Information sheet.
If you try to add an option to a DL350 with a different instrument number, an error will appear in step 7.

Starting the DL350

2.
Turn on the DL350 power switch to start the DL350.
For details on how to turn on the power switch, see in the DL350 Getting Started Guide (IM DL350-03EN).

UTILITY System Menu

3.
On the waveform screen, tap MENU > Utility > System. The system screen appears.
4.
Tap Others tab.

Adding an Option

5.
Tap Enter License Key under Option Installation to display a keyboard.

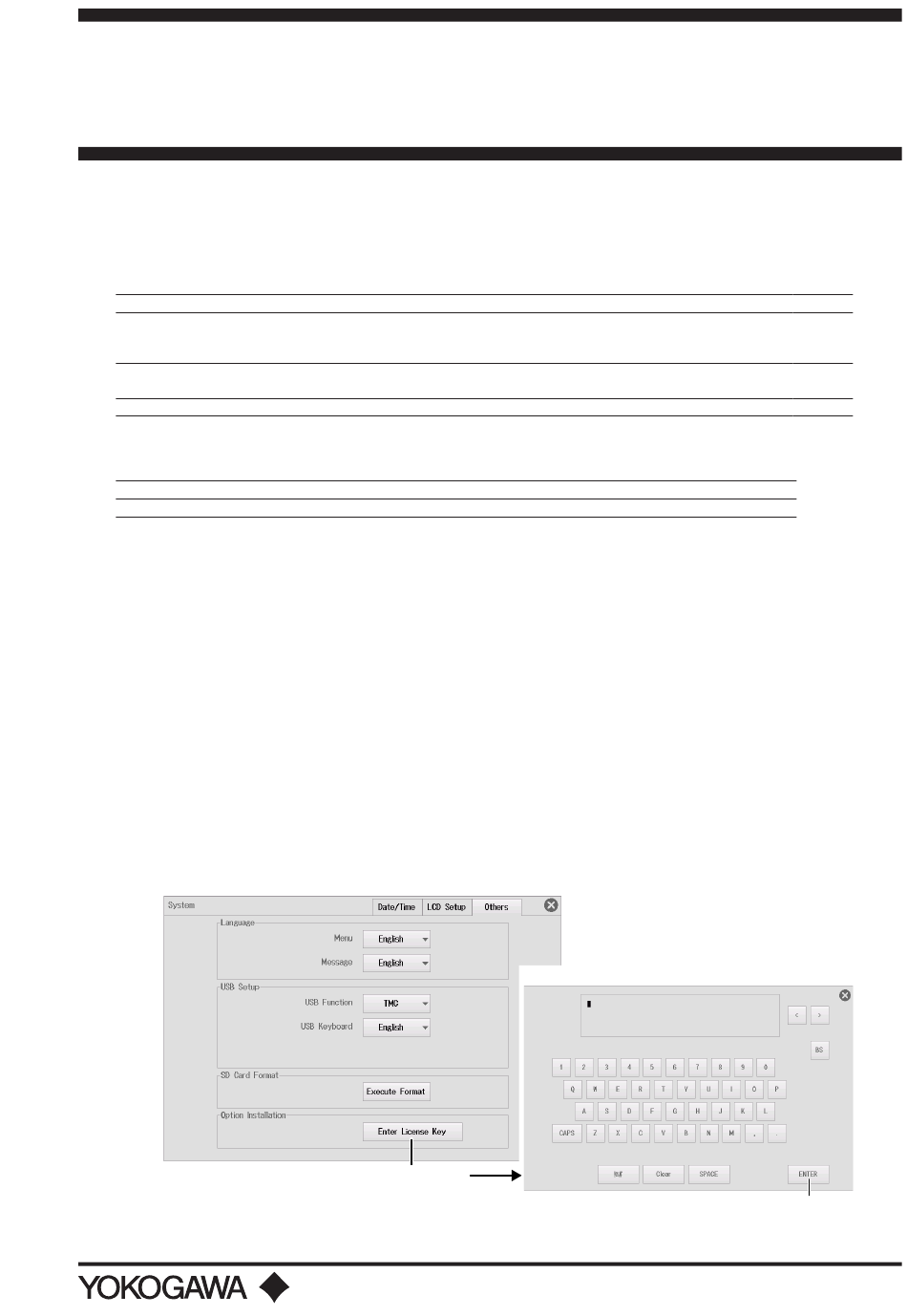

System Screen
Model 709830
Additional Option License
for the DL350
DL350
1.10 or later that supports the options that you will add
Enter License Key
1st Edition: December 2017 (YMI)
All Rights Reserved, Copyright © 2017 Yokogawa Test & Measurement Corporation
Printed in Japan
Keyboard
Quantity
1 sheet
1 sheet
1 sheet
ENTER
IM 709830-01EN 1/2
1st Edition
