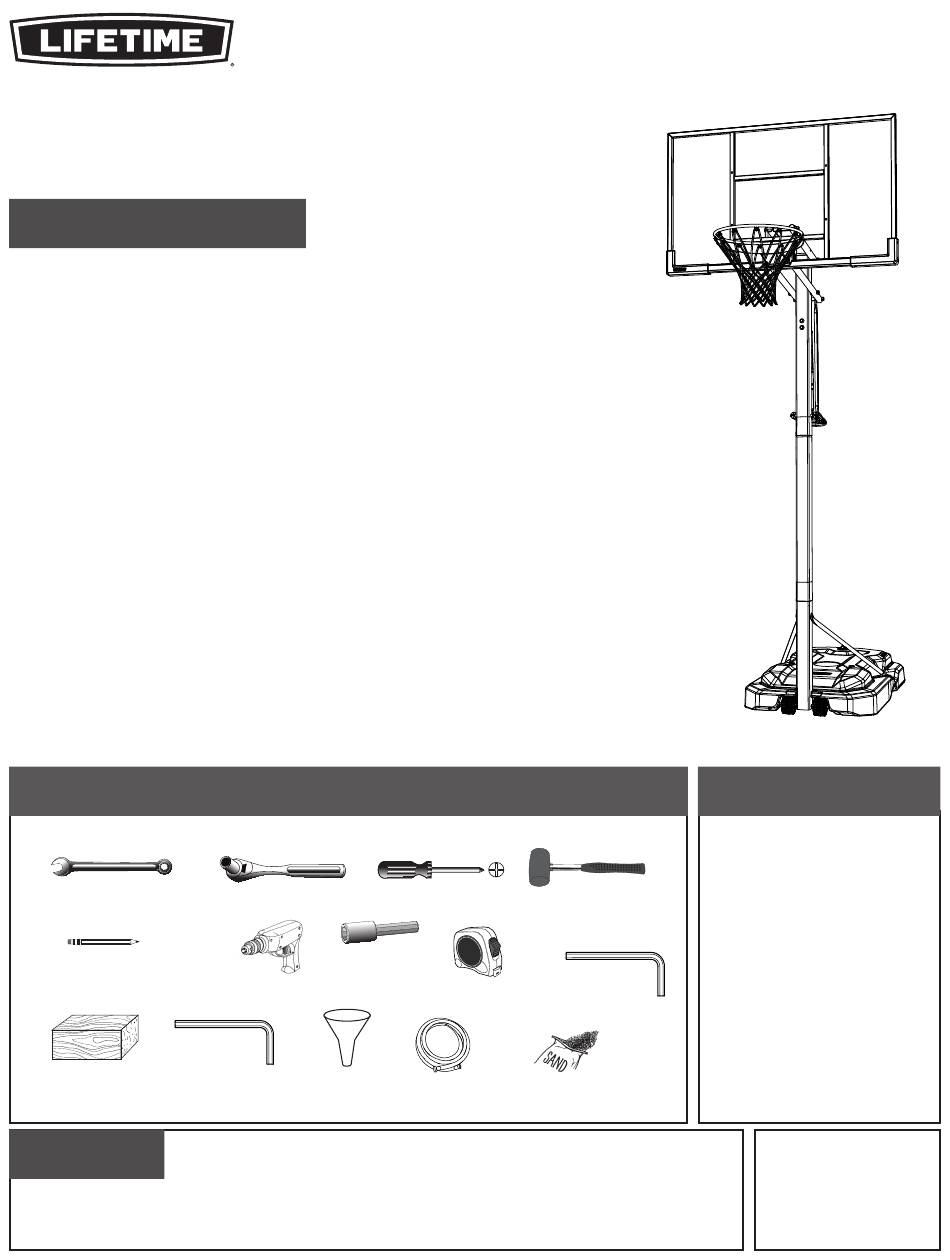

POWER LIFT
BASKETBALL SYSTEM
MODEL 90682
BEFORE ASSEMBLY:
• Decide with what to fi ll the base
(sand is recommended, see page 30)
• At least 2 adults are recommended for setup
IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY
Save this instruction in the event that the manufacturer must be contacted to obtain replacement parts.
TOOLS REQUIRED
3/8", 1/2", 9/16", 3/4"
(2)
(1)
(1)
QUESTIONS?
CONTACT LIFETIME CUSTOMER SERVICE:
Dial 1-800-225-3865
™
1/2"
(2)
3/8" Nut Driver
(1)
1/4"
(1)
(1)
Live Chat:
www.lifetime.com/customerservice/home
(click on the "Live Chat" tab)
ASSEMBLY INSTRUCTIONS
(1)
(1)
3/16"
(1)
(2)
(1)
(375 lb)
For Customer Service in Mainland Europe
and the United Kingdom,
E-mail: csinternational@lifetime.com

TABLE OF CONTENTS

Icon legend...................................2
Warnings & notices........................3
Pole assembly...............................4
Pole-to-base assembly..................9
Handle assembly.........................24
Final assembly............................29
Maintenance..........................34
Warning sticker...........................35
Registration.........................36
Warranty................................39
Model Number: 90682
Product ID:
