The Basement Watchdog SIT-33D Instruction Manual & Safety Warnings

Basement Watchdog
Sump Pumps
Instruction Manual &
Safety Warnings
Models SIT-33D
and
SIT-50D
Para instrucciones
en español ver
página 5
Voir instructions
en français
à la page 9

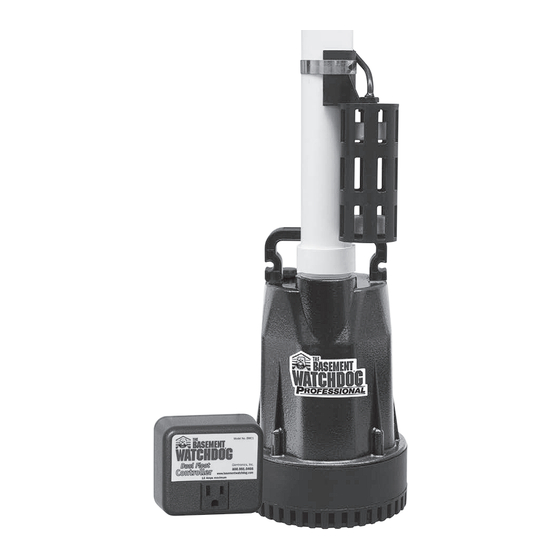

Items Included:
Pump
Dual float and controller
Stainless steel hose clamp
⅓ HP Pump ½ HP Pump
SIT-33D SIT-50D
Important Safety Instructions
SAVE THESE INSTRUCTIONS. This manual contains important SAFETY WARNINGS
and OPERATING INSTRUCTIONS for the Basement Watchdog pumps. You will need to
refer to it before attempting any installation or maintenance.
ALWAYS keep these instructions with the unit so that they will be easily accessible.
Failure to read and follow these warnings and instructions could result in property
damage, serious injury, or death.
Risk of electric shock. To reduce this risk, observe the
WARNING
!
following precautions.
• ALWAYS disconnect the pump from the power source before servicing or making
adjustments.
• NEVER handle the pump or motor with wet hands or when standing on a wet or damp
surface while the pump is plugged into the power source.
• MAKE SURE THERE IS A PROPERLY GROUNDED RECEPTACLE AVAILABLE. This pump is
wired with a 3-prong grounded plug. To reduce the risk of electric shock, be certain
that it is only connected to a properly grounded, 3-prong receptacle. If you have a
2-prong receptacle, have a licensed electrician replace it with a 3-prong receptacle
according to local codes and ordinances.
• NEVER bypass grounding wires or remove the ground prong from the plug.
• DO NOT use an extension cord. The electrical outlet should be within the length of
the pump's power cord, and at least 4 feet above the floor level to minimize potential
hazards from flood conditions.
• DO protect the electrical cord from sharp objects, hot surfaces, oil, and chemicals.
Avoid kinking the cord.
• MAKE SURE the supply circuit has a dedicated fuse or circuit breaker rated to handle
the power requirements noted on the nameplate of the pump.
To reduce the risk of hazards that can cause injury or
CAUTION
!
property damage, observe the following precautions.
• DO NOT use the power cord or strain relief to carry the pump. Use the pump handle.
• DO NOT pull on the float switch cord.
• DO NOT expose the control unit to water, rain or snow.
• DO NOT place the controller on the floor. The electrical outlet should be within the
length of the pump's power cord and at least 4 ft above the floor.
• DO NOT operate the pump or control unit if it has been damaged in any way.
• DO NOT use sump pumps in pits handling raw sewage, salt water, or hazardous
liquids. This product is for ground water use only.
• DO NOT disassemble the pump or control unit. When service is required, contact
Glentronics technical support at 800-991-0466, option 3. Return the product to the
manufacturer for any repairs at the following address:
Glentronics, Inc., 645 Heathrow Drive, Lincolnshire, IL 60069
•
When installing or replacing a primary sump pump you should also install a battery
backup sump pump system.
Specifications ⅓ HP Model SIT-33D
GPH @ 0'
GPH @ 10'
Pump diameter
Volts 115V, 60Hz
Amps
Dual Float
& Controller
½ HP Model SIT-50D
3720 4400
3100 3540
6.2" 6.2"
115V, 60Hz
3.5 4.2
You may also need:
A 1½" PVC pipe adapter to screw
into the discharge hole on top of
the pump
1½" rigid PVC pipe to connect to
the existing plumbing
A check valve or rubber union
PVC pipe cleaner and cement
Wire ties or hose clamps
