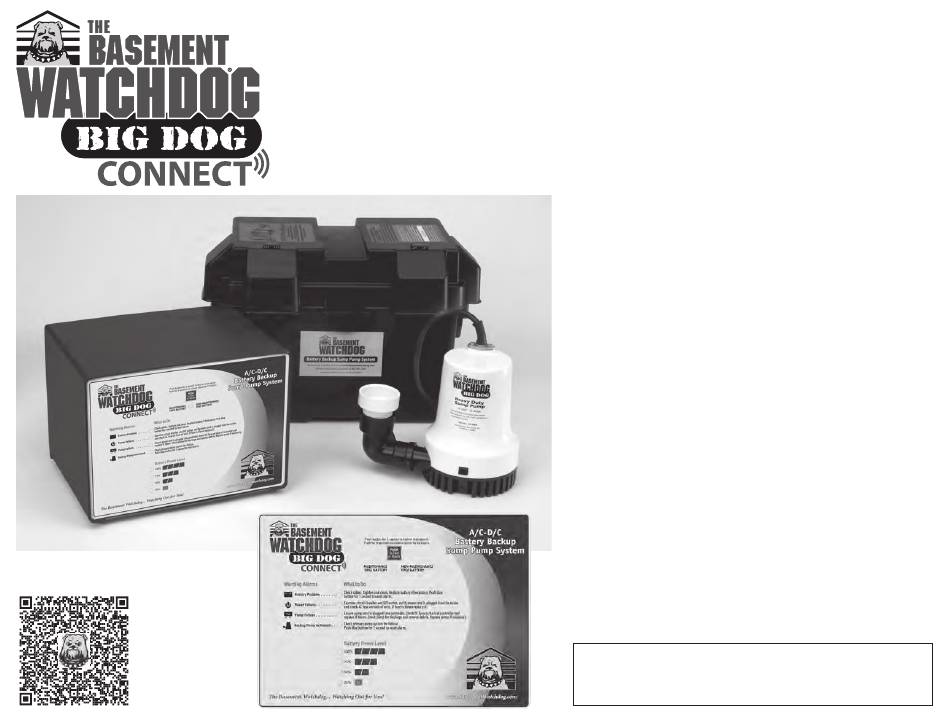

Instruction Manual & Safety Warnings

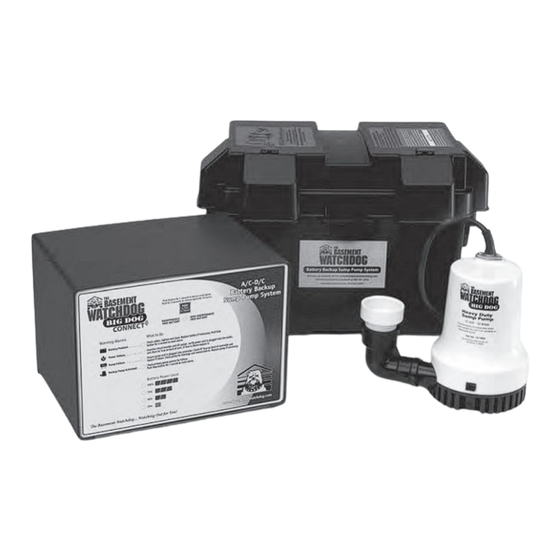

Battery Backup Sump Pump System
Model BWD12-120C
Table of Contents
Important Safety Warnings
and Instructions
Electrical precautions
2
Battery preparation
2
Battery precautions
2
Introduction
Items included in system
3
Additional items needed
3
System specifications
3
Replacement parts list
3
Pump & Pipe
Installation Instructions
Installation options
4
Direct discharge to outside
5
Connection to existing discharge 6
Direct discharge for narrow sumps 7
Connection to existing discharge
for narrow sumps
8
Battery Instructions
9
Control Unit Connections
Positioning the float switch
9
Connecting the pump
9
Connecting the battery
9
Connecting two batteries
9
Connecting to AC power
9
IMPORTANT: Even if you have the Basement Watchdog backup sump pump
system installed by someone else, you must read and follow the safety
information contained in this manual. Failure to do so could result in
property damage, serious injury, or death.
Understanding the Warning
Lights and Alarms
Silencing the alarm
10
Battery problem
10
Cleaning battery terminals
10
Replacing the battery
11
Power failure
12
Battery fuse has blown
12
Pump failure
12
Backup pump activated
12
Replacing the pump
13
Battery power level
13
Testing the System
Testing the float switch
13
Using the Remote Notification
Remote Terminal
13
Remote Alarm
13
USB Data Port
14
Connect Module
14
Maintenance Check List
14
Parts & Service Information
Technical support
14
Warranty
14,15
Troubleshooting Guide
15
Other Products
16
