Kodak ESP 5200 Start Here Manual

Kodak ESP 5200 Start Here Manual

Esp 5200 series
Hide thumbs Also See for ESP 5200:
Table of Contents

Advertisement

Quick Links

See also: User Manual

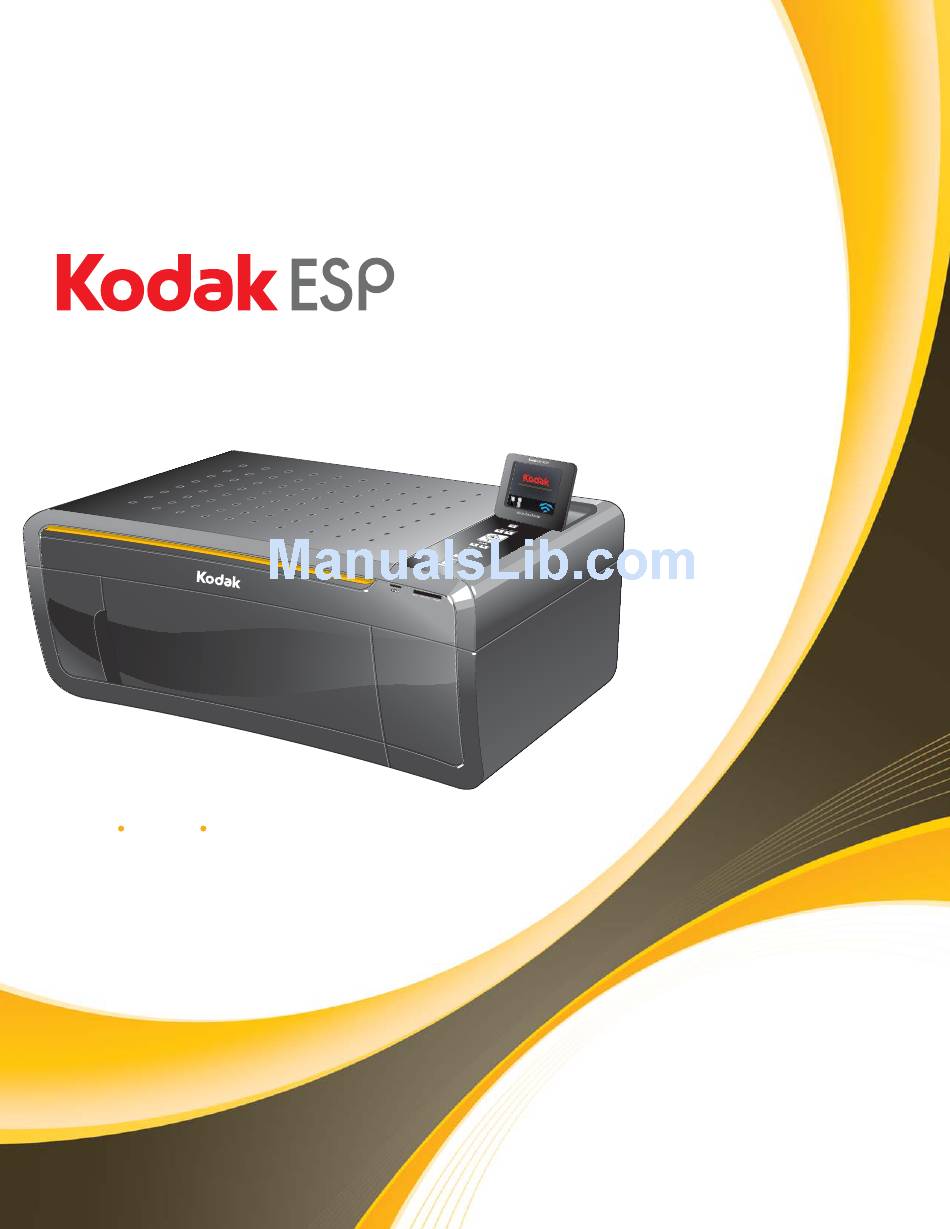

Start Here
All-in-One Printer
Print Copy Scan
Includes Information on the:
ESP 5250 All-in-One Printer
ESP 5260 All-in-One Printer
5200 Series
Note: A USB 2.0 cable is required to connect
your KODAK All-in-One Printer to your
WINDOWS or MACINTOSH OS Computer.
Available in the KODAK Store or see
your local retailer.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ESP 5200 and is the answer not in the manual?

Questions and answers

Related Manuals for Kodak ESP 5200

Summary of Contents for Kodak ESP 5200

  • Page 1 Print Copy Scan Includes Information on the: ESP 5250 All-in-One Printer ESP 5260 All-in-One Printer Note: A USB 2.0 cable is required to connect your KODAK All-in-One Printer to your WINDOWS or MACINTOSH OS Computer. Available in the KODAK Store or see...

  • Page 2: Unpacking The Printer

    Remove all shipping tape from the outside of the printer. Printer Access Door Scanner Lid b. Lift the printer access door. c. Remove all shipping tape and foam pieces from the inside of the printer. d. Close the printer access door. www.kodak.com/go/aiosupport...

  • Page 3: Connecting The Power

    • power cord to the power source Do not connect the USB cable to the printer until instructed during software install. b. Remove the plastic film from the LCD and raise the display. c. Press ON d. Select your language and press OK.

  • Page 4: Inserting The Printhead

    Do not touch the copper-colored contacts. c. Remove the two plastic protective shields. Carriage d. Place the printhead into the carriage. Insert at the angle shown. e. Push firmly against the target label of the printhead until you hear a loud snap. www.kodak.com/go/aiosupport...
  • Page 5 Handle ink cartridges carefully to avoid ink transfer. c. Insert the black ink cartridge into the printhead. d. Press down on the ink cartridge until you hear it click into position. e. Repeat steps 4a - 4d with the color ink cartridge .
  • Page 6 Make sure the left paper-edge guide is to the far left. Paper Tray Extender e. Carefully fan and stack the paper, then insert it into the tray. f. Move the paper forward until it stops. g. Move the left paper-edge guide until it stops.

  • Page 7: Connecting To A Computer Or Network

    Connecting to a Computer or Network Choose one of the following options to connect your new printer to your computer. Refer to the corresponding sections for more information on connecting to a computer or network. Allows you to connect to your printer using a USB cable.

  • Page 8: Wireless (Wi-Fi) Connection

    1. Select Push Button Configuration on the LCD display. 2. Select WPS on the LCD display. 3. You will have two minutes to push the WPS button on your router (this may either be a physical button on the router, or a virtual button in the router’s software).
  • Page 9 Select your wireless network from those listed and press OK. If the name (the SSID) of your network is not listed, make sure your wireless router is turned on and within range.
  • Page 10 Start > Programs > Kodak > Kodak Printer Network Setup Utility. Follow the on-screen instructions. 4. To print to your Wi-Fi connected printer, choose Kodak 5250 - XXXX Printer or 5260 - XXXX Printer (where XXXX is a number unique to your printer).
  • Page 11 NOTE: If your computer does not have a CD drive, go to www.kodak.com/go/downloads to download the software. b. If instructed, connect the USB cable to the USB port on the printer and to your computer. Continue to follow the on-screen instructions until installation is complete.
  • Page 12 Installing Software on MACINTOSH OS a. Connect the USB cable to the USB port on the printer and to your MACINTOSH Computer. b. Load the KODAK All-in-One Printer Software CD into the CD drive. Follow the on-screen instructions. If the installer window does not open, double-click the KODAK All-in-One Printer Software CD icon on the desktop.

  • Page 13: Warranty Information

    Warranty service will include all labor as well as any necessary adjustments and/or replacement parts. If Kodak is unable to repair or replace a Product, Kodak will, at its option, refund the purchase price paid for the Product provided the Product has been returned to Kodak together with proof of the purchase price paid.

  • Page 14: Safety Information

    • Do not plug the AC adapter into a household extension cord. • If the power cord or plug is frayed or damaged, the equipment gets wet, or the equipment does not operate normally when the operating instructions are...
  • Page 15 Registration has its rewards—including a terrific offer. Register your KODAK All-in-One Printer and get great support, expert tips, free software downloads—plus a phenomenal deal on inkjet supplies to get you started. Simply register right away when prompted during software installation or on the web at www.kodak.com/go/register.
  • Page 16 1. Power cycle the printer by unplugging the printer. Wait 5 seconds, and then plug the power cord back into the printer. 2. Confirm that you are using a USB 2.0 cable. You can purchase a USB 2.0 cable online at www.kodak.com/go/usbcable...
