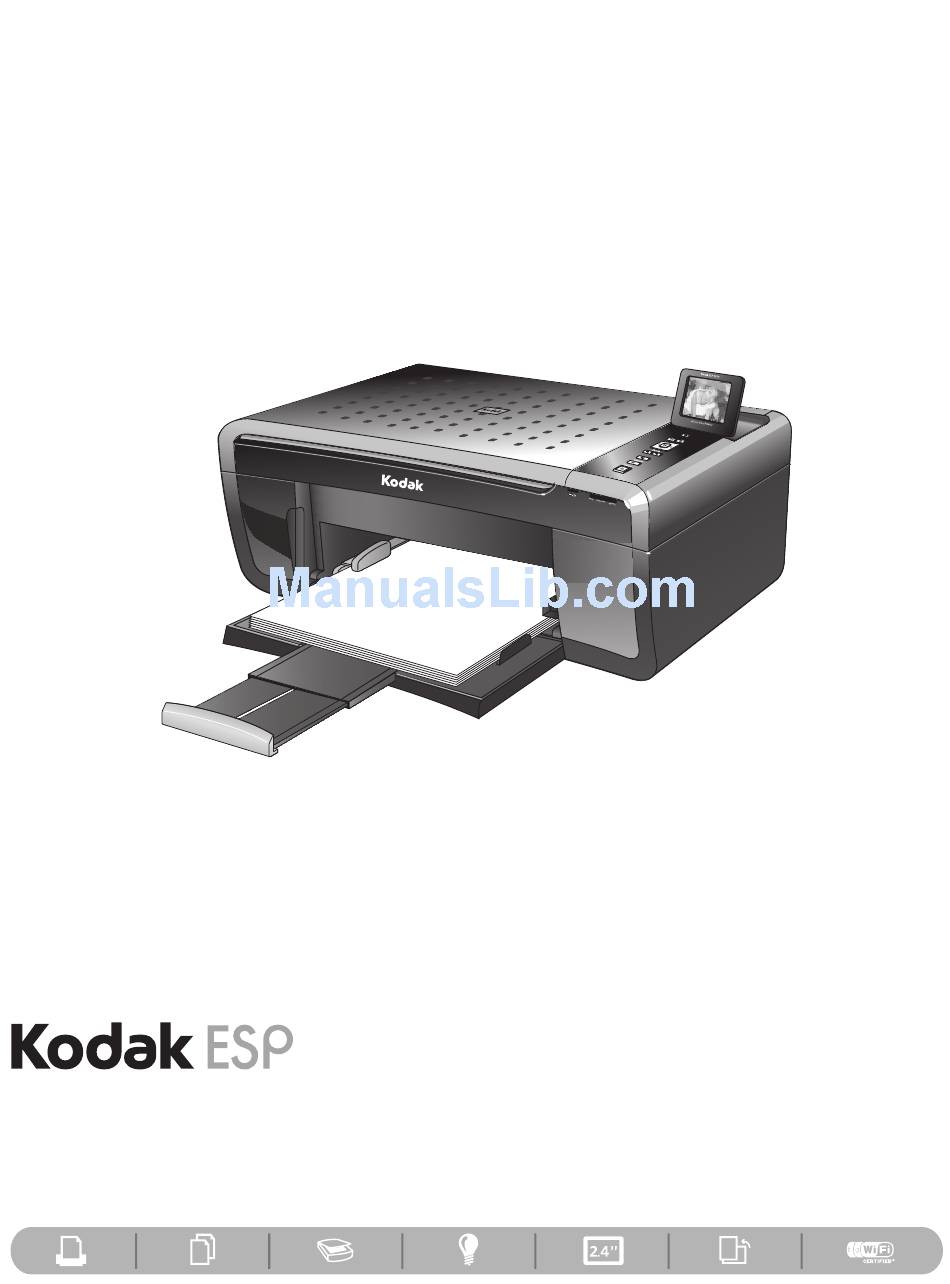

- Page 1 User Guide • Guide d'utilisation 5200 Series All-in-One Printers • Imprimantes tout-en-un...
- Page 2 Support is available! Go to www.kodak.com/go/aiosupport, and select your printer model for: • Frequently Asked Questions (FAQs) • software or firmware upgrades • Extended User Guide • and more! If you prefer, you can chat online, send us an e-mail, or call for technical support. Go to www.kodak.com/go/contact.
-
Page 3: Table Of Contents
LCD Screen Safety........................15 Ink Cartridge Safety ........................15 Warranty Information ........................16 Limited Warranty ......................... 16 Limited Warranty Coverage ...................... 16 Limitations............................16 Your Rights............................. 17 Outside the United States and Canada .................. 17 Declaration of Conformity........................ 17 www.kodak.com/go/aiosupport3... -
Page 4: Printer Overview
Printer Overview This printer lets you print, copy, and scan pictures and documents. Components Wi-Fi connectivity LED Printhead with ink cartridges installed Memory card slot 10 Right paper-edge guide Control panel 11 Paper tray 12 Paper tray extender / paper stop... -
Page 5: Control Panel
Stops the current operation and returns to the menu Rotate button Changes the orientation of the displayed picture OK button Selects a menu item, accepts a zoom setting, and allows you to continue with the current operation 10 Back button Displays the previous screen... -
Page 6: Home Center Software
• Iron-on transfers — all inkjet varieties on 8.5 x 11-in. or A4 sheets Paper sizes 4 x 6 in. / 10 x 15 cm to 8.5 x 14 in. / 22 x 36 cm For more information about paper types and sizes, see the Extended User Guide www.kodak.com/go/esp5250support... -
Page 7: Loading Plain Paper
The paper tray capacity is 100 sheets of plain paper. To load plain paper: 1. Open the paper tray. 2. Pull out the paper tray extender until it is fully extended. 3. Lift the paper stop. left paper-edge guide paper stop paper tray extender 4. -
Page 8: Loading Photo Paper
To load photo paper: 1. Remove any paper from the tray. 2. Fan and stack the photo paper, then insert the paper (short side first) into the tray with the logo side facing up and the glossy side down. If the photo paper is loaded the wrong way, the ink on your pictures will IMPORTANT: be wet and the image quality will be affected. -
Page 9: Basic Functions Printing
2. Select File > Print. 3. In the Print window, select your KODAK Printer. 4. Choose the pages to print, number of copies, etc, then click OK (on a computer with WINDOWS OS) or Print (on a computer with MAC OS). - Page 10 1. Insert the memory card into the memory card slot. memory card slot 2. Select a print size. a. Press Back. b. If necessary, use the navigation buttons to select View and Print Photos. c. Press OK. d. Press to select Print Size.
-
Page 11: Copying
KODAK ESP 5200 Series All-in-One Printer Copying To copy a document or a picture: 1. Lift the scanner lid, and place the document or picture face down on the glass. 2. Close the lid. 3. Press Home. 4. Press to select Copy Document or Copy Photo, then press OK. -
Page 12: Scanning
Before scanning, make sure that the printer is connected to your computer with a USB 2.0 cable or a wireless network. To scan a document or picture: 1. Lift the scanner lid, and place the document or picture face down on the glass. 2. Close the lid. -
Page 13: Troubleshooting
• Make sure the power cord is connected to the AC adapter and is plugged into an outlet or power strip. Printer not detected • Make sure that your printer is plugged in and turned on, and that the on/off LED is glowing steadily. • If you are using a USB cable, make sure that: –... -
Page 14: Getting Help On The Web
Paper jam • Check for paper in the rear-access cleanout area. • Open the printer access door and gently remove any paper from inside the printer. • Make sure the paper in the tray is free of tears or creases. -
Page 15: Safety And Warranty Information Safety Information
• Do not attempt to repair or service this product. • If the power cord or plug is damaged, if any liquid has been spilled onto the product, if the product has been dropped or the case damaged, if the product does not operate normally or exhibits a major change in performance level, unplug this product and contact Kodak at www.kodak.com/go/contact. -
Page 16: Warranty Information
If Kodak is unable to repair or replace a Product, Kodak will, at its option, refund the purchase price paid for the Product provided the Product has been returned to Kodak together with proof of the purchase price paid. Repair, replacement, or refund of the purchase price are the sole remedies under this warranty. -
Page 17: Your Rights
This warranty gives you specific rights, and you may have other rights which vary from state to state or by jurisdiction. Your statutory rights are not affected. - Page 18 © Eastman Kodak Company, 2010 Rochester, NY 14650 MC/MR/TM: Kodak, ESP, and EasyShare. Printed in China 1K5983...
