Operating
Instructions

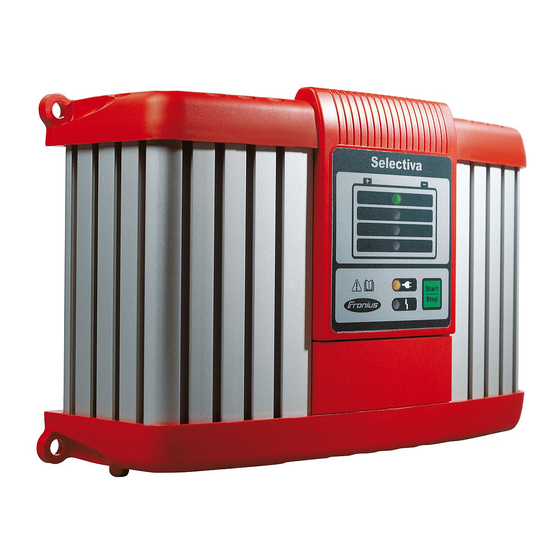

Selectiva
1 kW
EN
Operating Instructions
42,0426,0040,EN
013-05062024

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Selectiva and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Fronius Selectiva

  • Page 1 Operating Instructions Selectiva 1 kW Operating Instructions 42,0426,0040,EN 013-05062024...
  • Page 3: Table Of Contents

    Wall bracket option Preparations for security lock Installation Charging the battery Starting charging Finishing charging Interrupting charging Setup menu General remarks Accessing the Setup menu Selecting the characteristic type Troubleshooting Safety Protection devices Charging errors Technical data Selectiva 1 kW...
  • Page 4: Safety Rules

    Safety rules General The device has been manufactured in line with the state of the art and according to recognized safety standards. If used incorrectly or misused, however, it can cause: Serious or fatal injury to the operator or third parties Damage to the device and other material assets belonging to the operating company Inefficient operation of the device...
  • Page 5: Dangers Due To Grid And Charging Current

    IMPORTANT! Ensure that the grid connection is earthed properly! Dangers due to Working with battery chargers poses a number of dangers, such as: grid and char- Electrical hazard due to grid and charging current ging current Hazardous electromagnetic fields that may pose a risk of death for individu- als with pacemakers.
  • Page 6: Personal Protection And Protection Of Others

    Personal protec- Keep persons, especially children, away from the device and working area during tion and protec- operation. However, if persons are in the vicinity: tion of others Inform them of any dangers (hazardous acids and gases, risk due to grid and charging current, etc.), Provide suitable protective equipment.
  • Page 7: Maintenance

    Maintenance Before each start-up, check the mains plug and mains cable and charging cables and charging terminals for damage. If dirt accumulates on the device, clean the surface of the device housing with a soft cloth and only with solvent-free cleaning agents. Maintenance and Maintenance and repair work must only be carried out by authorised personnel.
  • Page 8: Markings On The Device

    Copyright Copyright of these Operating Instructions remains with the manufacturer. Text and illustrations were accurate at the time of printing. Fronius reserves the right to make changes. The contents of the Operating Instructions shall not provide the basis for any claims whatsoever on the part of the purchaser. If you...
  • Page 9: Power Categories

    Power categories General The kW information for the power categories relates to the housing design and is not directly related to the actual device output. 1 kW Selectiva 1020 / 1030 2010 / 2015 / 2020 / 2032 / 2040...
  • Page 10: General Information

    A number of safety symbols can be seen on the battery charger's rating plate. on the device The safety symbols must not be removed or painted over. A-4600 Wels www.fronius.com Selectiva xxxx 1kW Art. Nr.: 4,010,xxx xxxxxxxx ~230V 50/60Hz; xxxW...
  • Page 11 Battery acid is corrosive and must never come into contact with your eyes, skin, or clothing. Ensure there is a sufficient supply of fresh air during charging. During charging observe a minimum distance of 0.5 m (19.69 in.) between the battery and battery charger.
  • Page 12: Before Commissioning

    Before commissioning Safety WARNING! Danger from incorrect operation. This can result in severe personal injury and damage to property. ▶ Do not use the functions described here until you have fully read and under- stood the following documents: ▶ Operating Instructions, ▶...
  • Page 13: Scope Of Supply

    Only certified, intrinsically safe batteries may be used when charging Li-ion bat- teries. For charging Li-ion batteries, a customer characteristic must be used that is spe- cifically designed for the battery. A standard charging process for Li-ion batteries is not pre-installed in the battery charger. Li-ion batteries: LFP, LTO, NMC, NCA, NCO, LMO, LCO.
  • Page 14: Charging Lead

    Charging lead WARNING! Danger from flying sparks due to improper disconnection of the charging plug. This can result in severe personal injury and damage to property. The resulting sparks can ignite the charging gases that form during charging and cause a fire or explosion ▶...
  • Page 15: Control Elements And Connections

    Control elements and connections General Please note: as a result of firmware updates, you may find that there are functions available on your device that are not described in these Operating Instructions, or vice versa. Certain illustrations may also differ slightly from the actual controls on your device, but these controls function in exactly the same way.
  • Page 16: Connections

    Connections Function AC input - mains socket Mains cable safety bow for fitting the mains cable. Connection P2 - I/O port for options on the I/O port. Connection P1 - charger lead socket also for external stop and tem- perature-controlled charging options.
  • Page 17: Fitting The Optional Bracket And Strain-Relief Device For The Charging Lead

    Fitting the op- Please note: tional bracket the torque for all screws is 2.5 Nm and strain-relief (1.84 ft. lb.). device for the charging lead To fit the bracket: Undo the screws (1). Fit bracket (2) using the previously removed screws. To fit the strain-relief device: Undo screw (3).
  • Page 18: Preparations For Security Lock

    Preparations for The security lock is not contained in security lock the scope of supply. A security lock can only be attached to the groove on the housing as shown. to the groove on the housing that is exactly opposite. using spacer M8 DIN 125 or DIN 134, located as shown.
  • Page 19: Installation

    Installation If installing the charger on a firm base, use the drilling template enclosed in the packaging. If the charger is installed in a switch cabinet (or a similar sealed area), then forced-air ventilation must be provided to ensure adequate heat dissipation. There must be a clearance of 10 cm (3.94 in.) all around the charger.
  • Page 20: Charging The Battery

    Charging the battery Starting char- CAUTION! ging Risk of damage if attempting to charge a faulty battery or using the incorrect charging voltage. This can result in damage to property. ▶ Before beginning charging, ensure that the battery to be charged is fully functional and the charging voltage of the device matches the battery voltage.
  • Page 21: Finishing Charging

    Finishing char- WARNING! ging Danger due to ignition of oxyhydrogen caused by sparks generated when the charging plug is disconnected prematurely. This can result in serious injury and damage to property. ▶ Before disconnecting the charging plug, press the Stop/Start button to finish charging.
  • Page 22: Setup Menu

    Setup menu General remarks Select the characteristic type in the Setup menu depending on either the battery to be charged or the requirement as specified in the accompanying characteristic data sheet. Accessing the Please note: Setup menu Do not connect the charging lead to the battery. A characteristic type cannot be selected when the charging plug is connected.
  • Page 23: Troubleshooting

    Troubleshooting Safety WARNING! Risk of electric shock. This can result in serious injuries or death. ▶ Before opening the device: ▶ Unplug the device from the mains. ▶ Disconnect battery. ▶ Put up an easy-to-understand warning sign to stop anybody inadvertently switching it back on again.
  • Page 24: Charging Errors

    Charger switches off during charging: Cause: Ambient temperature too high. Overtemperature protection act- ive. Remedy: Allow device to cool down. Charging will recommence automat- ically once the device has cooled sufficiently. If not, have it checked by a workshop. Charging errors Ready indicator lit, error indicator flashing, SOC indicator 1/2/3/4 flashing: Cause: Timeout in the corresponding charging phase or battery capa-...
  • Page 25: Technical Data

    Technical data Selectiva 1 kW Mains voltage (+/- 15%) ~230 V Mains frequency 50/60 Hz Mains fuse 16 A Battery backfeed current < 1 mA Standby consumption max. 1.7 W Safety class Max. permitted grid impedance Z None EMC emission class...
  • Page 26 Device-specific data Effective Nominal Output Grid cur- power output voltage Output Device rent max. max. voltage range current 1030 2.9 A 420 W 12 V DC / 2 V to 30 A at 6 cells 16.8 V DC 13.5 V DC 2010 2.3 A 340 W...
