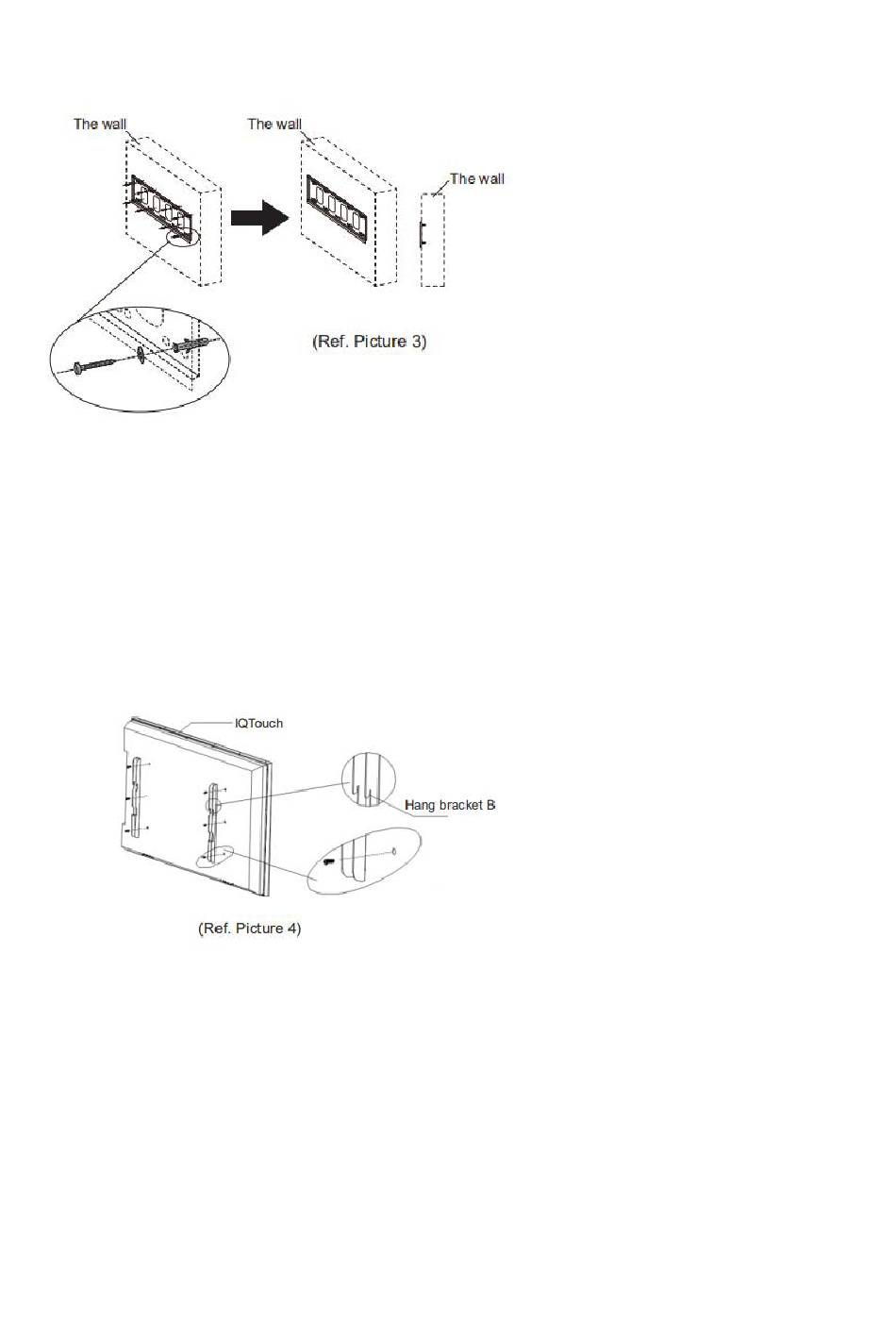

Step 4: Install the left& right hang bracket B to IQTouch.
Use screws to fix the hang bracket B at the back of IQTouch. Please check the direction of hang
bracket B before installation. (Ref. Picture 4)
Step 5: Hang IQTouch on the wall mounting bracket A
Hanging the hang bracket B on the left and right onto the wall mounting bracket A, please ensure
two hang brackets B completely hanged onto wall mounting bracket A, then tighten the screws of
hang bracket B to prevent it slide. (See Ref. Picture5)
19
