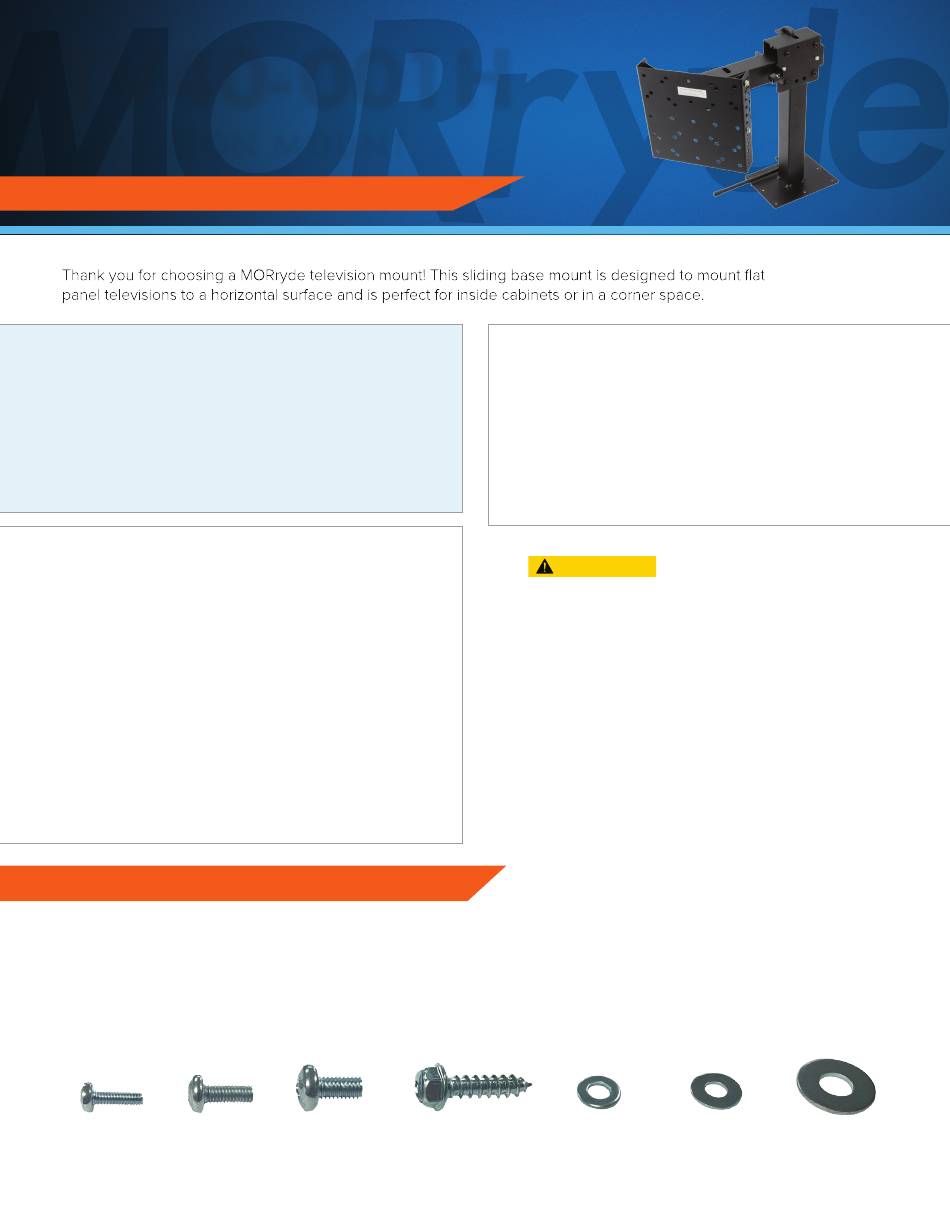

MORryde TV40-001H Installation Instructions

TV40-001H
T ELE VIS IO N M O UNT
INSTALLATION INSTRUCTIONS
Key Features and Benefits
• Slides out 7"
• Up to 200 x 200 VESA pattern
• Swivels up to 140º and tilts 0-15º
Range of Motion*
• Slides out and swivels
Product and Safety Information
The TV40-001H mounts flat panel televisions or
monitors to a horizontal surface.
NOTE: This mount is not intended for use on brick,
concrete, concrete block.
VESA* Mounting Plates
• 75mm x 75mm
• 100mm x 100mm
* Video Electronics Standards Association
Weight Capacity
• 50 lbs
Preparation
Television Stand
If applicable, remove the original base stand in accordance with the television owner's manual.
Hardware
Use appropriate hardware for securing your television to the mount and mounting your television to the mounting surface.
M4x12mm Bolt (4) M5x12mm Bolt (4)
• 200mm x 200mm
M6x12mm Bolt (4)
Parts List
1. Bracket Arm
2. Base Mount
3. Locking Bar
4. TV Bracket
5. TV Mounting Plate
6. Hardware
WARNING
property damage or personal injury. The mounting
surface may require reinforcement as it must be
capable of supporting five times the combined weight
of the television and the mount.
The installer assumes all responsibility of verifying that
any installation method and mounting surface securely
support the television and mount. MORryde is not liable
for property damage or injury caused by incorrect
mounting, installation methods not recommended by
MORryde, hardware not provided by MORryde, or
incorrect use of the mount during travel or otherwise.
1/4" x 1" Lag Bolt (8) M6 Flat Washer (8)
Improper installation may cause
#10 Flat Washer (8) 1/4" Flat Washer (8)
