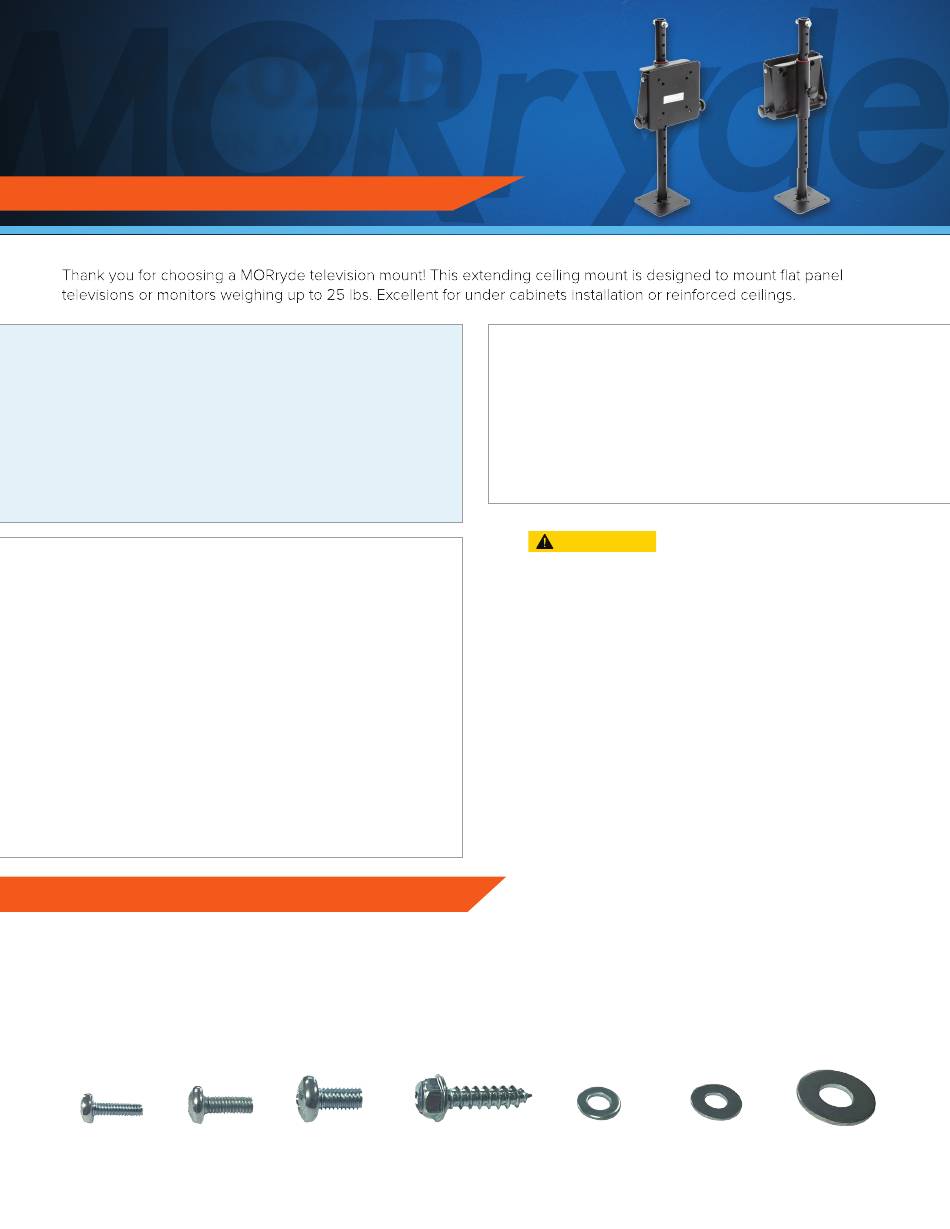

TV1-022H
T ELE VIS IO N M O UNT
INSTALLATION INSTRUCTIONS
Key Features and Benefits
• Locks in place
• Tilt and swivel adjustment
• No assembly required
Range of Motion*
• Swivel up to 360º and up to 10.5º tilt
* For most applications
Product and Safety Information
The TV1-022H mounts flat panel televisions or monitors
to a flat surface in an outside entertainment center.
NOTE: This mount is not intended for use on brick,
concrete, concrete block.
VESA* Mounting Plates
• 75mm x 75mm
• 100mm x 100mm
* Video Electronics Standards Association
Weight Capacity
• 25 lbs
Preparation
Television Stand
If applicable, remove the original base stand in accordance with the television owner's manual.
Hardware
Use appropriate hardware for securing your television to the mount and mounting your television to the mounting surface.
M4x12mm Bolt (4)
M5x12mm Bolt (4)
M6x12mm Bolt (4)
1/4" x 1" Lag Bolt (8)
Parts List
1. TV Plate
2. Base Plate
3. Base Extension
4. Hardware Pack
5. Extension Nut and Bolt
WARNING
Improper installation may cause
property damage or personal injury. The mounting
surface may require reinforcement as it must be
capable of supporting five times the combined weight
of the television and the mount.
The installer assumes all responsibility of verifying that
any installation method and mounting surface securely
support the television and mount. MORryde is not liable
for property damage or injury caused by incorrect
mounting, installation methods not recommended by
MORryde, hardware not provided by MORryde, or
incorrect use of the mount during travel or otherwise.
M6 Flat Washer (8)
#10 Flat Washer (8)
1/4" Flat Washer (8)
