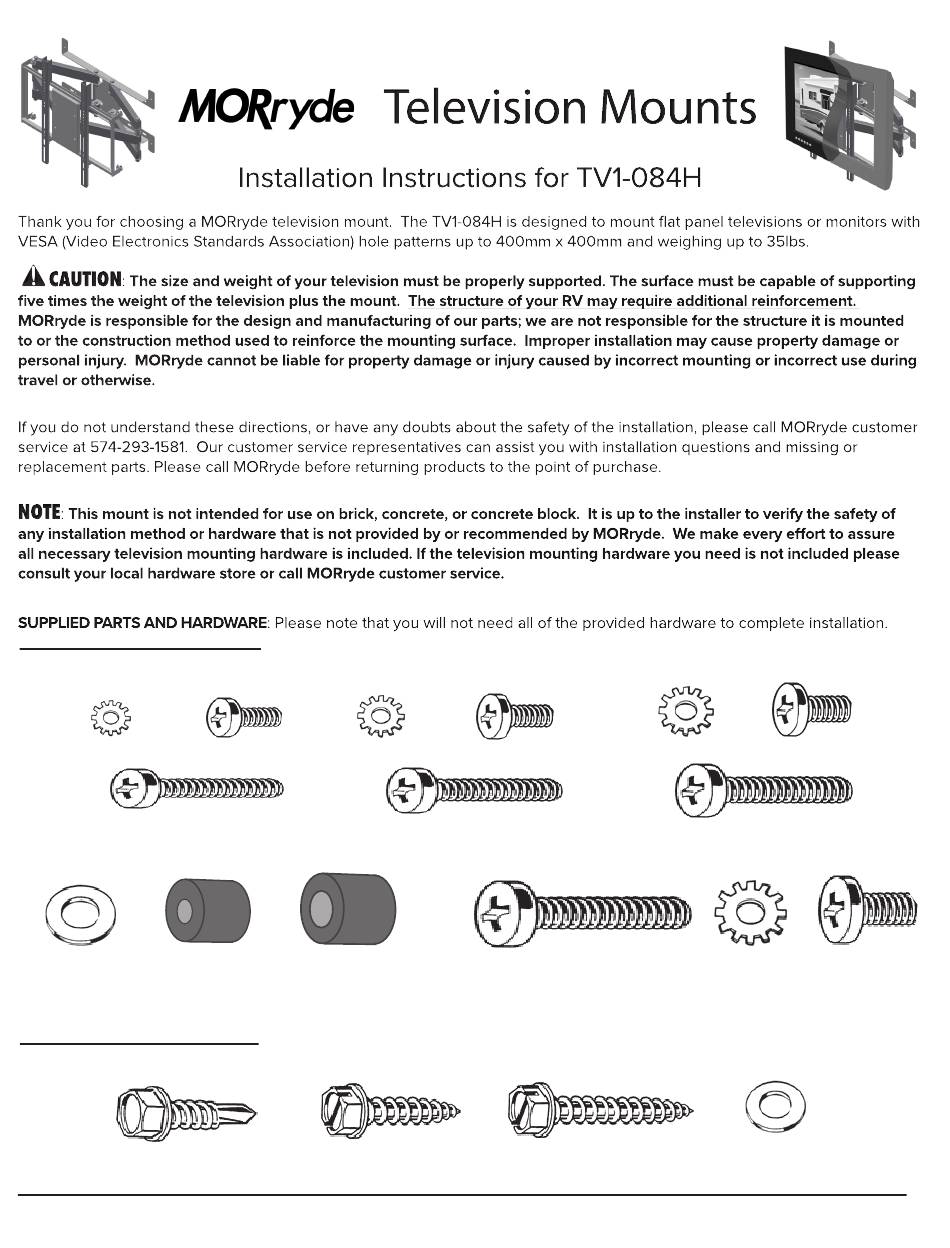

MORryde TV1-084H Installation Instructions

Television mounts

Download this manual

Hardware for mounting television: Refer to your television's owners manual or select the appropriate bolt from the hardware provided.

M5 Lock Washer (6)

M6 Lock Washer (6)

M6x12mm Bolt (4)

M4 Lock Washer (6)

M4x12mm Bolt (4)

M5x12mm Bolt (4)

M4x30mm Bolt (4)

M5x30mm Bolt (4)

M6x35mm Bolt (4)

M4/M5

#10 Washer (6)

M4/M5 Spacer (4)

M6 Spacer (4)

M8 x35mm Bolt (4)

M8 Lock Washer (6)

M8x12mm Bolt (4)

Optional*

*Spacers are for televisions with recessed mounting holes.

Hardware for securing bracket: Select the appropriate length based on the thickness of your mounting surface.

< best for metal applications >

< best for wood applications >

1/4" x 1" Self-drilling Screw (8)

1/4" x 1" Lag Bolt (8)

1/4" x 1-1/2" Lag Bolt (8)

1/4" ID Washer (8)

MORryde International, Inc. | 1966 Sterling Ave | PO Box 579 | Elkhart, IN 46516

Customer Service: 574.293.1581 | www.MORryde.com

Need help?

Do you have a question about the TV1-084H and is the answer not in the manual?

Page 1 1/4” x 1” Self-drilling Screw (8) 1/4” x 1” Lag Bolt (8) 1/4” x 1-1/2” Lag Bolt (8) 1/4” ID Washer (8) MORryde International, Inc. | 1966 Sterling Ave | PO Box 579 | Elkhart, IN 46516 Customer Service: 574.293.1581 | www.MORryde.com...
Page 2 CAUTION: This step may require two people to lift the TV onto the bracket and secure. MORryde is not responsible for property damage and/or personal injury. MORryde International, Inc. | 1966 Sterling Ave | PO Box 579 | Elkhart, IN 46516 Customer Service: 574.293.1581 | www.MORryde.com...
