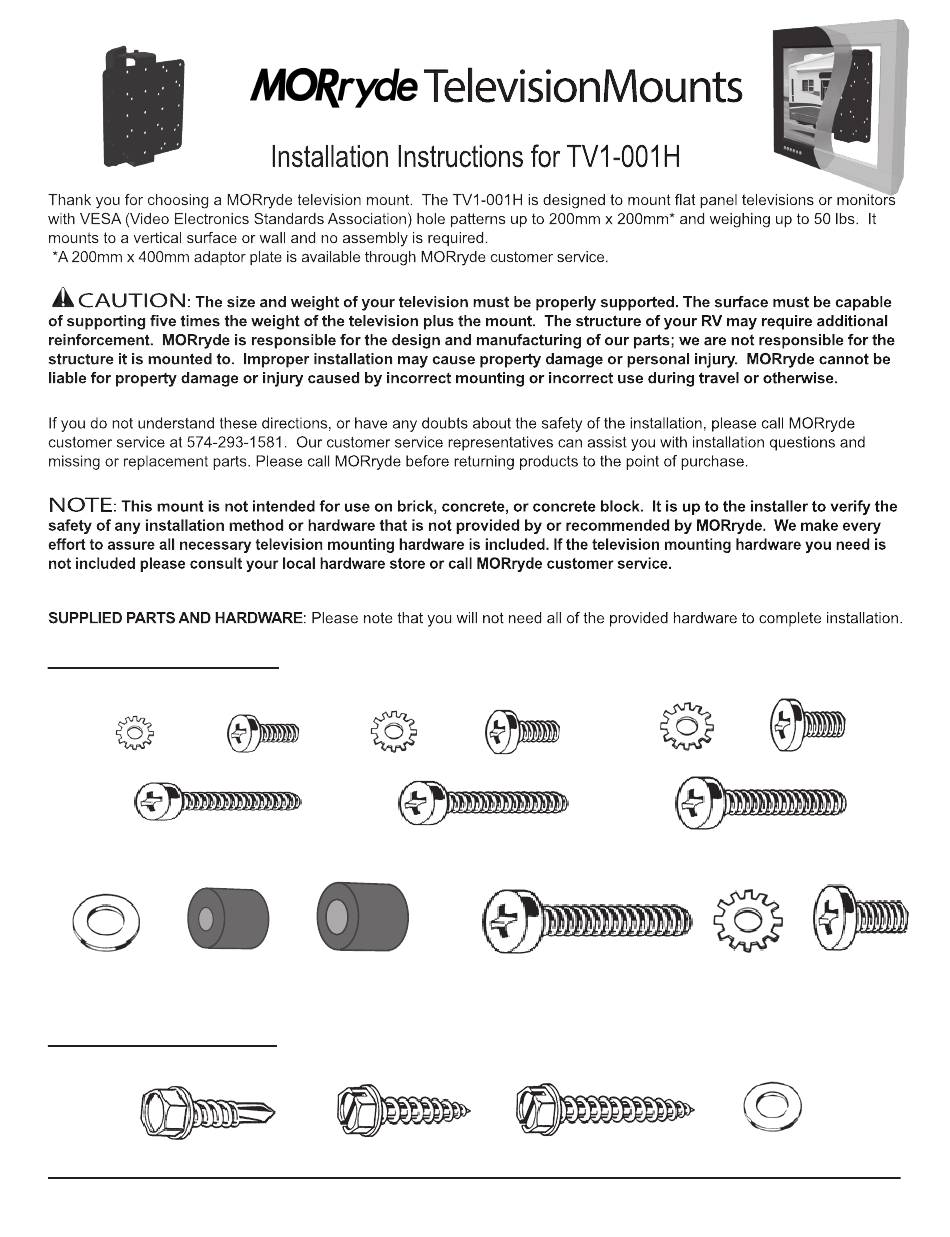

MORryde TV1-001H Installation Instructions

Hardware for mounting television: Refer to your television's owners manual or select the appropriate bolt from the hardware provided.

M4 Lock Washer (6)

M4x12mm Bolt (4)

M4x30mm Bolt (4)

M4/M5

#10 Washer (6)

M4/M5 Spacer (4)

Optional*

*Spacers are for televisions with recessed mounting holes.

Hardware for securing bracket: Select the appropriate length based on the thickness of your mounting surface.

< best for metal applications >

1/4" x 1" Self-drilling Screw (8)

MORryde International ▪ 1966 Sterling Avenue ▪ PO Box 579 ▪ Elkhart ▪ IN 46516

M5 Lock Washer (6)

M5x30mm Bolt (4)

M6 Spacer (4)

Optional*

< best for wood applications >

1/4" x 1" Lag Bolt (8)

Customer Service: 574.293.1581 ▪ www.morryde.com

M6 Lock Washer (6)

M5x12mm Bolt (4)

M8x35mm Bolt (4)

1/4" x 1-1/2" Lag Bolt (8)

M6x12mm Bolt (4)

M6x35mm Bolt (4)

M8 Lock Washer (6)

M8x12mm Bolt (4)

1/4" ID Washer (8)

Table of Contents

Need help?

Do you have a question about the TV1-001H and is the answer not in the manual?

Page 1 1/4” x 1” Self-drilling Screw (8) 1/4” x 1” Lag Bolt (8) 1/4” x 1-1/2” Lag Bolt (8) 1/4” ID Washer (8) MORryde International ▪ 1966 Sterling Avenue ▪ PO Box 579 ▪ Elkhart ▪ IN 46516 Customer Service: 574.293.1581 ▪ www.morryde.com...
Page 2 STEP 3 Assemble the mounting plate with television to the wall bracket: Assemble as shown below and use securing hardware to lock in place. CAUTION : This step may require two people to lift the television onto the bracket and secure. MORryde is not responsible for property damage and/or personal injury.
