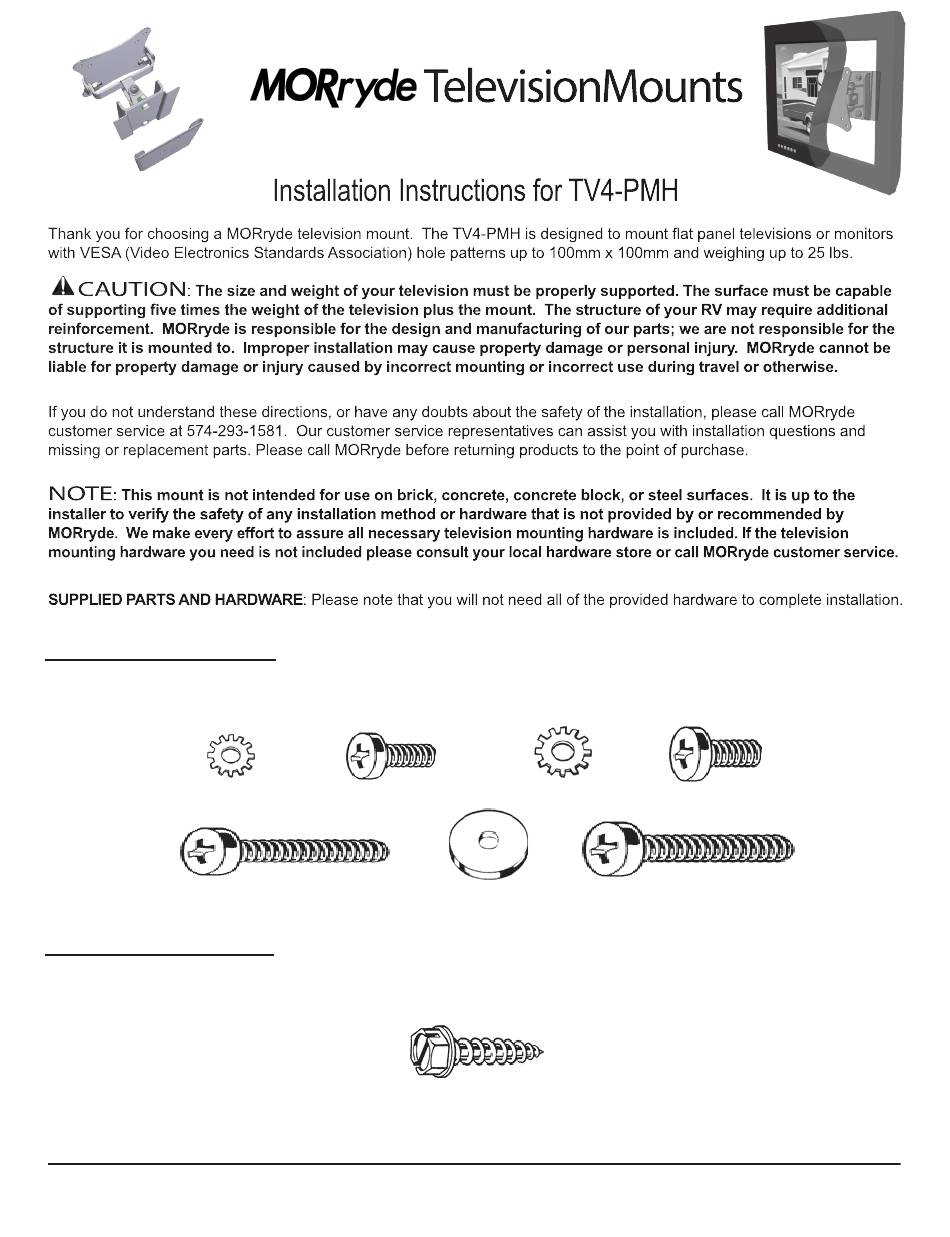

Hardware for mounting television: Refer to your television's owners manual or select the appropriate bolt from the hardware provided.
M4
M5
M4 Lock Washer (6)
M5 Lock Washer (6)
M4x12mm Bolt (4)
M5x12mm Bolt (4)
M5x30mm Bolt (4)
M4x30mm Bolt (4)
#10 Flat Washer (4)
Hardware for securing bracket: Select the appropriate length based on the thickness of your mounting surface.
< best for wood applications >
MORryde International ▪ 1966 Sterling Avenue ▪ PO Box 579 ▪ Elkhart ▪ IN 46516
Customer Service: 574-293-1581 ▪ www.morryde.com
Advertisement
Table of Contents
Related Manuals for MORryde TV4-PMH
Summary of Contents for MORryde TV4-PMH
- Page 1 Hardware for securing bracket: Select the appropriate length based on the thickness of your mounting surface. < best for wood applications > MORryde International ▪ 1966 Sterling Avenue ▪ PO Box 579 ▪ Elkhart ▪ IN 46516 Customer Service: 574-293-1581 ▪ www.morryde.com...
- Page 2 STEP 1 Secure the portable mounting plate to the mounting surface: Pre-drill holes using a 1/8” drill bit. Use flat head screws to secure base of bracket to the mounting surface. CAUTION : Using a screw or bolt length that is too long for your application may result in puncturing exterior structure.
