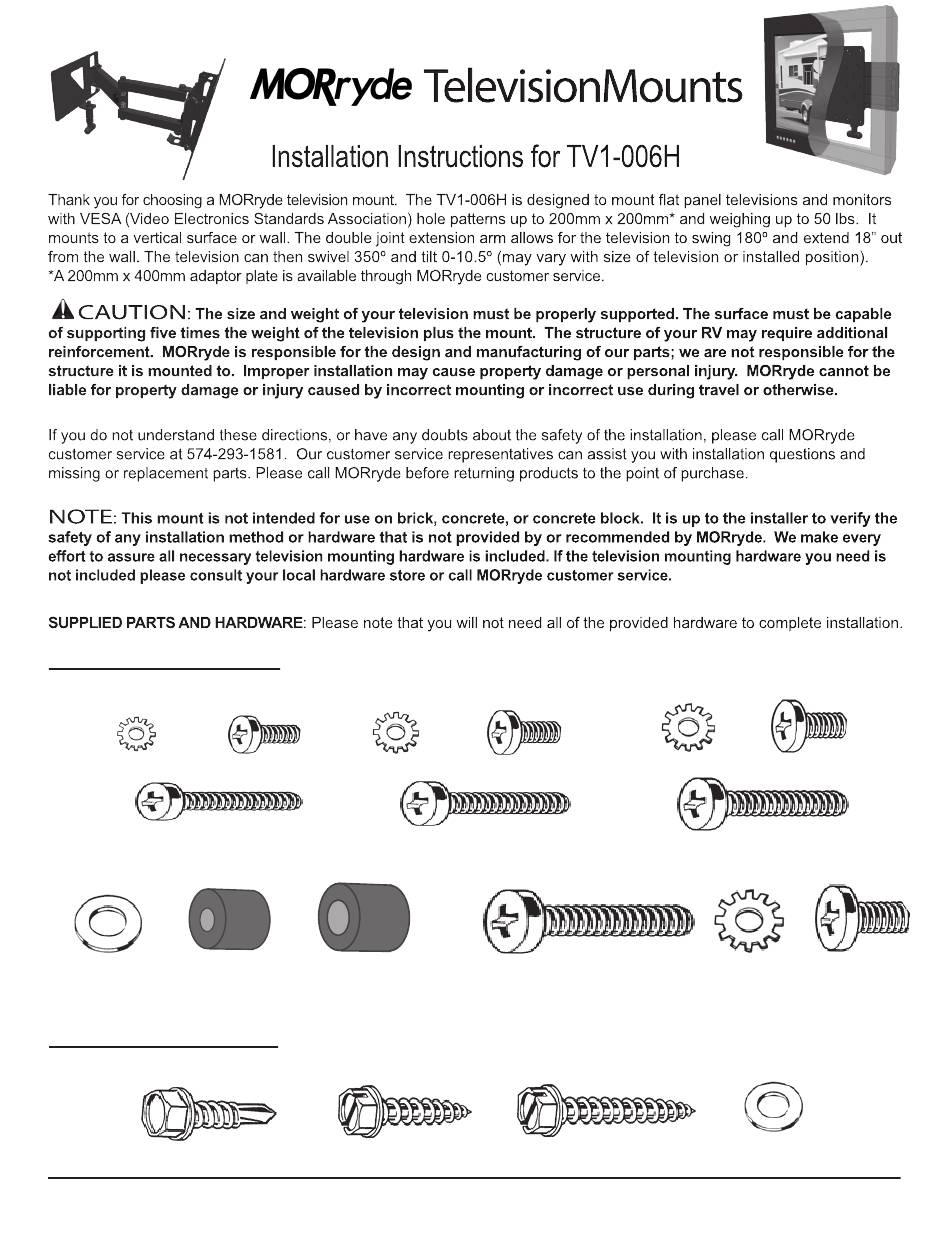

MORryde TV1-006H Installation Instructions

Hardware for mounting television: Refer to your television's owners manual or select the appropriate bolt from the hardware provided.

M5 Lock Washer (6)

M6 Lock Washer (6)

M4 Lock Washer (6)

M4x12mm Bolt (4)

M5x12mm Bolt (4)

M6x12mm Bolt (4)

M4x30mm Bolt (4)

M5x30mm Bolt (4)

M6x35mm Bolt (4)

M4/M5

#10 Washer (6)

M4/M5 Spacer (4)

M6 Spacer (4)

M8x35mm Bolt (4)

M8x12mm Bolt (4)

M8Lock Washer (6)

Optional*

*Spacers are for televisions with recessed mounting holes.

Hardware for securing bracket: Select the appropriate length based on the thickness of your mounting surface.

< best for metal applications >

< best for wood applications >

1/4" x 1" Self-drilling Screw (8)

1/4" x 1" Lag Bolt (8)

1/4" x 1-1/2" Lag Bolt (8)

1/4" ID Washer (8)

MORryde International ▪ 1966 Sterling Avenue ▪ PO Box 579 ▪ Elkhart ▪ IN 46516

Customer Service: 574-293-1581 ▪ www.morryde.com

Table of Contents

Need help?

Do you have a question about the TV1-006H and is the answer not in the manual?

Page 1 1/4” x 1” Self-drilling Screw (8) 1/4” x 1” Lag Bolt (8) 1/4” x 1-1/2” Lag Bolt (8) 1/4” ID Washer (8) MORryde International ▪ 1966 Sterling Avenue ▪ PO Box 579 ▪ Elkhart ▪ IN 46516 Customer Service: 574-293-1581 ▪ www.morryde.com...
Page 2 Spacer (4) Optional CAUTION : This step may require two people to lift the television onto the bracket and secure. MORryde is not responsible for property damage and/or personal injury. Tilts 0-10.5º If you prefer a right side orientation, the VESA...
