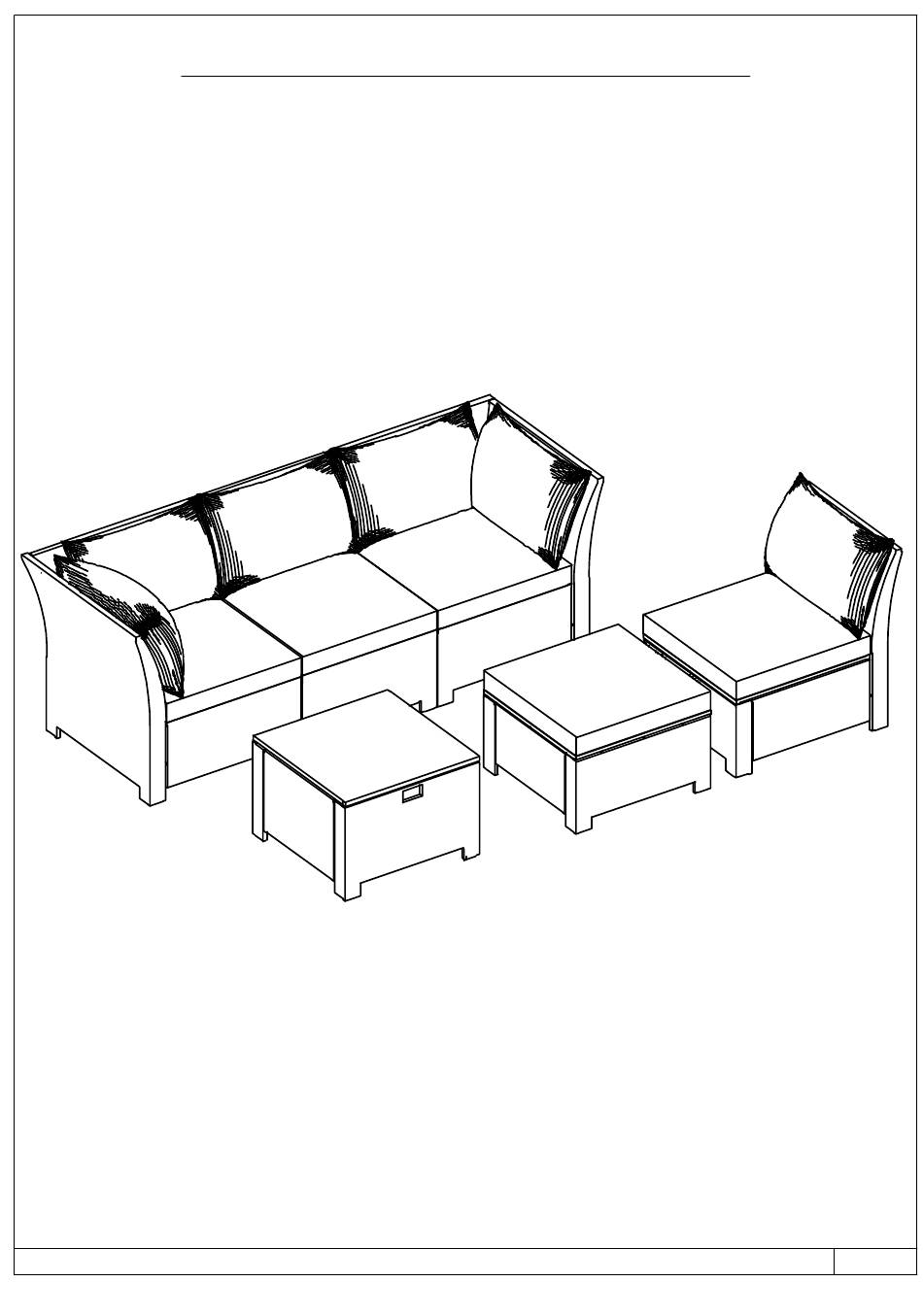

- Page 1 ASSEMBLY INSTRUCTIONS RATTAN SOFA SET WF288800, WF288801, WF288802 Page : 1/10...
- Page 2 Note: 1. 50% Tighten before fixing all screws, Allen wrench is recommended instead of an electric drill. 2. Place the item on a flat ground to adjust and make sure it remains stable. 3. Tighten up all screw with tools gradually. 4.
- Page 3 CARTON CONTENT: WF288800 Q x2 B x2 HARDWARE WF288801 K x2 H x4 C x2 M x1 D x5 N x1 WF288803 J x1 L x1 O x1 F x2 P x1 R x1 I x2 E x4 3/10...
-
Page 4: Part List
Part List: A x2 B x2 C x2 D x5 E x4 Right Corner Frame Back Corner Frame Seat Corner Frame Seat Cushion Back Cushion F x2 G x4 H x4 I x2 J x1 Seat Middle Frame Front Middle/Stool Frame Side Middle Frame Back Middle Frame Seat Stool Frame... - Page 5 STEP 1 STEP 2 2 x2 A x1 4 x2 B x1 Connect Right Corner Frame (A) & Back Connect The Part from STEP 1, tighten Corner Frame (B). Bolt (2) and Flat Washer (4) with Allen Key (5). STEP 3 STEP 4 C x1 2 x2...
- Page 6 STEP 5 STEP 6 100% D x1 E x 1 Q x 1 100% tighten put the Seat Cushion (D) & Back Cushion (E), Small Back Cushion (Q) on to complete the Corner. STEP 7 STEP 8 F x1 H x1 I x1 2 x3 3 x2...
- Page 7 STEP 7 STEP 8 H x1 G x1 2 x3 2 x4 4 x3 4 x4 Connect The Part from STEP 8 & Side Connect The Part from STEP 9 & Front Middle Frame (H), tighten Bolt (2) and Middle/Stool Frame (G), tighten Bolt (2) Flat Washer (4) with Allen Key (5).
- Page 8 STEP 11 STEP 12 G x2 K x2 J x1 2 x8 2 x4 4 x8 4 x4 Connect Seat Stool Frame (J) & Front Connect The Part from STEP 11 & Side Middle/Stool Frame (G), tighten Bolt (2) Stool Frame (K), tighten Bolt (2) and Flat and Flat Washer (4) with Allen Key (5).
- Page 9 STEP 15 STEP 16 M x1 N x1 O x1 2 x4 R x1 4 x4 2 x4 4 x4 Connect Front Table Frame (M) & Right Side Connect The Part from STEP 15 & Table Frame (O), Left Side Table Frame Behind Table Frame (N), tighten Bolt (2) tighten Bolt (2) and Flat Washer (4) with Allen and Flat Washer (4) with Allen Key (5).
- Page 10 STEP 19 STEP 20 2 x 2 100% 4 x 2 7 x 1 8 x1 9 x 1 10 x 1 Connect The Part from STEP 18 & Gaslift (10), 100% tighten to complete the Table. tighten Bolt (2), Flat Washer (4), Washer (8), (9) and Nut (7) with Allen Key (5), Key (6).
