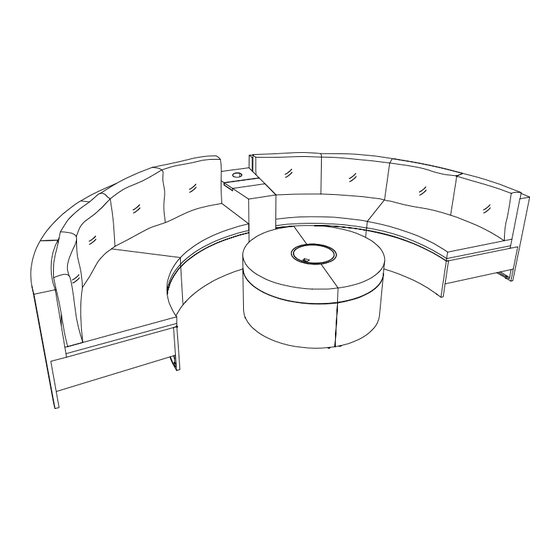

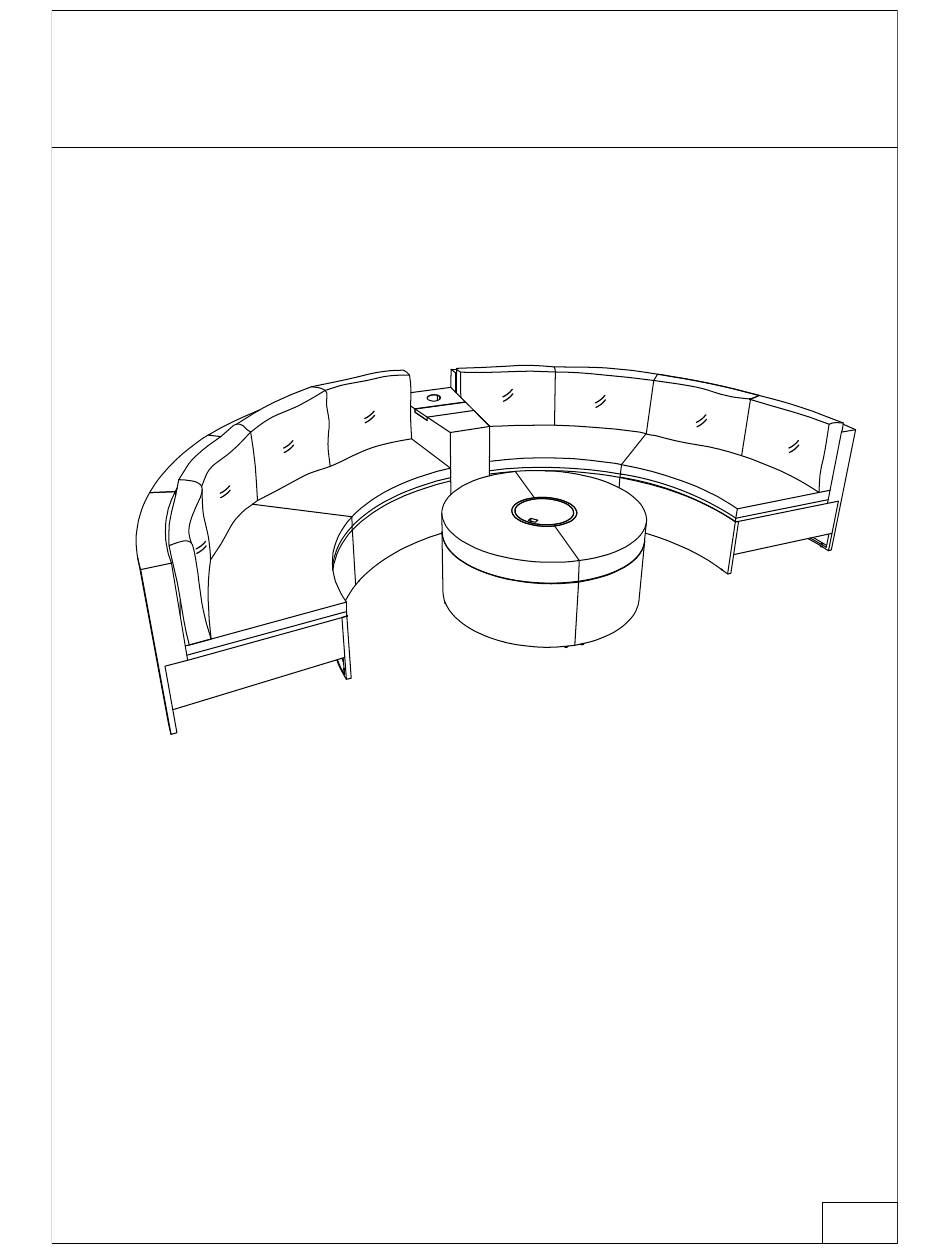

ASSEMBLY INSTRUCTION
RATTAN FURNITURE
Notice:
1. 50% Tighten before fixing all screws, Allen wrench is
recommended instead of an electric drill.
2. Place the item on a flat ground to adjust and make sure
it remains stable.
3. Tighten up all screws with tools gradually.
4. If the screws are not aligned with holes during assembly,
please loosen all the other screws to 50% and continue
the assembly process.
5. If the item is not stable, please loosen all the screws,
adjust it on a flat ground and tighten up all screws again.
6. Note : If one or some screws are fully tightened during
assembly, chances are the others will not be aligned with
holes. In addition, all the holes are designed to be relatively
larger to provide more space for the adjustment of the screws.
WF299823; WF299824
WF299825; WF299826
01-12
Advertisement
Related Manuals for RATTAN WF299823
Summary of Contents for RATTAN WF299823
- Page 1 ASSEMBLY INSTRUCTION RATTAN FURNITURE WF299823; WF299824 WF299825; WF299826 Notice: 1. 50% Tighten before fixing all screws, Allen wrench is recommended instead of an electric drill. 2. Place the item on a flat ground to adjust and make sure it remains stable.
- Page 2 02-12...
- Page 3 Part List and Hardware Right Back Frame(4 pcs) Left Back Frame(4 pcs) Seat Bench Frame(4 pcs) Side Frame(8 pcs) Front Side Frame(4 pcs) Seat Cushion (4 pcs) Back Cushion (8 pcs) Stool Frame (2 pcs) Tray(1 pc) Top Tray(1 pc) Seat Stool Cushion (1 pc) Side Table (1 pc) Washer M6 (108 pcs)
- Page 4 CARTON CONTENT: WF299823AAE G x1 L x1 K x1 H x2 J x1 Hardware WF299824AAE G x6 D x4 A x3 B x3 F x1 WF299825AAE D x4 G x1 A x1 B x1 E x4 WF299826AAE F x3 C x4 04-12...
- Page 5 STEP 1 A x1 B x1 1 x2 4 x4 7 x2 Connect Right Back Sofa (A) & Left Back Sofa (B) with Bolt (1),washer (4), Ecru (7). STEP 2 C x1 2 x4 4 x4 Connect the Part from Step 1 & Seat Bench Frame (C) with Bolt (2), washer (4).
- Page 6 STEP 3 E x1 3 x2 4 x2 Connect the Part from Step 2 & Front Side Frame (E) with Bolt (3), washer (4). STEP 4 D x2 3 x12 4 x12 Connect the Part from Step 3 & Side Frame (D) with Bolt (3), washer (4). 06-12...
- Page 7 STEP 5 F x1 100% G x2 Put the Seat Cushion (F) & Back Cushion (G) to Finish Bench. STEP 6 H x2 100% 1 x9 4 x18 7 x9 Connect Stool Frame (H) with Bolt (1),washer (4), Ecru (7). 07-12...
- Page 8 STEP 7 I x1 3 x2 4 x2 Connect the Part from Step 6 & Tray (I) with Bolt (3), washer (4). STEP 8 6 x8 100% Connect the Part from Step 7 & Adjustable Feet (6) by Hand. 08-12...
- Page 9 STEP 9 I x1 100% J x1 Put the Top Tray (J) inside Tray (I) by Hand. STEP 10 K x1 100% Put the Seat Stool Cushion (K) to Finish Stool. 09-12...
- Page 10 STEP 11 6 x4 Connect the Side Table (L) & Adjustable Feet (6) by Hand. 10-12...
- Page 11 STEP 12 5 x8 Connect the Bench & Side Table (M) with Connector (5) by Hand. 11-12...
- Page 12 STEP 13 Finish. 12-12...
