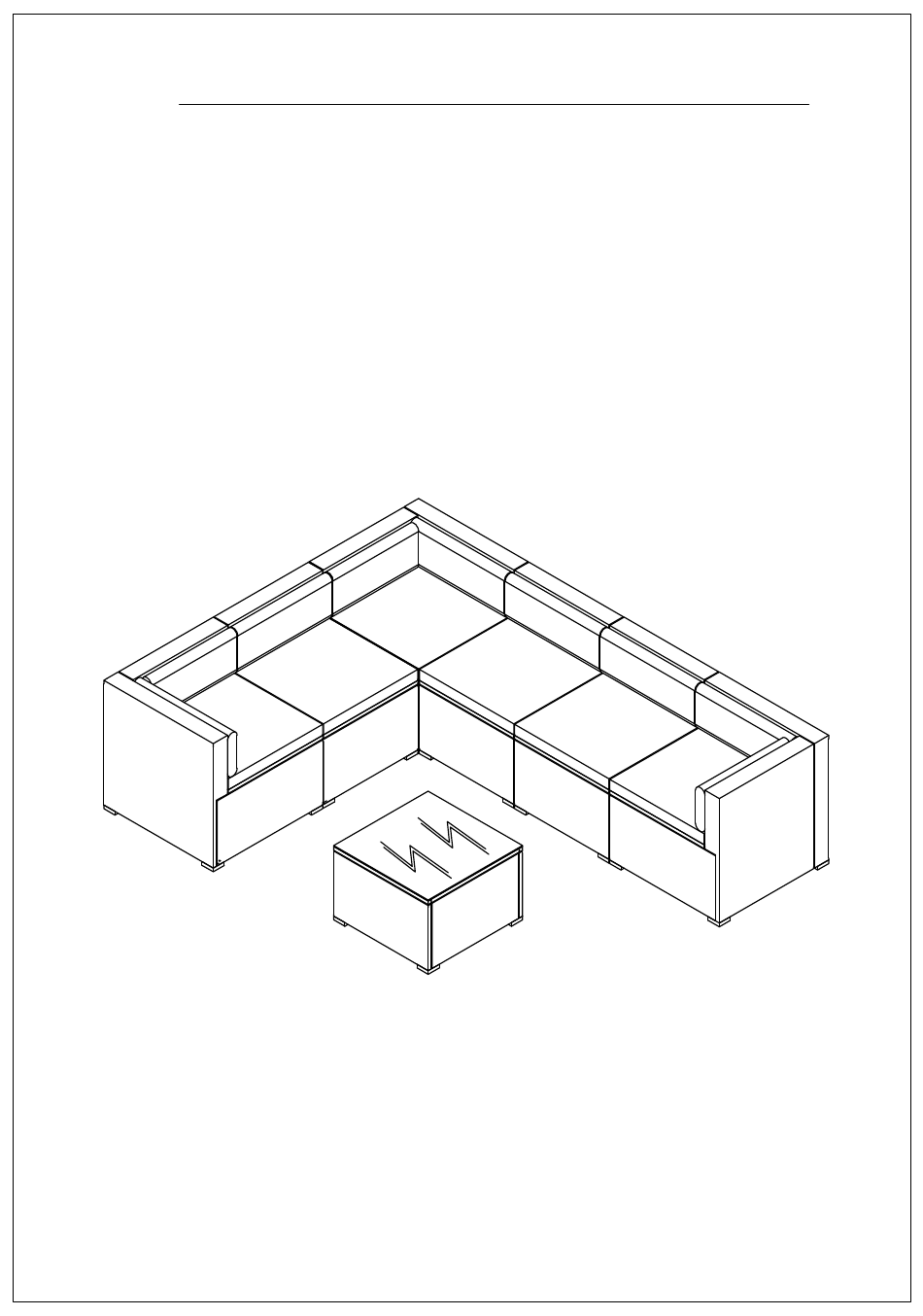

- Page 1 ASSEMBLY INSTRUCTION RATTAN SOFA SET WF197108AAB, WF197110AAB, WF197111AAB...
- Page 2 NOTE: 50% Tighten before fixing all scews, Allen wrench is recommended instead of an electric drill. Place the item on a flat ground to adjust and make sure it remains stable. Tighten up all screw with tools gradually. If screw are not aligned with holes furing assembly, please loosen all the other screws to 50% and continue the assembly process.
- Page 3 CARTON CONTENT: WF197108AAB K X1 E X3 F X2 G X2 B X11 HARDWARE P X28 WF197110AAB A X3 C X5 D X1 F X1 G X1 H X3 J X3 K X2 WF197111AAB D X2 I X1 L X3...
-
Page 4: Part List
Part List A X3 B X11 C X5 PANEL FRAME B BACK FRAME PANEL FRAME C D X3 E X3 F X3 SEAT FRAME RIGHT BACK FRAME LEFT BACK FRAME G X3 H X3 I X1 PANEL FRAME SEAT FRAME TABLE TOP FRAME J X3 K X3... - Page 5 STEP 1 STEP 2 2 x2 2 x2 4 x2 4 x2 A X1 C X1 B X2 2 & 4 2 & 4 2 & 4 2 & 4 Connect 2pcs Panel Frame (B) & Back Frame Connect part from STEP 1 & Panel Frame (C) (A) with Bolt (2) &...
- Page 6 STEP 5 STEP 6 100% 1 x8 L X1 P X4 J X1 Overturn part from STEP 4, connect part from Put on Seat Cushion (J) & Back Cushion (L) STEP 4 & Sofa Leg (P) with Bolt (1). to complete the chair. STEP 7 STEP 8 3 x2...
- Page 7 STEP 9 STEP 10 2 x1 2 x1 4 x1 3 x1 4 x2 B X1 G X1 2 & 4 3 & 4 2 & 4 Connect Panel Frame (B) & Panel Frame Connect part from STEP 9 & STEP 8 with (G) with Bolt (2) &...
- Page 8 STEP 13 STEP 14 1 x8 M X1 P X4 N X1 K X1 Put on Seat Corner Cushion (K) & Big Overturn part from STEP 12, connect part from Corner Cushion (M) & Small Corner STEP 12 & Sofa Leg (P) with Bolt (1). Cushion (N) to complete Corner Sofa.
- Page 9 STEP 17 STEP 18 2 x2 2 x4 4 x2 4 x4 C X1 2 & 4 2 & 4 2 & 4 2 & 4 Connect part from STEP 16 & Panel Frame Connect part from STEP 17 & Table Top (C) with Bolt (2) &...
- Page 10 STEP 21 STEP 22 O X1 Put on Table Glass (O) to finish the Table. Complete Table. STEP 23 6 x10 Connect Chair & Corner with Connector (6). PAGE 10/11...
- Page 11 COMPLETED PAGE 11/11...
