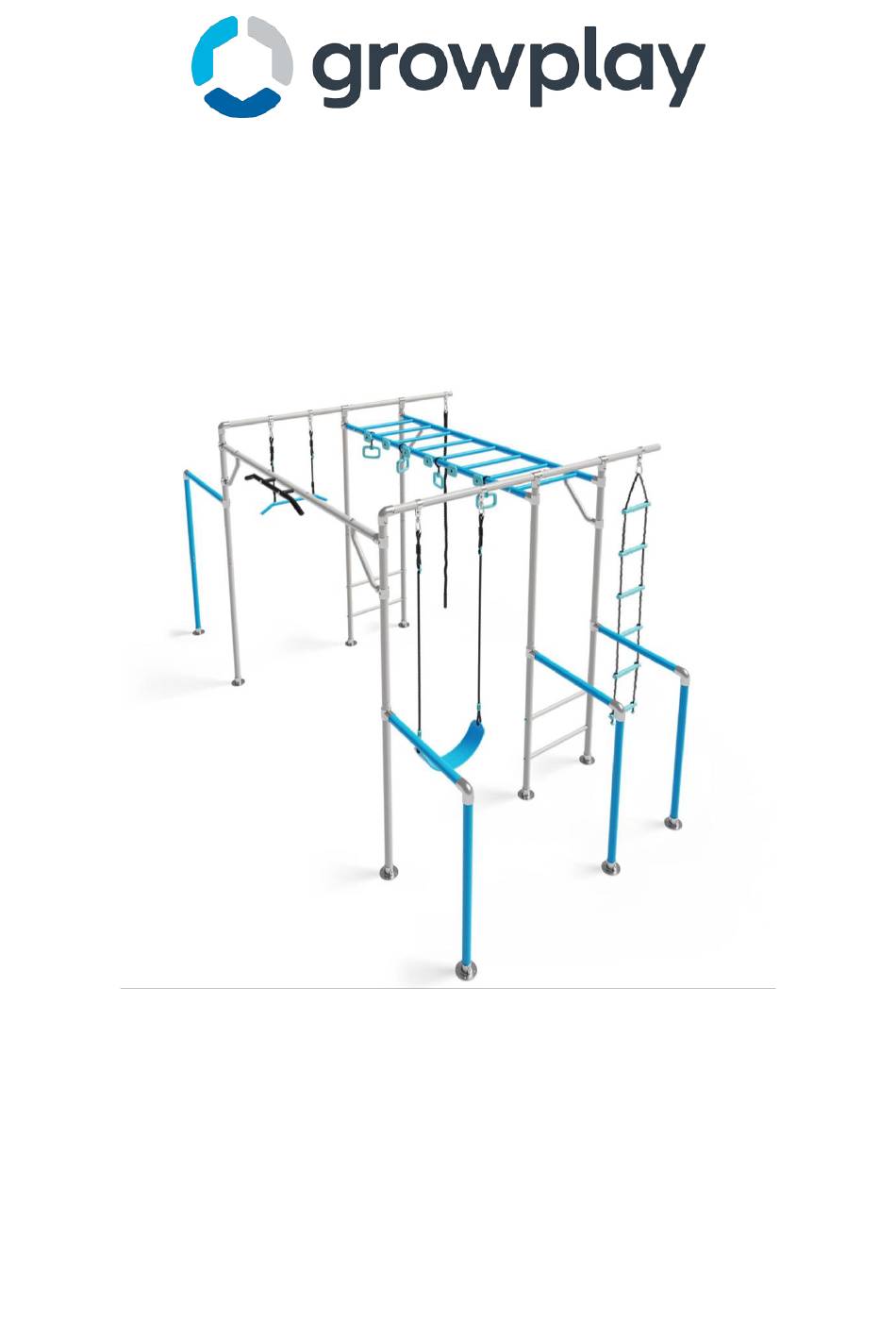

- Page 1 ADVENTURER Installation, Maintenance, Safety and Usage Instructions Manual ATTENTION! READ ALL SAFETY INFORMATION, INSTALLATION AND USAGE INSTRUCTIONS PRIOR TO INSTALLATION AND USAGE. See growplaymonkeybars.com for step by step video instructions and any updates to these instructions.
-
Page 2: Table Of Contents
General care Retain this Manual. ● Inspect before and after each use. ● Replace any worn, deteriorated, defective or missing parts immediately and only through Growplay. ● Tighten all hardware, including elements that secure the system ● to the ground. -
Page 3: Textile Deterioration
Inspect the inside of all tubes every 6 months – as well as after rain – and remove any water from the ● inside surfaces. Use general-purpose grease on steel connection areas. ● Avoid cleaning steel components excessively; it may reduce the effectiveness of their protective ●... - Page 4 X3.1.1 Loose Fill Materials: X3.1.1.1 Maintain a minimum depth of 9 inches of loose-fill materials such as wood mulch/chips, ● engineered wood fiber (EWF), or shredded/recycled rubber mulch for equipment up to 8 feet high; and 9 inches of sand or pea gravel for equipment up to 5 feet high. NOTE: An initial fill level of 12 inches will compress to about a 9-inch depth of surfacing over time.
-
Page 5: Due Care When Installing Product
X3.1.5.2 For to-fro swings, extend protective surfacing in front of and behind the swing to a distance ● equal to twice the height of the top bar from which the swing is suspended. X3.1.5.3 For tire swings, extend surfacing in a circle whose radius is equal to the height of the ●... -
Page 6: Pre-Assembly And Installation Tips
● Check that you have all parts required for ● Children must not use the equipment until assembly. properly installed. ● Lock nuts and bolts securely. Pre-assembly and installation tips ASSEMBLY: TWO PERSONS REQUIRED Before starting assembly, please carefully read the following information: ●... - Page 7 Typical Clamp, Swing Hook and Foot Assembly...
-
Page 9: Boxes And Parts
Boxes and parts DESCRIPTION Quantity Barcode TUBE KIT A1-1 A1-1-B 0794712825562 0794712825579 TUBE KIT A2-1 A2-1 A3-1-B 0794712825586 TUBE KIT A3-1 A4-1 0794712825593 TUBE KIT A4-1 TUBE KIT A5-1 A5-1 0794712825609 ACCESSORY KIT B1-1 0794712825630 Box A1-1-B Contents... - Page 10 Box A2-1 Contents Box A3-1-B Contents...
- Page 11 Box A4-1 Contents Box A5-1 Contents...
- Page 12 Box B1-1 Contents...
-
Page 13: Assembly Instructions
Assembly Instructions... - Page 21 Place a foot on top to prevent damage to the tube...
- Page 25 and tighten grub screws Lay out parts as shown...
- Page 29 and join using BC1040F/M bolts...
- Page 31 Repeat steps on the other side, minus the reducer tee...
- Page 41 Installing Spiral Ground Anchors IMPORTANT: Spiral Ground Anchors are for soft sand and spikes are for hard ground. If spiral anchors break, the ground is too hard and you should use spikes.
- Page 43 Repeat installing anchors to the 3 other feet indicated above Installing Ground Spikes...
- Page 44 IMPORTANT: Ensure Tumble & Gymnastics Bars oriented as shown Adding Additional Accessories Please refer to individual accessory installation guides for any additional accessories purchased with your frame.
