Table of Contents
3
5
4
1
10
C
1
10
MR1800KIT ASSEMBLY
MR2400KIT ASSEMBLY P.T.O
Assembly: Insert rungs into rails on
a flat surface and hand tighten.
Check before fully tightening.
9
6
8
12
TYPICAL BOLT
ASSEMBLY
3
2
7

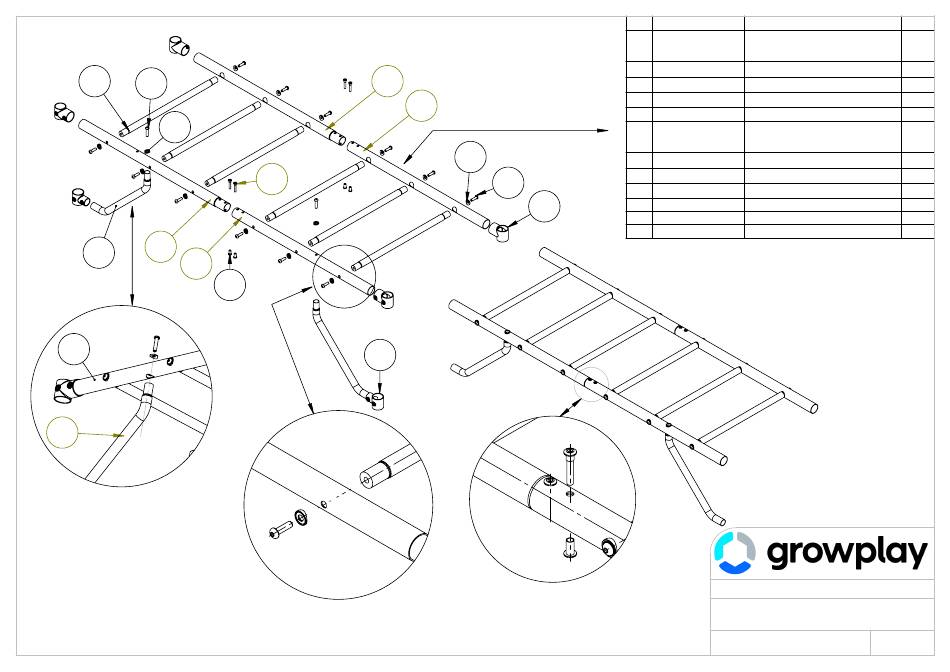

PARTS LIST AND
EXPLODED VIEW
4
5
15
!! ATTENTION !!
CHECK ASSEMBLY BEFORE
TIGHTENING
#
PART NUMBER
DESCRIPTION
Rung rail LH male
1 CP20ZK1H
with hole for part 10
Rung rail male RH
2 CP20ZK1
3 DB2R
Monkey Rung
4 20MRCW1
M10 Concave Washer
5 B1035BH1
M10 x 35 S/S Bolt
Rung rail LH female
6 CP20ZK2H
with hole for part 10
Rung Rail
7 CP20ZK2
8 BC1040F
M10 Chicago Female
9 BC1040M
M10 Chicago Male
10 CF20CB2
Cross Brace 1
12 101-4234 Tee
42/48 Short tee
15 101-48 Tee
48 Short tee
NOTE:DO NOT ATTACH CLAMPS 12 & 15.
REF. TO LADDER ASSEMBLY INSTRUCTIONS.
ASSEMBLED MONKEY BARS
ASSEMBLY INSTRUCTIONS
TITLE:
MONKEY RUNG 1800
AMR1800KIT
PART #:
QTY.
1
1
6
14
14
1
1
4
4
2
2
4
C
A
REV:
