Summary of Contents for growplay THE COMPACT

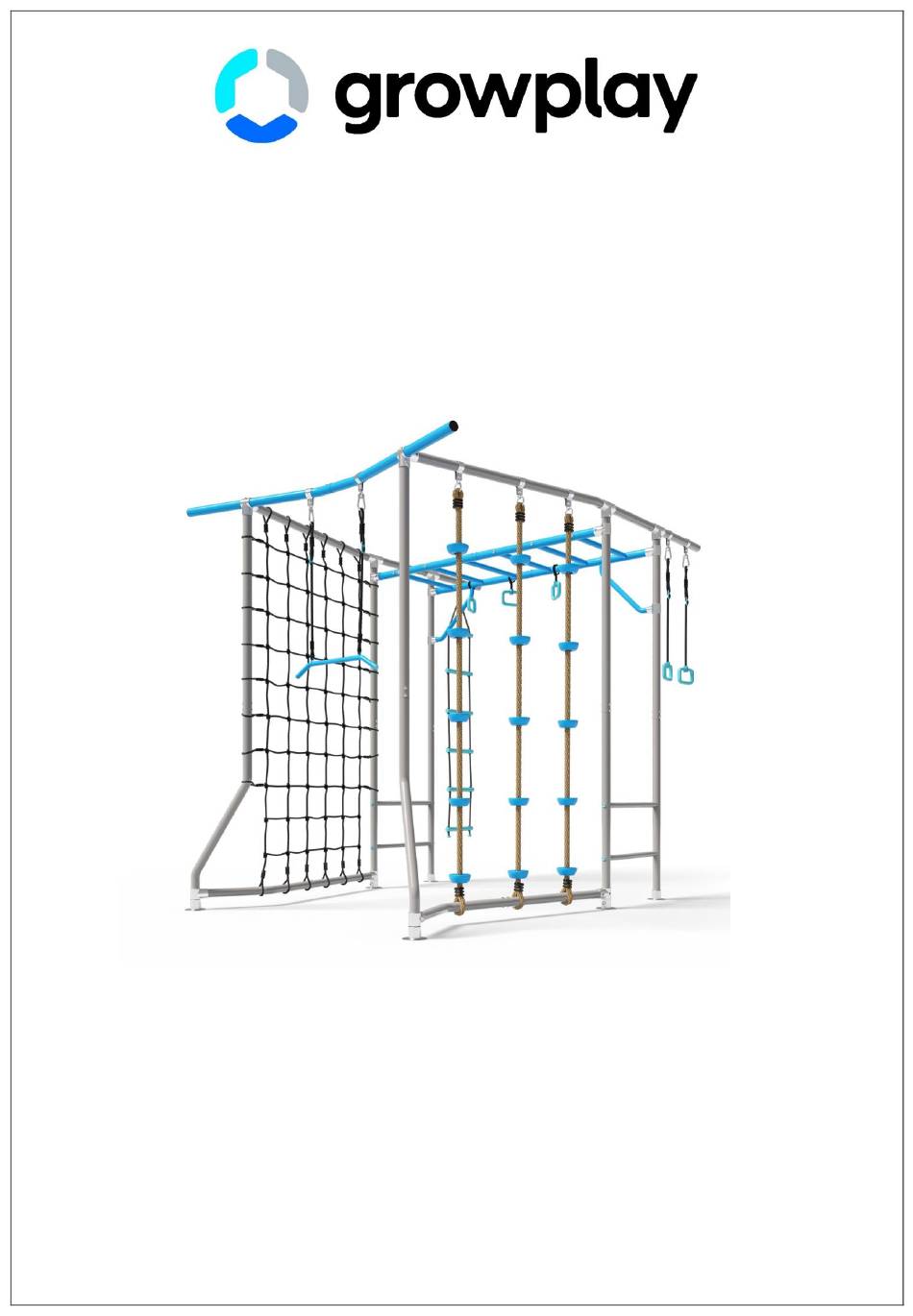

- Page 1 THE COMPACT Assembly, Maintenance and User Instructions Manual ATTENTION! READ ALL SAFETY INFORMATION, INSTALLATION AND USAGE INSTRUCTIONS PRIOR TO INSTALLATION AND USAGE. See growplaymonkeybars.com for step-by-step video instructions and any updates to these instructions.
-
Page 2: Care And Maintenance
General care Retain this Manual. • Inspect before and after each use. • Replace any worn, deteriorated, defective or missing parts immediately and only through Growplay. • Tighten all hardware, including elements that secure the system • to the ground. -
Page 3: Usage And Behaviour
Usage and Behaviour Improper use of, or behaviour on, your system can lead to serious injury. Please follow these usage and behaviour instructions to ensure safe play. Safe use information Maximum user weight: 1653 lb (750 kg). • Domestic and outdoor use only. •... - Page 4 X3.1.3.1 Check and maintain the depth of the loose-fill surfacing material. To maintain the right • amount of loose-fill materials, mark the correct level on play equipment support posts. That way, you can easily see when to replenish and/or redistribute the surfacing. X3.1.3.2 Do not install loose fill surfacing over hard surfaces such as concrete or asphalt.
- Page 5 Ensure that the system has been assembled by an adult, in accordance with the assembly • instructions. Ensure that the system has been checked over before use, and that all attachments are secure. • Do not use in strong wind conditions or wet weather and keep the system secure. •...
-
Page 6: Ground Anchor
IMPORTANT! ENSURE GROUND IS LEVEL. USE GROUND ANCHOR SCREWS ON 4 OUTSIDE LEGS TO SECURE FRAME BEFORE USE. LEVEL GROUND GROUND ANCHOR WASHER BASE PLATE... - Page 7 IMPORTANT! ONLY FULLY TIGHTEN BOLTS ONCE FRAME IS ASSEMBLED. FINGER TIGHTEN ONLY DURING ASSEMBLY. REFER TO PART NUMBERS PRINTED ON ALL TUBULAR PARTS DURING ASSEMBLY. TYPICAL CHICAGO BOLT ASSEMBLY TYPICAL RUNG ASSEMBLY THE SAFETY BOLT IS SHOWN AS RED IN THIS MANUAL TO INDICATE THAT THIS SPECIAL FASTERNER IS REQUIED TO LOCATE POSITION OF TUBE AND...
- Page 10 FRONT LEGS: IMPORTANT! LAY PARTS OUT AS SHOWN. PART NUMBERS ARE PRINTED ON TUBULAR PARTS HOLES MUST BE FACING INWARDS! CP20D1 CP20D1 CP20D2 CP20D2 PLACE SHORT TEE’S AS SHOWN. FACING INWARDS WITH BOTS UPWARDS. LEAVE LOOSE. DO NOT TIGHTEN. SECURE BASE PLATE PLATE...
- Page 11 TOP SIDE RAILS: IMPORTANT! LAY PARTS OUT AS SHOWN. SLIDE 3 WAY TEE ONTO PART CP20A2 FIRST AND ALIGN WITH HOLE. INSERT SAFETY CP20E1K BOLT FINGER TIGHT. NOTE NOTE END CAPS TO REAR THAT THE BOLT IS OUTWARDS WITH THE KINK INWARDS AS SHOWN.
- Page 12 BOTTOM SIDE RAILS: IMPORTANT! LAY PARTS OUT AS SHOWN. PART NUMBERS ARE PRINTED ON TUBULAR PARTS CONNECT PARTS TOGETHER, CP20B1 HAND TIGHTEN CHICAGO BOLTS. CP20B1 CP20B2 SAFETY BOLT HOLES AS SHOWN TO REAR. THIS CP20B2 WILL LOCATE THE TUBE IN FINAL ASSEMBLY. CP20B1 CP20B1 CP20B2...
- Page 13 FRONT SUPPORT BAR: IMPORTANT! LAY PARTS OUT AS SHOWN. SWING CLAMPS FOUND IN TP1 TRAPEZE BOX. CP20C1 CP20C2 SAFETY BOLT HOLES AS SHOWN! SLIDE ON SWING CLAMPS AND HAND TIGHTEN CHICAGO BOLTS. NOTE CLAMP SCREWS BOTH FACING INWARDS!! NOTE CLAMP BOLTS FACING INWARDS.
- Page 14 MONKEY BARS (MR1800KIT): IMPORTANT! LAY PARTS OUT AS SHOWN. TWO PEOPLE ARE NOW REQUIRED FOR REMAINING ASSEMBLY! STEP 1: POSITION CARGO NET ONTO LADDER AS SHOWN - NO LOOPS TO BOTTOM BRACING TO REAR SHORT TEE WITH NO LOOPS SAFETY BOLT STEP 2: CONNECT MONKEY BARS INTO CLAMPS.
- Page 15 TOP SIDE RAILS NOTE END CAPS TO REAR RIGHT HAND TOP RAIL STEP 3: PLACE RIGHT HAND TOP RAIL ONTO LADDER AS SHOWN AND TIGHTEN BOTTOM BOLTS ONLY. DON’T TIGHTEN THE SAFETY BOLT! SAFETY BOLT TO OUTSIDE STEP 4: SLIDE 1 X ROPE CLIMB AND 1 X SWING CLAMP AS SHOWN.
- Page 16 ONE PERSON IS REQUIRED TO TOP SIDE RAILS SUPPORT FRAME AT ALL TIMES! STEP 6: SLIDE 1 X CARGO LOOP, THEN 1 X SWING STEP 5: PLACE LEFT HAND CLAMP AS SHOWN (SWING TOP RAIL ONTO LADDER CLAMPS FOUND IN NS2 NOTE END CAPS TO REAR AS SHOWN AND TIGHTEN BOX)
- Page 17 CP20A1 STEP 7: ATTACH CP20A1 WITH CHICAGO BOLTS AND SLIDE ON REMINING ROPE CLIMBS. LEAVE LOOSE. STEP 8: GRAB FRONT SUPPORT BAR FOR NEXT STEP...
-
Page 18: Support Bar
STEP 9: ATTACH FRONT SUPPORT BAR ONE SIDE AT A TIME. LOOSLY TIGHTEN WITH ALLEN KEY. SAFETY BOLT HOLES AS SHOWN TO INSIDE!! -
Page 19: Plan View
THREAD LEG THROUGH CARGO NET AND INTO TOP CLAMP. ROTATE UNTIL SAFETY BOLT HOLE IS SHOWN AND INSERT SAFETY BOLT PLAN VIEW SAFETY BOLT HOLES AS SHOWN!! NOTE LEGS FACING OUTWARDS... - Page 20 BOTTOM SIDE RAILS CP20B1 THREAD BOTTOM SIDE RAILS CP20B2 THROUGH CARGO NET AND INTO TOP CLAMP. ROTATE UNTIL SAFETY BOLT HOLE IS SHOWN AND INSERT SAFETY BOLT. REPEAT OTHER SIDE. SAFETY BOLT TO OUTSIDE...
- Page 21 ONCE ALL BOLTS ARE TIGHTENED ON FRAME, MOVE INTO POSITION. INSTALL PEGS TO HOLD BASE PLATE IN PLACE ONE CORNER AT A TIME, LOOSEN AND LIFT FRAME TO ONE SIDE LEAVING BASE PLATE IN PLACE. SCREW GROUND ANCHOR AND WASHER THROUGH BASE PLATE UNTIL FIRMLY SEATED.
- Page 22 FINAL STEP: START AT ONE CORNER OF THE FRAME AND DOUBLE CHECK ALL BOLTS ARE TIGHT. SMALL MOVEMENT IN FRAME IS NORMAL. CONGRATULATIONS! YOU HAVE ASSEMBLED YOUR GROWPLAY COMPACT MONKEY BARS!
