Collegamenti Elettrici - RIB K800 FCM FAST Manual

Hide thumbs Also See for K800 FCM FAST:

Advertisement

Available languages
  • EN

Available languages

  • ENGLISH, page 29
I

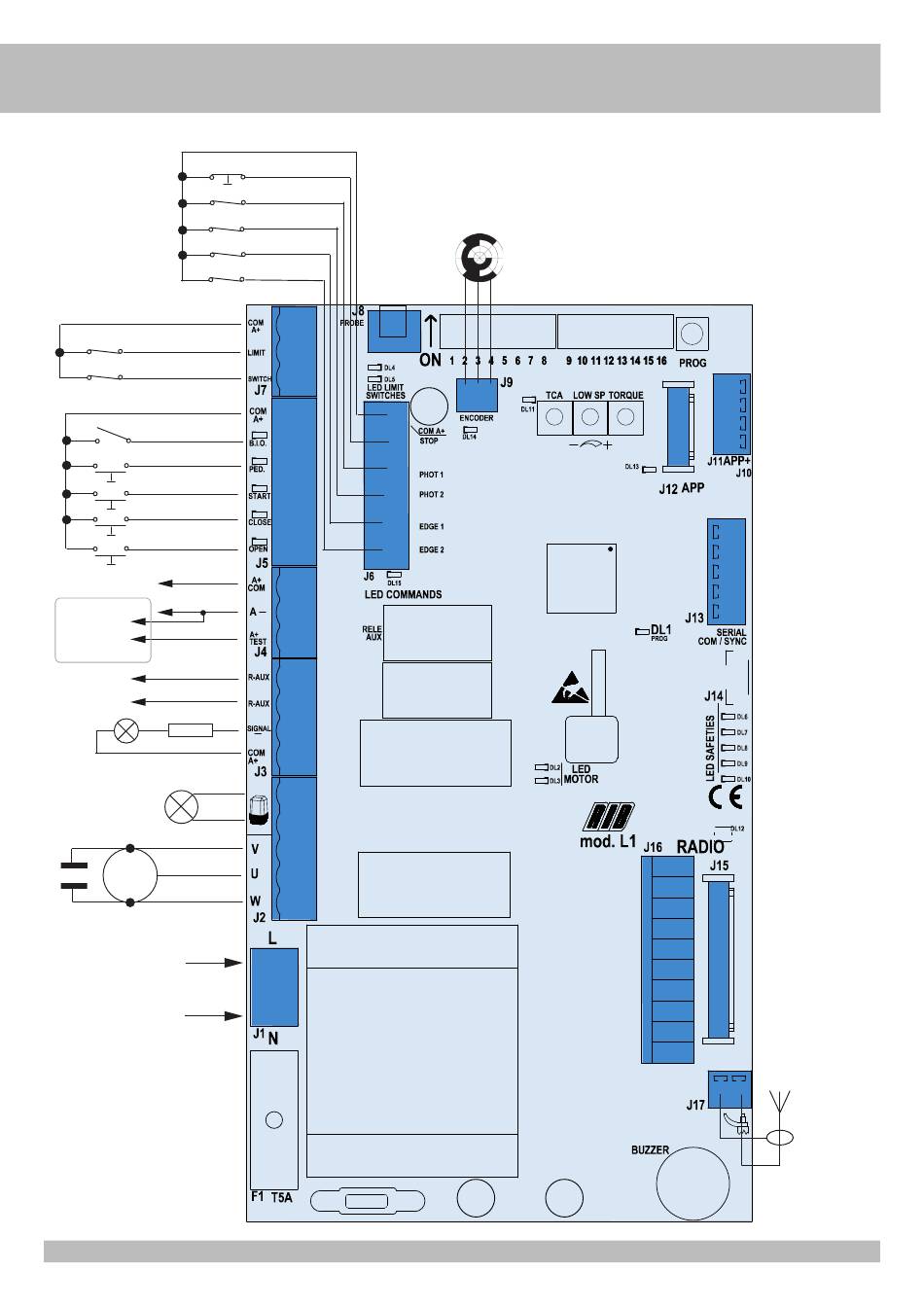

COLLEGAMENTI ELETTRICI

COMUNE
FINECORSA
FINECORSA
COMUNE
OROLOGIO
PEDONALE
COMANDO SINGOLO
CHIUDE
APRE
COMUNE
24Vdc 0,4A ±15%
A+TEST / A-
AUTOTEST
24Vdc 0,4A ±15%
FOTOCELLULE
700 W MAX
R=2,2K 1/4W
LED
COMUNE
LAMPEGGIATORE
230Vac 40W MAX
APRE
COMUNE
M
CHIUDE
ALIMENTAZIONE
230Vac 50 Hz
COMUNE
STOP
FOTOCELLULA 1
FOTOCELLULA 2
COSTA 1
COSTA 2
ENCODER
8
L1
cod. AC08082
ANTENNA
433 MHz
SCHERMATURA
CAVO
D'ANTENNA
