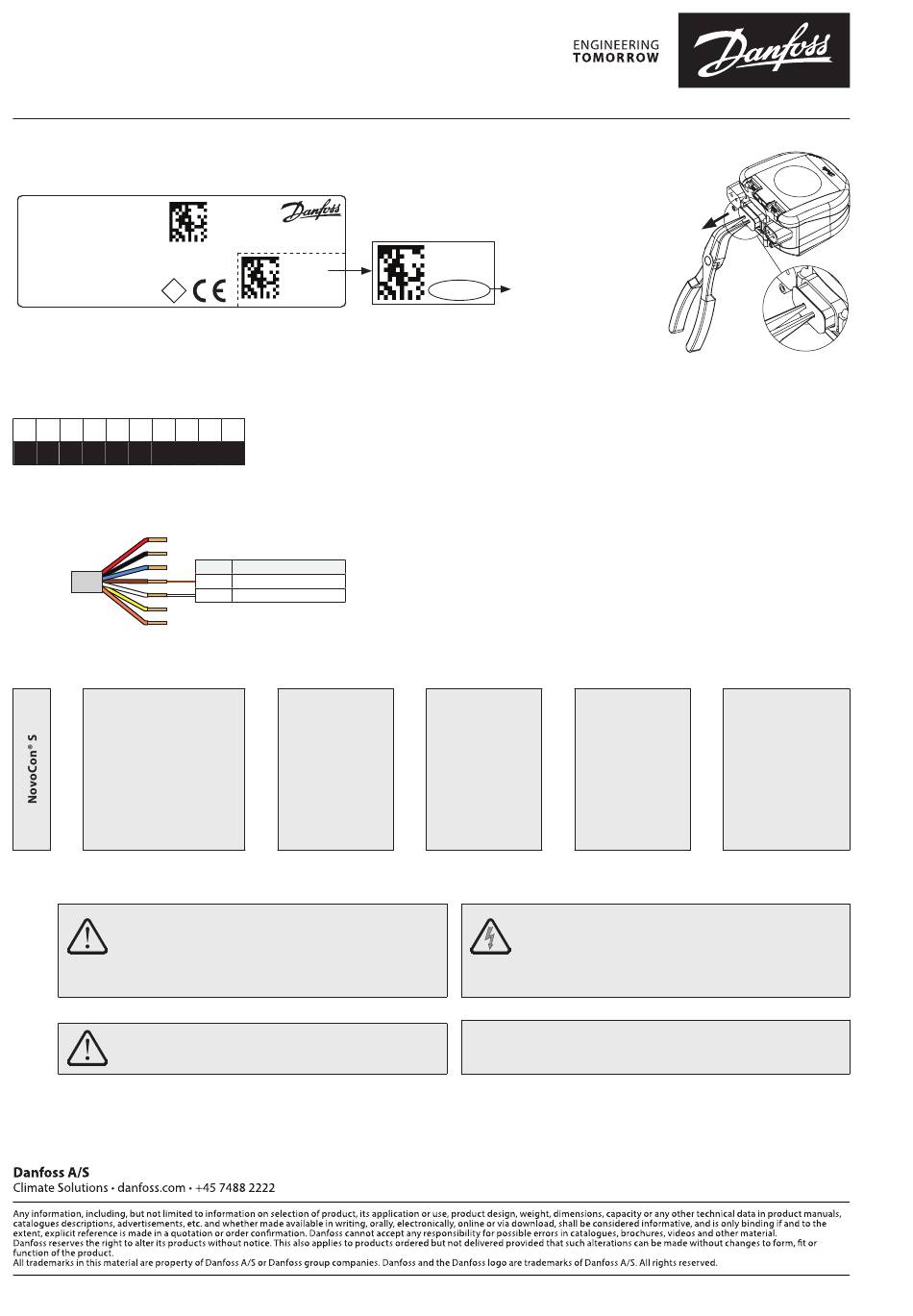

NovoCon® S - High Accuracy Actuator
❽
®
NovoCon S
003Z8504
Actuator for AB-QM DN10-32
Control signal: BACnet MS/TP, Modbus RTU, 0-10V, 0-20mA
Power: 24VAC/DC, 50/60 HZ
Force: 90N. Stroke: 7 mm. Speed: 3-24s/mm
Consumption: 3.3VA running. Standby 0.9W
III
IP54/40, -10T55
❿
DIP Switch
1 2 3 4 5 6 7 8
Optional step (connecting flow sensor)
⓫
Cable NovoCon® I/O
24 V
GND
GND
AI
AO
T1
T2
⓬
Initial configuration
Application mode:
MSV:9 / 32810
Digital control (default),
Analog control,
 
CO6 mode,
Inverted CO6 mode,
CO6 without alarms,
Inverted CO6 without alarms,
Analog CO6 mode,
Analog inverted CO6 mode
Safety Note
⓭
To avoid injury and damage to persons and devices, it is
absolutely necessary these instructions are carefully read and
observed prior to assembly and commissioning.
Necessary assembly, start-up, and maintenance work must be
performed only by qualified, trained and authorised personnel.
Switch off the power line before wiring the actuator.
Safety Note
Connect via safety isolating transformer.
Galvanic separations shall be provided for segments crossing buildings.
ІМПОРТЕР:
UA: ТОВ з ІІ «Данфосс ТОВ», вул. Вікентія Хвойки, 15/15/6, м. Київ, 04080, Україна
2 | © Danfoss | DCS-SGDPT/SI | 2024.03
Serial number and QR code can be removed from the
E100 VXX 01
NovoCon® S label and added to installation drawing.
281624
6430 Nordborg, Denmark
0030471
MADE IN SLOVENIA
E100 VXX 01
281624
0030471
DIP Switches 1 to 7 are used to assign the MAC address manually. Default MAC address assignment
method is Auto MAC addressing for BACnet MS/TP and DIP Switches for Modbus RTU.
9 10
For termination of last unit on the field bus, turn DIP Switch 8 ON.
ON Dip switch 9 is not used.
Dip switch 10 is used to select between BACnet MS/TP (OFF=Default) and Modbus RTU (ON).
OFF
When the protocol is changed on DIP Switch 10, a power cycle is required.
Sharky FS 473
flow sensor
Wire Description
Brown Ground (-)
White Volume pulse output (+)
Select Valve Type
 
MSV:3 / 32802
(default AB-QM 4.0
ISO DN 15)
01
E100 VXX
281624
Device Object
0030471
Instance Number
Select application
   
MSV:10 / 32811
Heating (default)
Cooling
Safety Note
If the NovoCon® S network is supplied with two or more AC
power boosters, caution must be observed when disconnecting
one of the transformers from the high voltage power line. As the
NovoCons are connected in a daisy chain, there may be high
voltage on the primary side of the disconnected power supply. Disconnect
always both the primary and secondary side of the transformer.
Firmware update
We recommend to validate the firmware version before installation.
The latest firmware can be downloaded at www.novocon.com by selecting
the tab: Support files.
❾
Design Flow Rate
Activate calibration
AV:30 / 32796
 
MSV:0 / 33284 state 2
Heating
or use manual
AV:31 / 32798
Cooling
73690900 / AQ251486498741en-010606
calibration
