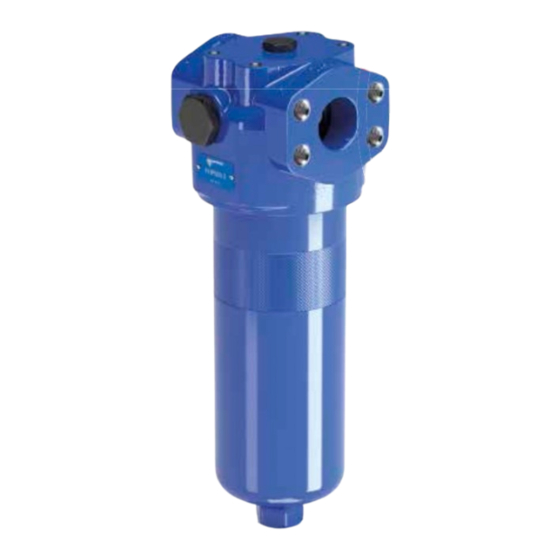

- Page 1 HI PRESSURE FILTERS INSTALLATION, SERVICE AND MAINTENANCE MANUAL AND SAFETY INSTRUCTIONS INSTRUCTIONS FHP500 FHP500 PASSION PERFORM...
-
Page 3: Table Of Contents
TABLE OF CONTENTS Page Description General warnings Tools Handling Dimensional drawings Installation Commissioning Standard maintenance Filter element replacement Special maintenance Clogging indicator (or plug) replacement Seals replacement Instructions for use in explosive atmospheres Regulations Spare parts list Ordering code 13.1 Filter / Housing / Bowl 13.2 Filter element... -
Page 4: Description
- Connect the filter with an anti-loosening system and regularly check the condition of the connection - The declared performances and the safety of the product are only guaranteed when MP Filtri original spare parts are used - Warranty is only effective if MP Filtri original spare parts are used. -
Page 5: Handling
FHP500 Handling - The unit is shipped in a cardboard box with dimensions depending on the order - The handling must be carried out in accordance with the laws in force in the country of use of the product - Handle the product with care, avoid impacts - Store in a dry and frost-free room - The unit should be stored in a suitable location away from the production area when not in use. -
Page 6: Dimensional Drawings
Recommended clearance space for maintenance R - depth 15 mm Nr. 4 holes Recommended clearance space for maintenance Valves S - B - T - D Valves V - Z FHP500 [mm] Connections Filter Execution length [mm] 1/2” UNC 1/2” UNC 1/2”... -
Page 7: Installation
FHP500 Parts identification Parts identification FHP500 Installation Item Description Clogging indicator connection Identification plate Drain plug Clogging indicator connection Identification plate Drain plug - Check that the system working pressure does not exceed the maximum working pressure of the filter. -
Page 8: Standard Maintenance
Standard maintenance FILTER ELEMENT REPLACEMENT The clogging indicator monitors the conditions of the filter element. The alarm signal shown by the differential indicator during the normal working conditions (pressure, temperatures …) means that the filter element needs to be replaced. - Check the availability of the right spare filter element by comparing the part number shown on the element with that shown on the filter name plate or spare parts list - For the disassembly and the assembly of the parts, please refer to the tools table in paragraph 3... - Page 9 FHP500 EXECUTION P01 (Standard) - From length 4 the bowl consists of two parts whose thread are locked - (Fig. 4) Unscrew the filter bowl after placing a vessel to collect the operating fluid - (Fig. 5) If no drain plug is provided, empty the operating fluid from the bowl into the collection vessel - (Fig.
- Page 10 EXECUTION P02 (Maintenance from the bottom of the housing) - In the execution P02 the bowl tube is joined to the head with a thread which is locked - (Fig. 9) Unscrew the bowl cover after placing a vessel to collect the operating fluid - (Fig.
-
Page 11: Special Maintenance
FHP500 Special maintenance CLOGGING INDICATOR (OR PLUG) REPLACEMENT - Check the availability of the right spare parts by comparing the part numbers shown on them with that shown on the filter name plate or spare parts list - For the disassembly and the assembly of the parts, please refer to the tools table in paragraph 3 - Switch off the system - (Fig. - Page 12 EXECUTION P01 (Standard) - From length 4 the bowl consists of two parts whose thread are locked - (Fig. 20) Unscrew the filter bowl after placing a vessel to collect the operating fluid - (Fig. 21) If no drain plug is provided, empty the operating fluid from the bowl into the collection vessel - (Fig.
- Page 13 FHP500 EXECUTION P02 (Maintenance from the bottom of the housing) - In the execution P02 the bowl tube is joined to the head with a thread which is locked - (Fig. 26) Unscrew the bowl cover after placing a vessel to collect the operating fluid - (Fig.
-
Page 14: Instructions For Use In Explosive Atmospheres
MP FILTRI has carried out a voluntary certification of a part of the product range in compliance with directive 2014/34/EU, in order to guarantee an appropriate degree of safety in these particular conditions. -
Page 15: Spare Parts List
FHP500 Spare parts list FHP500 12. Spare parts list Item Quantity Description Designation / Ordering code Complete filter Housing See “Ordering Code” table Item Q.ty Description Designation / ordering code Bowl assembly Filter element Complete filter See ordering table Clogging indicator... -
Page 16: Ordering Code
6 µm Inorganic microfiber 10 µm Inorganic microfiber 16 µm Inorganic microfiber 25 µm M25 Wire mesh 25 µm Filter length Execution MP Filtri standard • • • • • Valves Maintenance from the Element ∆p • • bottom of the housing 20 bar •... -
Page 17: Filter Element
25 µm Seals EPDM Element ∆p 20 bar 20 bar 210 bar Execution MP Filtri standard Customized CLOGGING INDICATORS Electrical differential indicator Electrical differential indicator Electrical / visual differential indicator Electrical / visual differential indicator Electrical differential indicator Visual differential indicator... -
Page 18: Troubleshooting
14. Troubleshooting 14.1 MISUSE OF THE PRODUCT This product should be connected to a hydraulic line; this must not exceed upper pressure limit of the product. his product should follow all standard operating procedures previously set at the operating location as well as the procedures required by the manufacturer. - Page 19 All data, details and words contained in this publication are provided for use by technically qualifi ed personnel at their discretion, without warranty of any kind. MP Filtri reserves the right to make modifi cations to the models and versions of the described products at any time for both technical and/or commercial reasons.
- Page 20 WORLDWIDE NETWORK CANADA CHINA FRANCE GERMANY INDIA SINGAPORE UNITED ARAB EMIRATES UNITED KINGDOM ITALY PASSION PERFORM mp ltri.com...
