Summary of Contents for Strong SM-SWIVEL2-M

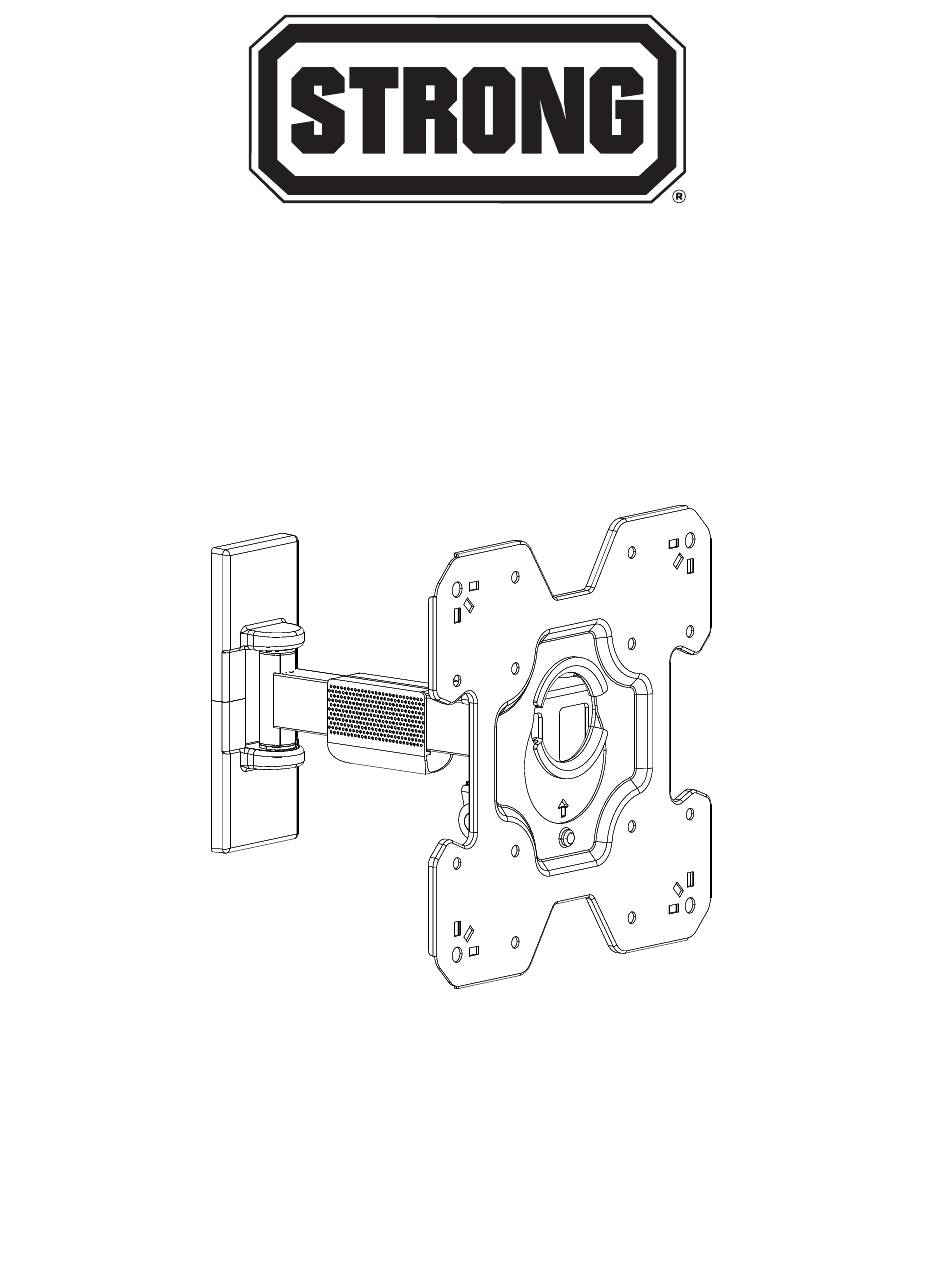

- Page 1 SM-SWIVEL2-M Strong™ Medium Swivel Mount Install Guide...
- Page 2 Hardware kit Bag 1 Concrete Lag bolt (x3) wall anchor (x3) M4 x 20mm Philips M5 x 12mm Philips M4 x 12mm Philips M4 x 15mm Philips head screw (x4) head screw (x4) head screw (x4) head screw (x4) Bag 2 M5 x 15mm Philips M5 x 20mm Philips M5 x 30mm Philips...
- Page 3 Installation Mark the mounting hole locations Use the wall plate to mark the mounting hole locations. We highly recommend using a stud finder. Mounting on a stud wall 1. Pre-drill two holes into the stud using a 3/16" drill bit. Be sure to drill into the center of the studs.
- Page 4 Snap One, LLC (formerly known as Wirepath Home Systems, LLC), in the United States and/or other countries. 4Store, 4Sight, Control4, Control4 My Home, SnapAV, Strong, and OvrC are also registered trademarks or trademarks of Snap One, LLC. Other names and brands may be claimed as the property of their respective owners. Snap One makes no claim that the information contained herein covers all installation scenarios and contingencies, or product use risks.
