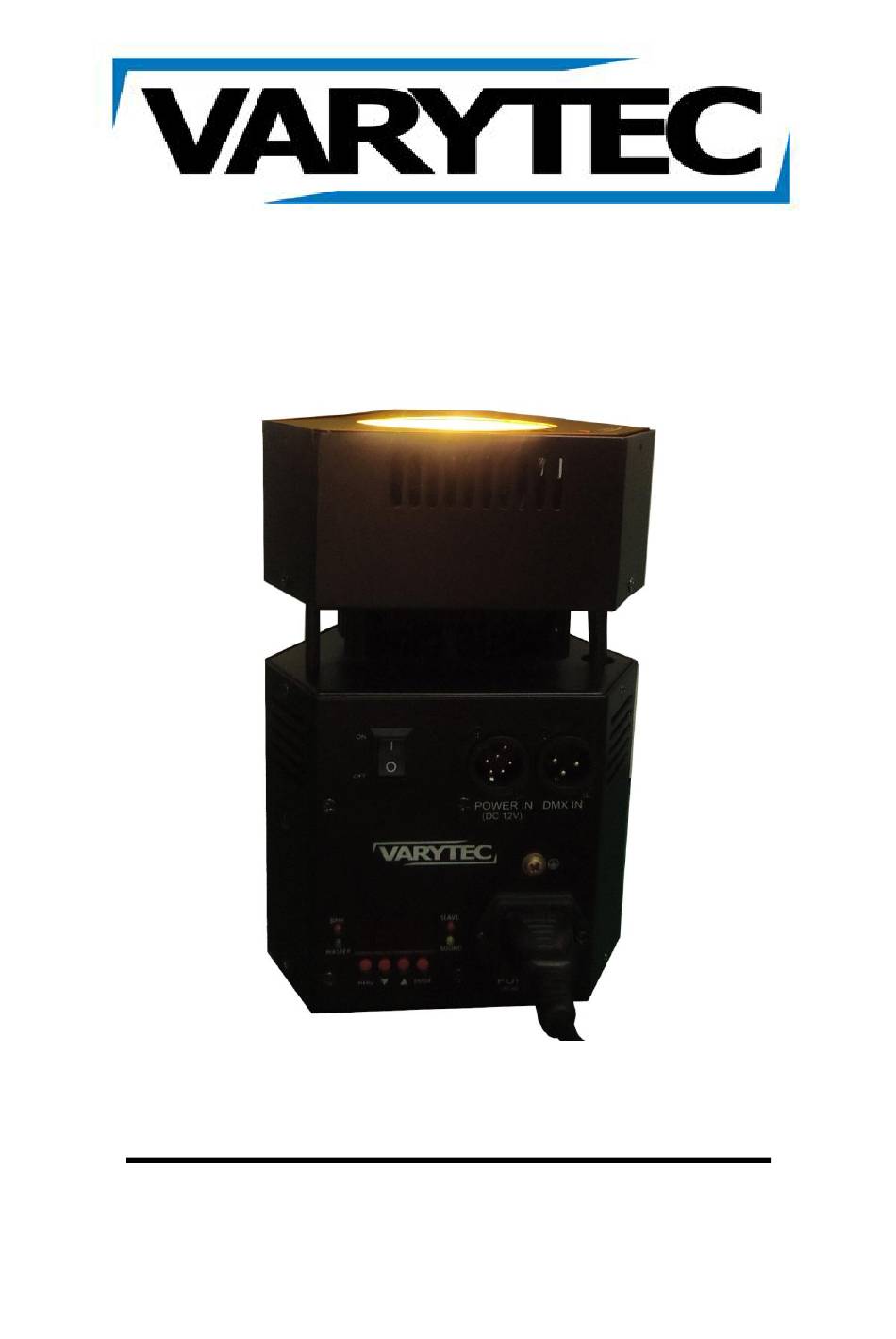

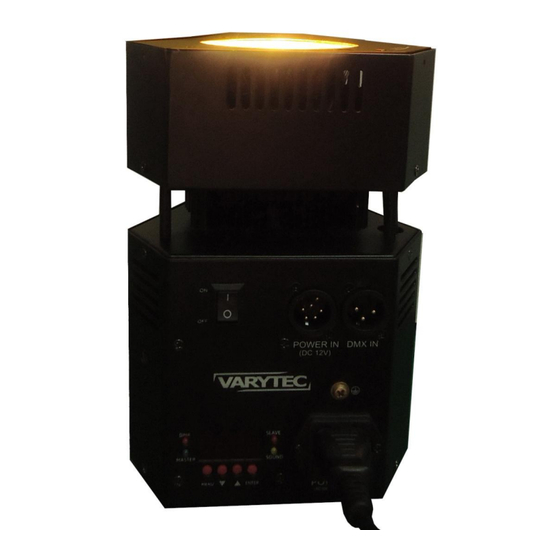

  • Page 1 User manual Truss Light COB LED 30W...
  • Page 2 User manual Focusing tube Truss Light COB LED 30W 2 / 11...

  • Page 3: Table Of Contents

    Table of contents Safety instructions ..........................4 1.1. FOR SAFE AND EFFICIENT OPERATION.................. 4 Technical data ..........................5 Operating Instruction: ........................5 3.1. MENU structure ..........................5 DMX Mode Chart ..........................7 4.1. DMX 1 (1channel) ......................... 7 4.2. DMX 2 (2 channels) ........................7 4.3.

  • Page 4: Safety Instructions

    1. Safety instructions  This device is suitable for indoor use only.  All modifications to the device will void the warranty.  Repairs are to carry out by skilled personnel only.  Use only fuses of the same type and original parts as spare parts. ...

  • Page 5: Technical Data

    2. Technical data Voltage 100 - 240V; 50/60Hz Power consumption max. Current max. 0,2A DMX 512 Connector 3 Pin XLR Weight 2.1 kg Measures (L x W x H) 148x 129x 220mm Max. ambient temperature 0° - 40°C Max. Housing temperature 60°C Fuse F1A, 250V...
  • Page 6 … Sh 19 Sh 20 automatic run through all programs Sh n Sound programs Program speed adjust SPEd 0=off 1-31=slow-fast SLAU Light working master 0 Mast Light working master SL 1 … 4 DMX modes: SL 1…SL 4 SLnd SL 4 5 lve Slave mode Off: Close sound mode...

  • Page 7: Dmx Mode Chart

    4. DMX Mode Chart 4.1. DMX 1 (1channel) Value Function Channel 0-255 0 = Off 1-255 = 36 different color macros 4.2. DMX 2 (2 channels) Value Function Channel 0-255 0 = Off 1-255 = 36 different color macros 0-255 0 = Off 1-255 = Master dimmer 4.3.

  • Page 8: Set Color In Stand-Alone Mode (Saved)

    Value Function Channel 0-255 Adjust red LEDs dimmer low to high 0-255 Adjust green LEDs dimmer low to high 0-255 Adjust blue LEDs dimmer low to high 0-8 = LED flash off 9-255 = speed of shutter/special functions slow-fast, sound 9-255 sensitivity, NOTE: ´0-128 static color change, >129 flash color change...

  • Page 9: Photometric Data

    Now you can switch the device off and the color is saved if you switch it on again. To set your own color mixing you have to make following settings. 1. Press MENU. 2. Step to Shnd and press ENTER. 3.
  • Page 10 10 / 11...
  • Page 11 Importer: B & K Braun GmbH Industriestraße 2 D-76307 Karlsbad www.bkbraun.com info@bkbraun.com 11 / 11...
