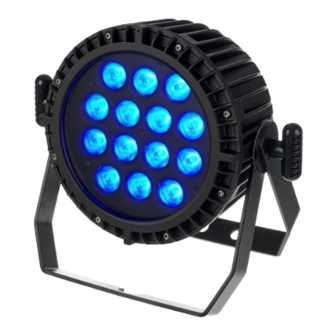

Event Par IP65 4in1 14x8W,
Event Par IP65 4in1 14x8W WDMX
LED PAR

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Event Par IP65 4in1 14x8W and is the answer not in the manual?

Questions and answers

Related Manuals for Varytec Event Par IP65 4in1 14x8W

Summary of Contents for Varytec Event Par IP65 4in1 14x8W

  • Page 1 Event Par IP65 4in1 14x8W, Event Par IP65 4in1 14x8W WDMX LED PAR...
  • Page 2 Thomann GmbH Hans-Thomann-Straße 1 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 Internet: www.thomann.de 06.09.2023, ID: 452127, 435626...

  • Page 3: Table Of Contents

    7.4 Functions in 4-channel DMX mode................... 33 7.5 Functions in 7-channel DMX mode................... 33 7.6 Functions in 9-channel DMX mode................... 34 Technical specifications........................36 Plug and connection assignments....................39 Troubleshooting............................40 Cleaning............................... 42 Event Par IP65 4in1 14x8W, Event Par IP65 4in1 14x8W WDMX LED PAR...
  • Page 4 Table of contents Protecting the environment......................43 Event Par IP65 4in1 14x8W, Event Par IP65 4in1 14x8W WDMX LED PAR...
  • Page 5 Event Par IP65 4in1 14x8W, Event Par IP65 4in1 14x8W WDMX LED PAR...

  • Page 6: General Information

    1.1 Symbols and signal words In this section you will find an overview of the meaning of symbols and signal words that are used in this document. Event Par IP65 4in1 14x8W, Event Par IP65 4in1 14x8W WDMX LED PAR...
  • Page 7 Warning signs Type of danger Warning – dangers due to batteries. Warning – high-voltage. Warning – hot surface. Event Par IP65 4in1 14x8W, Event Par IP65 4in1 14x8W WDMX LED PAR...
  • Page 8 General information Warning signs Type of danger Warning – dangerous optical radiation. Warning – suspended load. Warning – danger zone. Event Par IP65 4in1 14x8W, Event Par IP65 4in1 14x8W WDMX LED PAR...

  • Page 9: Safety

    Always dispose of packaging material properly when it is not in use. Never allow children to use the device without supervi‐ sion. Keep small parts away from children and make sure that the device does not shed any small parts (such knobs) that children could play with. Event Par IP65 4in1 14x8W, Event Par IP65 4in1 14x8W WDMX LED PAR...
  • Page 10 The surface of the device becomes very hot during operation. Skin contact can result in burns. Never touch the device with your bare hands during operation. After switching off the device, wait for at least 15 minutes before touching it. Event Par IP65 4in1 14x8W, Event Par IP65 4in1 14x8W WDMX LED PAR...
  • Page 11 Only use power cords with a cable cross-section designed for the required current intensity when connecting the devices in series. Event Par IP65 4in1 14x8W, Event Par IP65 4in1 14x8W WDMX LED PAR...

  • Page 12: Features

    That is why this equipment can also be used outdoors. Event technology equipment is generally only designed for temporary use however (event lighting) and not for permanent use outdoors. Event Par IP65 4in1 14x8W, Event Par IP65 4in1 14x8W WDMX LED PAR...
  • Page 13 You can extend the service life of the illuminants by providing adequate ventilation and operating the LEDs with the lowest possible brightness. Event Par IP65 4in1 14x8W, Event Par IP65 4in1 14x8W WDMX LED PAR...

  • Page 14: Installation

    To fully protect the product against vibration, dust and moisture during transportation or storage use the original packaging or your own packaging material suitable for transport or storage, respectively. Event Par IP65 4in1 14x8W, Event Par IP65 4in1 14x8W WDMX LED PAR...
  • Page 15 Electrolyte can escape from damaged lithium batteries. Put the damaged lithium battery in air-tight packaging. Collect the electrolyte with absorbent paper. Wear rubber gloves while doing so. Event Par IP65 4in1 14x8W, Event Par IP65 4in1 14x8W WDMX LED PAR...
  • Page 16 Do not operate the unit at ambient temperatures outside the specified tempera‐ ture range (see chapter "Technical data" of the user manual). Always ensure sufficient ventilation at the operating location. Event Par IP65 4in1 14x8W, Event Par IP65 4in1 14x8W WDMX LED PAR...
  • Page 17 Do not connect the DMX input and output to audio devices, e.g. mixers or ampli‐ fiers. Use special DMX cables for the wiring instead of normal microphone cables. Event Par IP65 4in1 14x8W, Event Par IP65 4in1 14x8W WDMX LED PAR...
  • Page 18 Always work from a stable platform whenever installing, moving or servicing the unit. In doing so, the area underneath the unit must be cordoned off. Please note that this device must not be connected to a dimmer. Event Par IP65 4in1 14x8W, Event Par IP65 4in1 14x8W WDMX LED PAR...

  • Page 19: Starting Up

    Always ensure that the output of the last DMX device in the daisy chain is terminated with a resistor (110 Ω, ¼ W). Event Par IP65 4in1 14x8W, Event Par IP65 4in1 14x8W WDMX LED PAR...
  • Page 20 DMX input of the first slave device. Then connect the DMX output of the first slave device to the DMX input of the second slave device and so on. Event Par IP65 4in1 14x8W, Event Par IP65 4in1 14x8W WDMX LED PAR...
  • Page 21 Batteries can leak and cause permanent damage to the device. Take the batteries out of the device if it is not going to be used for an extended period of time. Event Par IP65 4in1 14x8W, Event Par IP65 4in1 14x8W WDMX LED PAR...

  • Page 22: Connections And Controls

    Varytec Event Par IP65 4in1 14x8W (item number 435626) ö MENU DOWN ENTER Pressure Valve PUSH POWER IN POWER OUT DMX OUT DMX IN Event Par IP65 4in1 14x8W 25° & Event Par IP65 4in1 14x8W, Event Par IP65 4in1 14x8W WDMX LED PAR...
  • Page 23 7 [POWER OUT] | Lockable output socket (Power Twist TR1 IP65) for the power supply of further devices 8 [POWER IN] | Lockable input socket (Power Twist TR1 IP65) for powering the device Event Par IP65 4in1 14x8W, Event Par IP65 4in1 14x8W WDMX LED PAR...
  • Page 24 14x8W WDMX (item number 452127) ö WDMX Status MENU DOWN ENTER Pressure Valve PUSH POWER IN POWER OUT DMX OUT DMX IN Event Par IP65 4in1 14x8W WDMX 25° & Event Par IP65 4in1 14x8W, Event Par IP65 4in1 14x8W WDMX LED PAR...
  • Page 25 7 [POWER OUT] | Lockable output socket (Power Twist TR1 IP65) for the power supply of further devices 8 [POWER IN] | Lockable input socket (Power Twist TR1 IP65) for powering the device 9 [ANT] | Antenna for wireless control via W-DMX Event Par IP65 4in1 14x8W, Event Par IP65 4in1 14x8W WDMX LED PAR...
  • Page 26 11 [R+G], [R+B], [R+W], [R+A], [A+B] | Activates the default colour schemes red/green, red/blue, red/white, amber/blue. 12 [BLACKOUT] | Activates the blackout function and deactivates it again. Event Par IP65 4in1 14x8W, Event Par IP65 4in1 14x8W WDMX LED PAR...
  • Page 27 [STROBE] | Starts or stops the flashing light function (strobe effect) with the last colour selected. 13 [Red], [Green], [Blue], [White], [Amber], [Purple] | Activates the colours red, green, blue, white, amber, purple. Event Par IP65 4in1 14x8W, Event Par IP65 4in1 14x8W WDMX LED PAR...

  • Page 28: Operating

    To close the main menu, press [MENU]. All previously made settings are retained even when you disconnect the device from the power grid. The following table shows the setting options. Event Par IP65 4in1 14x8W, Event Par IP65 4in1 14x8W WDMX LED PAR...
  • Page 29 Display: ‘SH-1’ … ‘SH-5’ Adjusts the effect speed. Display: ‘SP01’ … ‘SP05’ ‘FAde’ Adjusts the fader. Display: ‘FA-1’ … ‘FA-5’ Adjusts the fader speed. Display: ‘SP01’ … ‘SP05’ Event Par IP65 4in1 14x8W, Event Par IP65 4in1 14x8W WDMX LED PAR...
  • Page 30 Enables wireless control via W-DMX (available only for Varytec Event Par IP65 4in1 14x8W WDMX). W-DMX enabled: ‘on’ W-DMX disabled: ‘oFF’ ‘Ir’ Enables or disables the remote control. Remote control enabled: ‘on’ Remote control disabled: ‘oFF’ Event Par IP65 4in1 14x8W, Event Par IP65 4in1 14x8W WDMX LED PAR...

  • Page 31: Menu Overview

    CH 4 Co 1 SH-1 FA-1 So00 FL01 SL-N A512 CH 7 C015 SH-5 FA-5 So10 FL15 SL-U CH 9 Gree SP01 SP01 SP15 SP15 bLUe Uhte Event Par IP65 4in1 14x8W, Event Par IP65 4in1 14x8W WDMX LED PAR...
  • Page 32 CH 4 Co 1 SH-1 FA-1 So00 FL01 SL-N A512 CH 7 C015 SH-5 FA-5 So10 FL15 SL-U CH 9 Gree SP01 SP01 SP15 SP15 bLUe Uhte Event Par IP65 4in1 14x8W, Event Par IP65 4in1 14x8W WDMX LED PAR...

  • Page 33: Functions In 4-Channel Dmx Mode

    Intensity green (0 % to 100 %) 0…255 Intensity blue (0 % to 100 %) 0…255 Intensity white (0 % to 100 %) 0…255 Master dimmer (0 % bis 100 %) 0…10 open Event Par IP65 4in1 14x8W, Event Par IP65 4in1 14x8W WDMX LED PAR...

  • Page 34: Functions In 9-Channel Dmx Mode

    Intensity green (0 % to 100 %) 0…255 Intensity blue (0 % to 100 %) 0…255 Intensity white (0 % to 100 %) 0…255 Master dimmer (0 % bis 100 %) 0…10 open Event Par IP65 4in1 14x8W, Event Par IP65 4in1 14x8W WDMX LED PAR...
  • Page 35 Colour change with cross-fade, increasing speed 201…255 Sound control 0…255 Colour change or fade programme speed if channel 7 = 11…200 0…14 No function 15…255 Sound control, increasing sensitivity Event Par IP65 4in1 14x8W, Event Par IP65 4in1 14x8W WDMX LED PAR...

  • Page 36: Technical Specifications

    Output connections Voltage supply Lockable Power Twist output socket TR1 IP65 DMX control XLR chassis-mounted coupling (IP65), 3- W-DMX Frequency of operation — 2.400 GHz … 2.4835 GHz Event Par IP65 4in1 14x8W, Event Par IP65 4in1 14x8W WDMX LED PAR...
  • Page 37 Dimensions (W × H × D) 293 mm × 298 mm × 155 mm Weight 4.8 kg Ambient conditions Temperature range 0 °C…40 °C Relative humidity 20 %…80 % (non-condensing) Event Par IP65 4in1 14x8W, Event Par IP65 4in1 14x8W WDMX LED PAR...
  • Page 38 435626 452127 Design Outdoor housing Outdoor housing Colour mixture RGBW RGBW LED type x-in-1 x-in-1 Base housing Fanless Remote control Included Included W-DMX Housing colour Black Black Event Par IP65 4in1 14x8W, Event Par IP65 4in1 14x8W WDMX LED PAR...

  • Page 39: Plug And Connection Assignments

    XLR plug. Configuration Ground, shielding Signal inverted (DMX–, ‘cold signal’) Signal (DMX+, ‘hot signal’) Event Par IP65 4in1 14x8W, Event Par IP65 4in1 14x8W WDMX LED PAR...

  • Page 40: Troubleshooting

    Use special DMX cables for the wiring instead of normal microphone cables. In the following we list a few common problems that may occur during operation. We give you some suggestions for easy troubleshooting: Event Par IP65 4in1 14x8W, Event Par IP65 4in1 14x8W WDMX LED PAR...
  • Page 41 DMX interface circuit. If the procedures recommended above do not succeed, please contact our Service Center. You can find the contact information at www.thomann.de. Event Par IP65 4in1 14x8W, Event Par IP65 4in1 14x8W WDMX LED PAR...

  • Page 42: Cleaning

    Clean with a soft cloth using our lamp and lens cleaner (item no. 280122). Always dry the parts carefully. Event Par IP65 4in1 14x8W, Event Par IP65 4in1 14x8W WDMX LED PAR...
  • Page 43 Permanently built-in lithium batteries must be disposed of together with the device. Please inquire about an appropriate collection point. Event Par IP65 4in1 14x8W, Event Par IP65 4in1 14x8W WDMX LED PAR...
  • Page 44 Dispose of this device through an approved waste disposal firm or through your local waste facility. When discarding the device, comply with the rules and regulations that apply in your country. If in doubt, consult your local waste disposal facility. Event Par IP65 4in1 14x8W, Event Par IP65 4in1 14x8W WDMX LED PAR...
  • Page 45 Notes Event Par IP65 4in1 14x8W, Event Par IP65 4in1 14x8W WDMX LED PAR...
  • Page 46 Notes Event Par IP65 4in1 14x8W, Event Par IP65 4in1 14x8W WDMX LED PAR...
  • Page 48 Musikhaus Thomann · Hans-Thomann-Straße 1 · 96138 Burgebrach · Germany · www.thomann.de...
