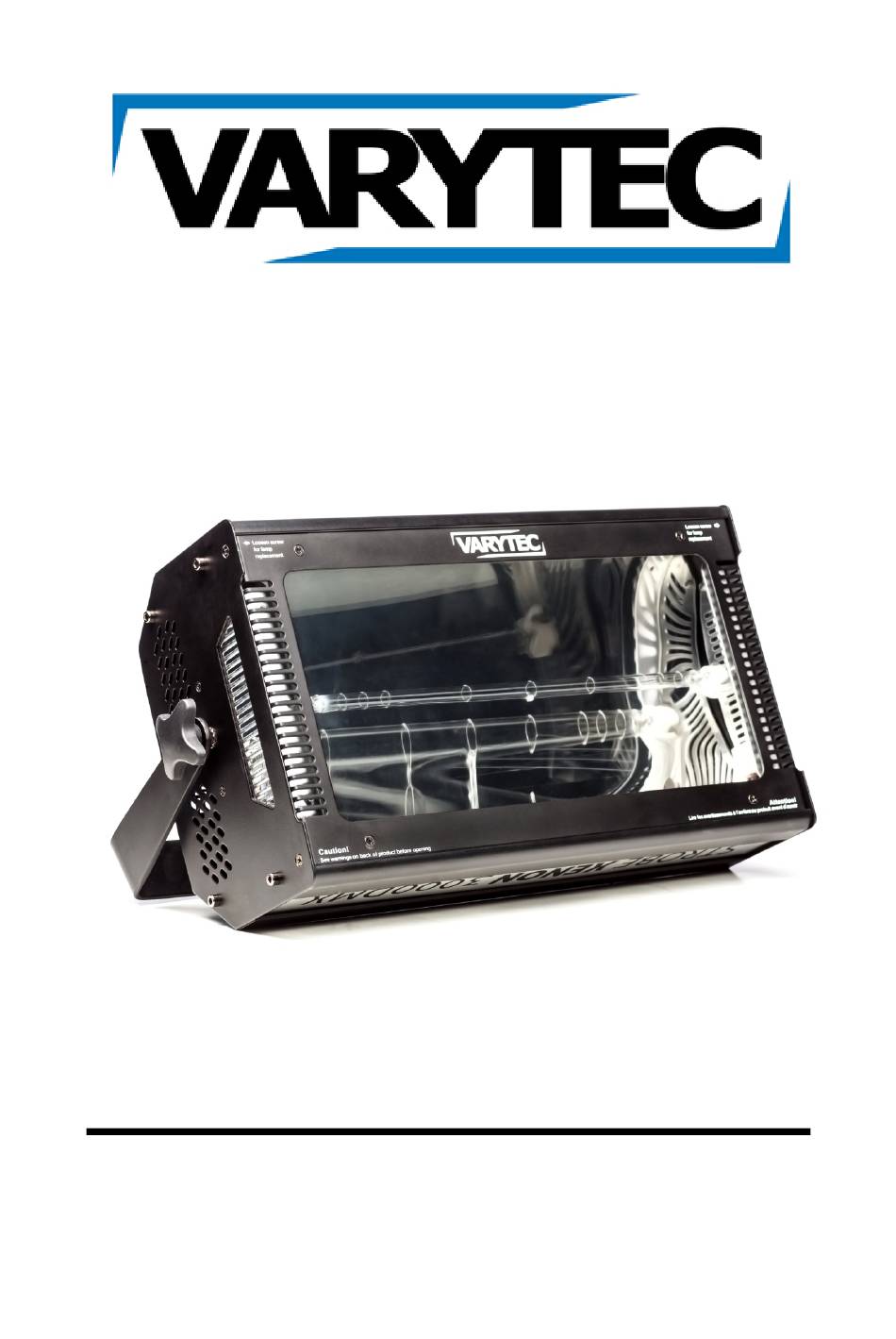

- Page 1 Manual Strobe Xenon 3000DMX...
-
Page 2: Table Of Contents
Table of contents Safety instructions ..........................3 1.1. Instructions for a safe and efficient operation ................3 1.2. Further safety instructions ....................... 4 Introduction ............................7 Connections ............................. 7 3.1. Electrical connections ......................7 3.2. DMX connections ........................7 3.3. DMX connection with terminator.................... -
Page 3: Safety Instructions
1. Safety instructions • This Device is suitable for indoor use only. • All modifications will void the warranty. • Repairs have to be carried out by skilled personnel only. • Only use fuses of the same type and original parts as spare parts. •... -
Page 4: Further Safety Instructions
1.2. Further safety instructions IMPORTANT Keep away from water and humidity! Make sure to unplug the power supply before opening the housing! Please read careful through this manual before the first start-up. All persons which are entrusted with installation, start-up, operation, maintenance and repair of this device have to: •... - Page 5 Designated use This device was developed for professional use on stages, in discos, theatres etc. The device is only approved for a connection up to 230V 50/60 Hz AC voltage and only for indoor use. Regular breaks during operation increase the lifetime of your device. Avoid convulsions or any form of forceful impact during the installation or the start-up of the device.
- Page 6 Overhead installation Danger of life! You have to observe the regulations of BGV C1 (formerly VBG 70) and EN60598-2-17 Installations are to carry out by skilled personnel only. The suspension devices have to be build and measured so they can withstand for an hour the tenfold of the payload without suffering a permanent detrimental deformation.
-
Page 7: Introduction

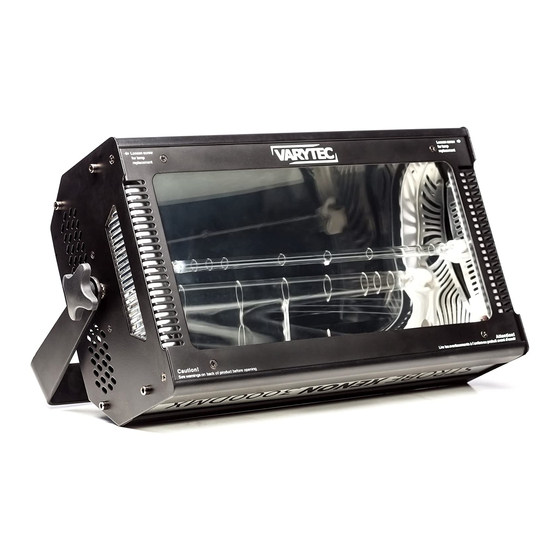

2. Introduction Thank you for buying the Strobe Xenon 3000DMX. It is a powerful device. For a successful installation and operation, please read this manual carefully. 3. Connections 3.1. Electrical connections If you wish to change the power supply settings, see the chapter Appendix. Connect the fixture to the mains with the enclosed power cable and plug. -
Page 8: Bedienung
Low power 4.2. Compatible lamps For the Strobe Xenon 3000DMX are two different lamp available: the XOP 7-OF and the XOP 15-OF. The XOP 7 operates on voltages from 90V to 260V and is recommended for use with the main suppliers under 200V. - Page 9 9 / 16...
-
Page 10: Standalone Mode
Channel 2 Channel 14 Channel 46 Channel 100 4.5. Standalone mode This chapter describes how you can control the Strobe Xenon 3000DMX without a controller. • Set pin 1 of the Mode-DIPs on. • Set the pins 2-5 off. •... -
Page 11: Dmx Chart
5. DMX chart 5.1. Mode 1 (1 channel) Value Channel Value to Function from No function Strobe slow-fast Full on 5.2. Mode 2 (3 channels) Channel Value Value to Function from Dimmer 0-100% Flash duration short-long Flash rate slow-fast 5.3. Mode 3 (4 channels) Channel Value Value to... -
Page 12: Replace The Lamp
6. Replace the lamp 1. Disconnect the fixture from the power supply system and allow the capacitor to discharge for 1 min and cool down the fixture. 2. Remove the screw on the sides and open the front glass cover. 3. -
Page 13: Technical Data
7. Technical data Power supply Voltage AC90-240V, 50/60Hz Power consumption max. 3500 W Battery Light source LM type XOP1500 Xenon Flashtube Power 3000 W Number/Power 1/3000 W Optics Flash rate 0-25 Flashes/s Connections Current in Open cable and Current out XLR in/out 3Pin, 5Pin Controlling... - Page 14 14 / 16...
- Page 15 15 / 16...
- Page 16 Importeur: B & K Braun GmbH Industriestraße 2 D-76307 Karlsbad www.bkbraun.com info@bkbraun.com 16 / 16...
