USE AND CARE GUIDE

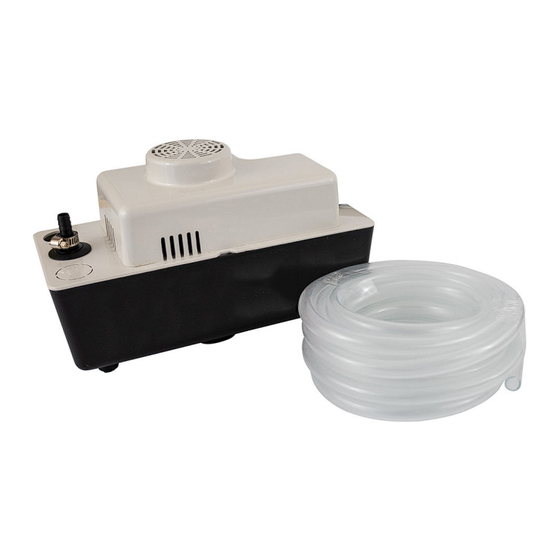

AUTOMATIC CONDENSATE PUMP
CP-120
SPECIFICATIONS
Power supply:
115V, 60 HZ., 10 Amp Circuit
Liquid Temp. Range:
32°F to 95°F(0°-35°C)
Discharge:
3/8 in. Hose barb
HP
GPH OF WATER @ TOTAL FEET OF LIFT
MAX LIFT
0 ft
5 ft
10 ft
15 ft
18
1/20
Feet
132
108
72
24
IMPORTANT!
READ ALL INSTRUCTIONS CONTAINED IN THIS MANUAL
BEFORE USING THIS PRODUCT.
Save these instructions for future reference Failure to read and follow the
warnings and instructions within this instruction manual could result in prop-
erty damage, serious injury or death.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for PumpSpy CP-120
Summary of Contents for PumpSpy CP-120
- Page 1 USE AND CARE GUIDE AUTOMATIC CONDENSATE PUMP CP-120 SPECIFICATIONS Power supply: 115V, 60 HZ., 10 Amp Circuit Liquid Temp. Range: 32°F to 95°F(0°-35°C) Discharge: 3/8 in. Hose barb GPH OF WATER @ TOTAL FEET OF LIFT MAX LIFT 0 ft...
-
Page 2: Safety Information
Safety Information DANGER: Do not pump flammable or explosive liquids such as oil, gasoline, kerosene, ethanol, etc. Do not use in the presence of flammable or explosive vapors. Using this pump with or near flammable liquids can cause an explosion or fire, resulting in property damage, serious personal injury, and/or death. - Page 3 Safety Information (Continued) CAUTION: Know the pump and its applications, limitations, and potential hazards. CAUTION: Follow all local electrical and safety codes, along with the National Electrical Code (NEC). In addition, all Occupational Safety and Health Administration (OSHA) guidelines must be followed. IMPORTANT: The motor of this pump has a thermal protector that will trip if the motor becomes too hot.
-
Page 4: Installation
APPLICATION • This non-submersible utility pump is designed for condensate removal applications. Pump water only with this pump. • This pump has not been tested or approved for use in swimming pools or in salt-water marine areas. • This pump is not designed to function as a permanently installed sump pump. - Page 5 INSTALLATION (Continued) Connecting the air conditioning condensate drain tubing: Ensure the tubing to the pump intake is fastened securely so that it cannot come out of the pump intake port. Cut the tubing at an angle so that the bottom of the reservoir does not close the tubing outlet.
- Page 6 INSTALLATION (Continued) Plug in the Pump Plug the pump power cord into a 115 volt properly grounded power outlet. SAFETY SWITCH The safety switch is designed to activate an alarm (sold separately) or to cut off power in the event of high water in the condensate reservoir. To control a thermostatic circuit, the COM and NO connections from the safety switch are to be wired in series with the low voltage thermostat circuit to shut down the heating/AC circuit.
-
Page 7: Troubleshooting
TROUBLESHOOTING Problem Cause Corrective Action The pump does 1. The house fuse is 1. If blown, replace with a fuse of not start blown. proper size. 2. The breaker is tripped. 2. Reset the breaker. 3. The plug is 3. Secure the plug. disconnected. -
Page 8: Limited One-Year Warranty
(the “Warranty Period”). During the warranty period, PumpSpy will repair or replace at no cost to you, to correct such defects in products found upon examination by PumpSpy to be defective in materials or workmanship.
