PUMP
INSTALLATION AND OPERATING INSTRUCTIONS
PumpSpy™ | Tech Support: 515.999.6935 | support@PumpSpy.com
34000 LEAR INDUSTRIAL PARKWAY, AVON, OH 44011
PumpSpy
The PumpSpy System requires a 12V Deep Cycle Battery with
a minimum 75AMP/HR rating. AGM Battery strongly recommended.
READ ALL INSTRUCTIONS CONTAINED IN THIS MANUAL BEFORE USING THIS PRODUCT.
Save these instructions for future reference. Failure to read and follow the warnings and instructions within this instruction manual
© PumpSpy Technology, LLC Questions?
SPY

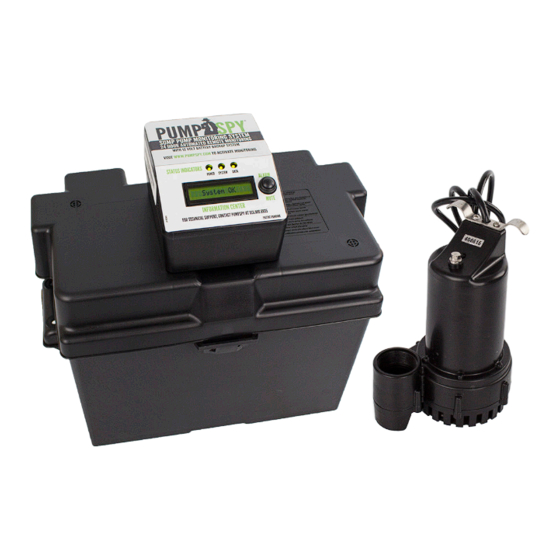

PS1000
™
IMPORTANT !
could result in property damage, serious injury or death.
®
SPECIFICATIONS
12 VDC Sump Pump
Power Supply Requirements
Motor
AMP Rating
Temperature Rating
Discharge
MAX Flow
System Solid State Pump Controller
Power Supply Requirements
Electrical Ratings
Relative Humidity
Storage Temperature
Operating Temperature
Call Tech Support: 515.999.6935
12 VDC
Brushless DC
18 Amps
40°F to 120°F
1 1/2" NPT
3000 GPH
120 VAC, 60 Hz, 15 AMP
12Amps @ 120 VAC
18 Amps @ 12 VDC
0 to 80%
0° to 70° C
0° to 50° C
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for PumpSpy PS1000
Summary of Contents for PumpSpy PS1000
-
Page 1: Installation And Operating Instructions
0° to 70° C Storage Temperature 0° to 50° C Operating Temperature The PumpSpy System requires a 12V Deep Cycle Battery with a minimum 75AMP/HR rating. AGM Battery strongly recommended. IMPORTANT ! READ ALL INSTRUCTIONS CONTAINED IN THIS MANUAL BEFORE USING THIS PRODUCT. -
Page 2: Safety First
WARNING! Do not use an extension cord. Extension cords could present a safety hazard if not properly sized, become damaged or the connection falls into the sump pit. Do not attempt to disassemble the PumpSpy controller or Backup Pump. There are no field serviceable parts or repair options! RISK OF EXPLOSION. -
Page 3: Installation
Inspect this unit before beginning installation. Occasionally, products are damaged during shipment. If the pump or any components are damaged, contact PumpSpy at 515.999.6935, or support@pumpspy.com. ™ The PumpSpy System requires a 12V Deep Cycle Battery with a minimum 75AMP/HR rating. AGM Battery is strongly recommended. INSTALLATION WARNING... - Page 4 3. PumpSpy will remotely activate the backup pump during system tests at least 3 times per week. ™ WARNING! PUMPSPY SYSTEM TESTS MAY OCCUR AT ANY TIME. THE BACKUP PUMP MAY CYCLE AT ANY TIME WITHOUT NOTICE. Call Tech Support: 515.999.6935...
- Page 5 SYSTEM light will ™ be green. The PumpSpy system will begin data sync and the DATA light will turn ™ BLINKING GREEN after the registration process is complete at PumpSpy Call Tech Support: 515.999.6935 © PumpSpy Technology, LLC Questions?
-
Page 6: Troubleshooting
A valid credit card is required to activate the PumpSpy Remote Monitoring Service. Your card will not be charged until the 30 day trial period expires. There is no long term commitment and you can cancel the service at any time. For terms and conditions, visit www.pumpspy.com... -
Page 7: Led States
Displayed when PumpSpy Monitoring Service initiates a system test Reading Battery Displayed when unit measures battery voltage during self test Data > Host Displayed when system sends alert or self test results to PumpSpy Host Data Valid Displayed when valid command is received from PumpSpy ALARM MUTE BUTTON •... -
Page 8: What This Warranty Covers
This warranty is not transferable and may not be assigned. This warranty shall be governed and construed under the laws of the state of Ohio. The warranty period will not be extended by any replacement or repair performed under this warranty. THIS WARRANTY IS THE EXCLUSIVE WARRANTY AND REMEDY PROVIDED BY PumpSpy ™...
